Sony STR-DE525 User Manual

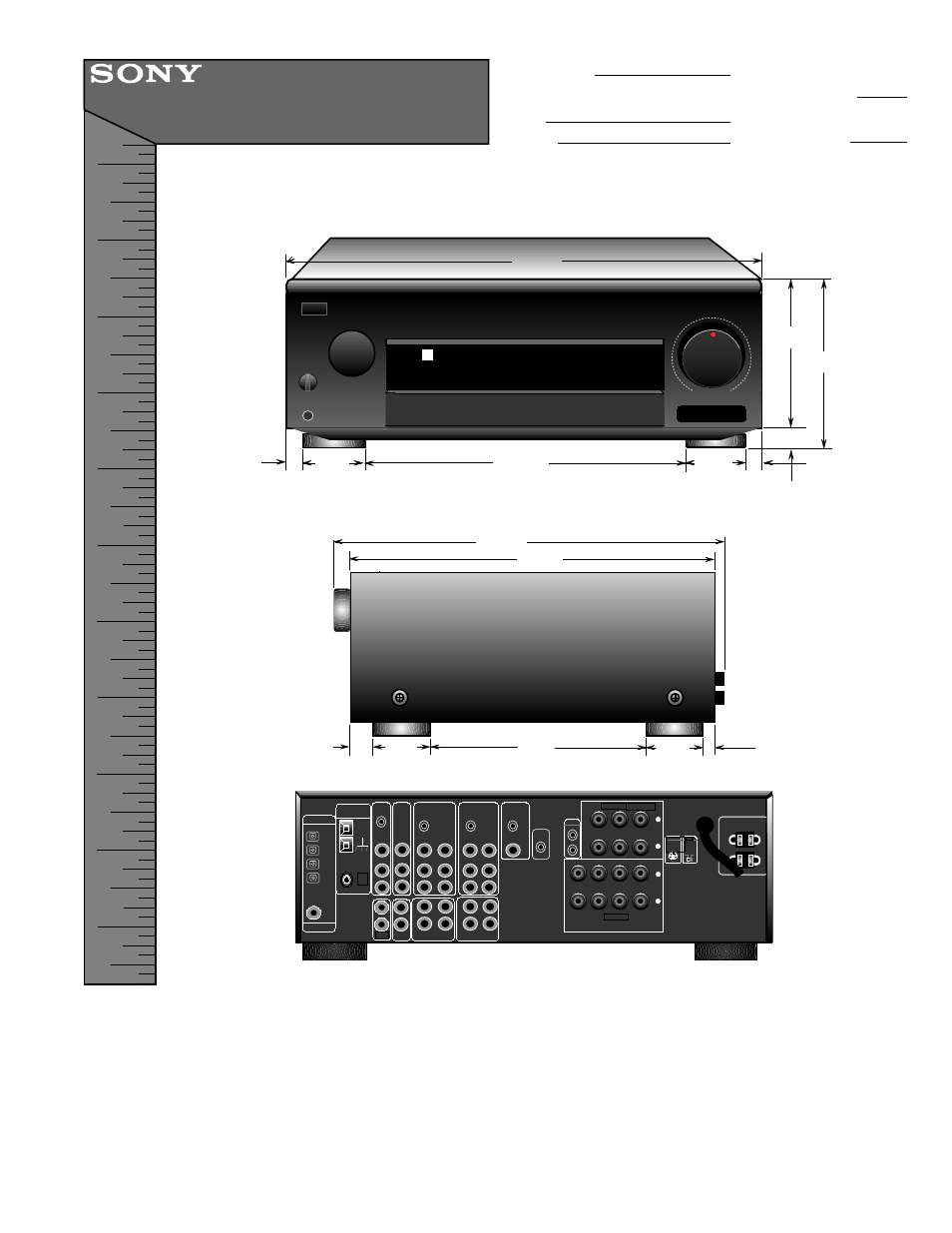

Front view side view
1/4 inch = 1 inch Scale 4:1
STR-DE525/625
825/925
DESCRIPTION:
DIMENSIONS
(WHD):
WEIGHT:
POWER
REQUIREMENTS:
POWER
CONSUMPTION:
Dolby Digital
Receiver
17" x 6 1/4" x 14 1/2"
Approx 27 lbs
120V
60H
355
Watts
Sony Electronics Inc • Consumer Integrated Systems • Park Ridge, New Jersey 07656 • FAX (201) 930-7891
Features and specifications subject to change without notice. • Non-metric weights and measurements are approximate.
NOTE:
WHERE THERE ARE CLOSE TOLERANCES INVOLVED IN CABINET BUILDING
OR APPLICATIONS WHICH REQUIRE A GREAT DEGREE OF PRECISION WE
RECOMMEND THAT THE PRODUCT ITSELF BE USED TO MAKE THE ACTUAL
MEASUREMENTS. SONY WILL NOT BE RESPONSIBLE FOR INACCURACIES
IN THE DESIGN OR MANUFACTURE OF ENCLOSURES .
FRONT VIEW
SIDE VIEW
6 1/4"
1/2"
2 "
12"
2 "
1/2"
5 3/4"
FM102.4 70MHZ A3
2 "
1"
5/8"
7 1/4"
2 "
14 1/2 "
13"
1/2"
FM102.7MHz A3
17"
R
AC CORD
AC OUTLET
ANTENNA
MONITOR
VIDEO 1
VIDEO 2
DVD
TV/DSS
CD
DAT/MD
TAPE
-
+
REAR
CENTER
DIGITAL
OPTICAL
DVD
CD
DAT
MD
S-LINK
CTRL-S
IN
CTRL-S
OUT
CTRL-S
OUT
CTRL-S
PH
VIDEO
IN
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
VIDEO
IN
VIDEO
OUT
IMP
4 8
SPEAKERS
-
+
A
B
Wireless
Rear
Speaker
FRONT
WOOFER
DIGITAL
COAXIAL
AM.
FM
COAXIAL
