9
Gettin
g
Starte
d
To Customers
Your TV can be wall-mounted using SU-WL100
Wall-Mount Bracket (sold separately).
For product protection and safety, Sony strongly
recommends that you use the Wall-Mount
Bracket designed for your TV and wall-
mounting is performed by a Sony dealer or a
licensed contractor. Do not attempt to install it
yourself. Sony is not liable for any damage or
injury caused by mishandling or improper
installation.
Please provide this installation information as well
as the instruction supplied with SU-WL100 Wall-
Mount Bracket to your installer.
To Sony Dealers and Licensed Contractors
To avoid injury and property damage, read these
instructions carefully. Periodic inspection and
maintenance is highly recommended to ensure that
TV is securely mounted.
Installing the Wall-Mount Bracket and
Mounting Hooks
1 Open Wall-Mount Bracket package and check
for all the required parts including the
instruction.
2 See Installation dimensions table to determine
the best location for wall-mounting. The wall
must be strong enough to support at least four
times the weight of the TV. Also refer to the
instruction for SU-WL100.

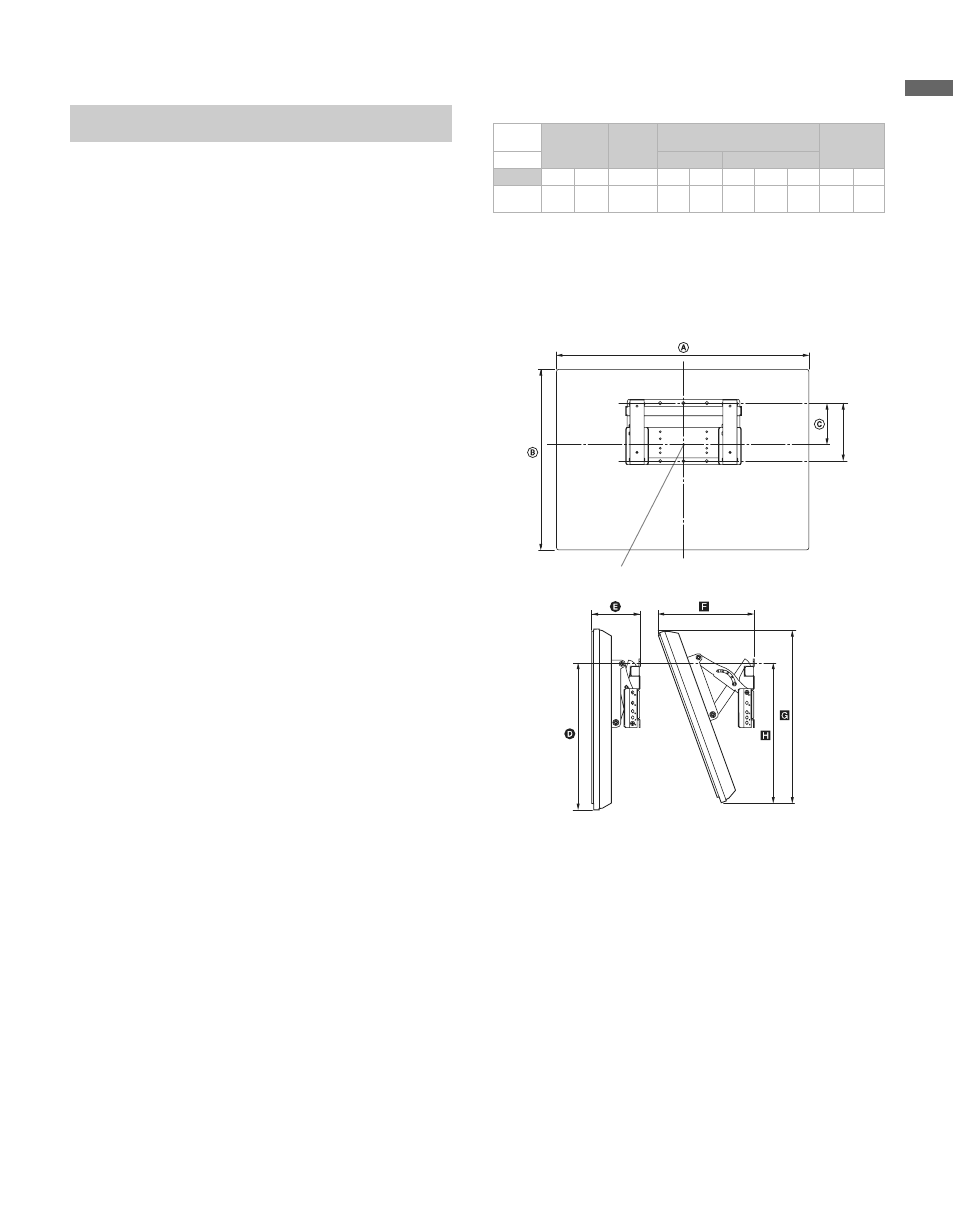

Installation dimensions table
~
• Installation dimensions may differ according to how the
TV is installed.
• The wall must be strong enough to support at least four
times the weight of the TV that you are installing.
3 Install the Base Bracket on the wall. Refer to
the instruction for SU-WL100.
4
Disconnect all cables and remove the
Subwoofer. See page 7 for details.
5 Install Mounting Hooks on the TV. See
diagrams and table for Screw and Hook
locations.
Installing the Wall-Mount Bracket
Unit: inches
(mm) TV Dimensions Screen
center
dimensions
Length for each mounting angle Weight
Angle (0°) Angle (20°)
TV Model A B C D E F G H TV ×4
KDL-
26N4000 30 3 / 4
(778)
18 1 / 2
(468)
3 3 / 8
(83)
13 1 / 2
(341)
6 3 / 8
(160)
10 3 / 4
(272)
18
(454)
13 3 / 4
(347)
24 lb.
(10.5 kg)
96 lb.
(42 kg)
5 (125)
Center line of the screen when installed on the wall
(Continued)
