Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)

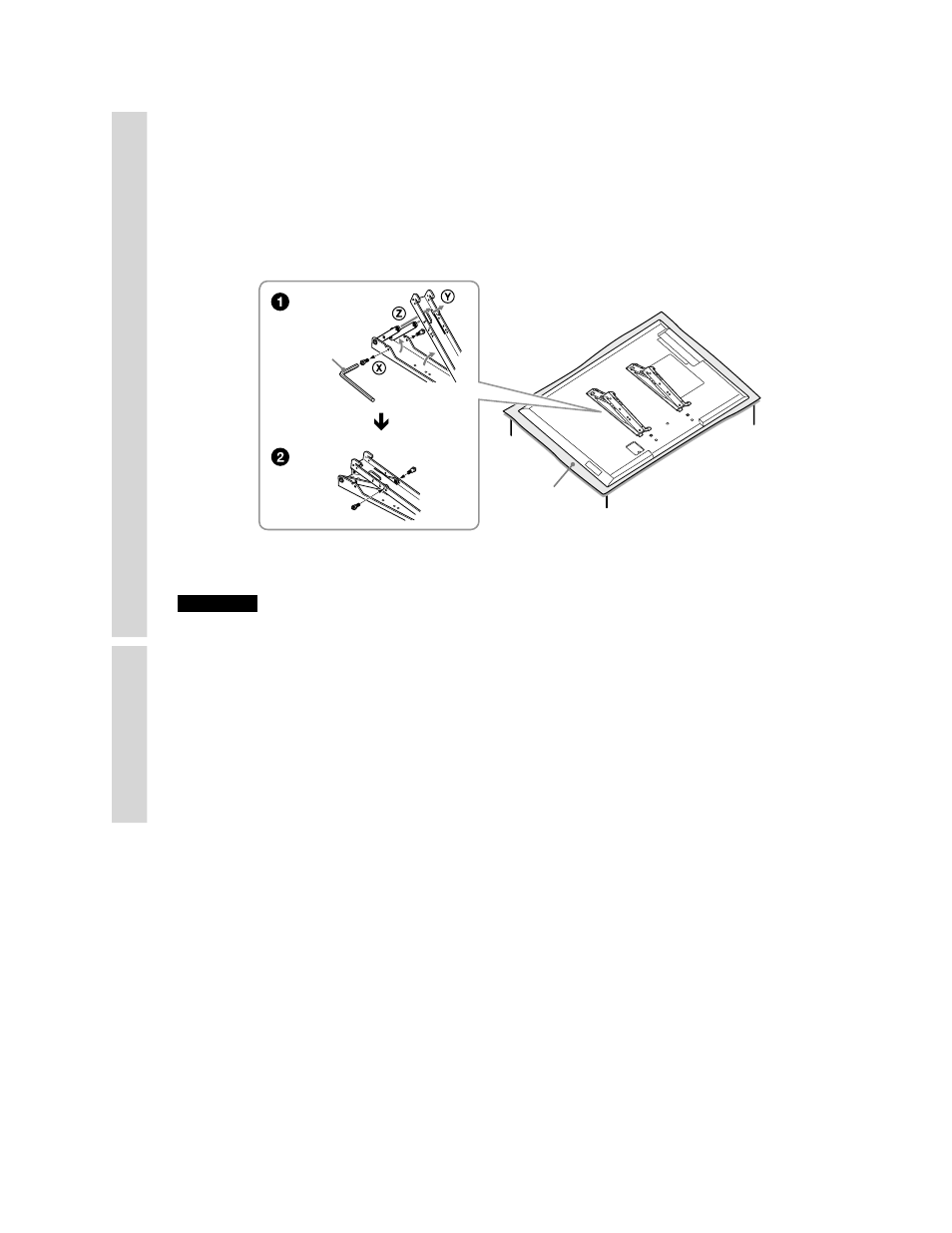

7 Adjust the angle of the Mounting Hook using the hexagon wrench supplied
with the Wall-Mount Bracket.
When installing the TV parallel to the wall (0 degrees), adjustment of the Mounting Hook angle
(procedures  and  below) is not necessary. Make sure that each arm base X is screwed in securely.
 Remove the two screws from the arm base X of the Mounting Hook. Choose the holes
corresponding to the desired angle (5, 0, 5 or 0 degrees).
 Adjust the angles of the top Y and bottom Z arm to fit the corresponding hole, and firmly
secure each arm using the two screws removed in the previous procedure .
Soft cloth
Hexagon
wrench
✍
• Be sure to adjust the right and left arms to the same angle.
• Make sure that the two arm bases are screwed in securely.
CAUTION
Be careful not to pinch your fingers when adjusting the angle of the Mounting Hook.
8 Install the TV on the wall.
Refer to the Instructions for SU-WL500.
Make sure that you carry out this task with at least two or three people.
Do not attempt to lift the TV by yourself.
For holding and carrying the TV, refer to your TV’s instructions.
✍
• When you put the TV back on the stand, reverse the above steps.
• Remove the screws or install the Mounting Bracket on a stable and level surface.
