Additional Information for Using Sony Wall-Mount Bracket (SU-WL500)

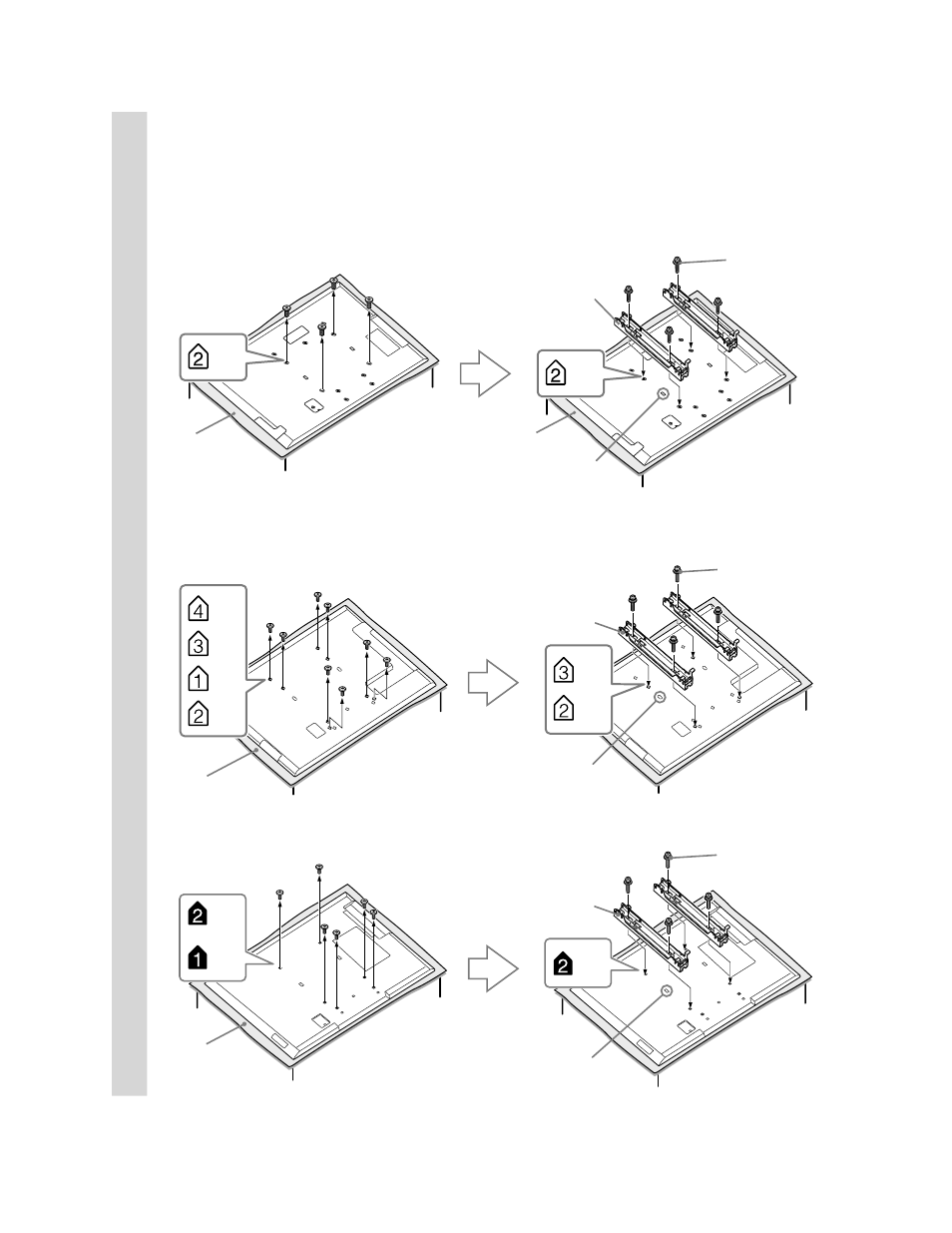

6 Secure the Mounting Hooks to the rear of the TV.
Determine the screw locations and secure the Mounting Hooks to the rear of the TV. Refer to
the “Screw and Hook Locations Diagram/Table” (page 5).
* In the actual model names, the “” indicates numbers and/or characters specific to each model.
For XBR-65HX92 *, KDL-65HX72*
Ч 4
Ч 4
Screw (+PSW6 × 16)
Mounting Hook
Soft cloth Soft cloth
Square hole
Ч 2
Ч 2
Ч 2
Ч 2
For KDL-60NX72 *, KDL-55NX72*, KDL-46NX72*, KDL-40NX72*,
XBR-55HX92 *, XBR-46HX92*, KDL-55HX82*, KDL-46HX82*
Ч 2
Ч 2
Screw (+PSW6 × 16)
Mounting Hook
Square hole
Soft cloth
For KDL-60EX72 *, 55EX72*, 55EX62*
× 4
Screw (+PSW6 × 16)
Mounting Hook
Square hole
Ч 2
Ч 4
Soft cloth
