Connecting a DVD Player with A/V Connectors
1
Using audio cables, connect the DVD player’s audio OUT jacks to
the TV’s audio IN jacks.
2
Using an S-VIDEO cable, connect the DVD player’s S-VIDEO
jack to the TV’s S-VIDEO jack.
✍
If your DVD player has video component output connectors: for best picture quality use
the connection described on page 15.

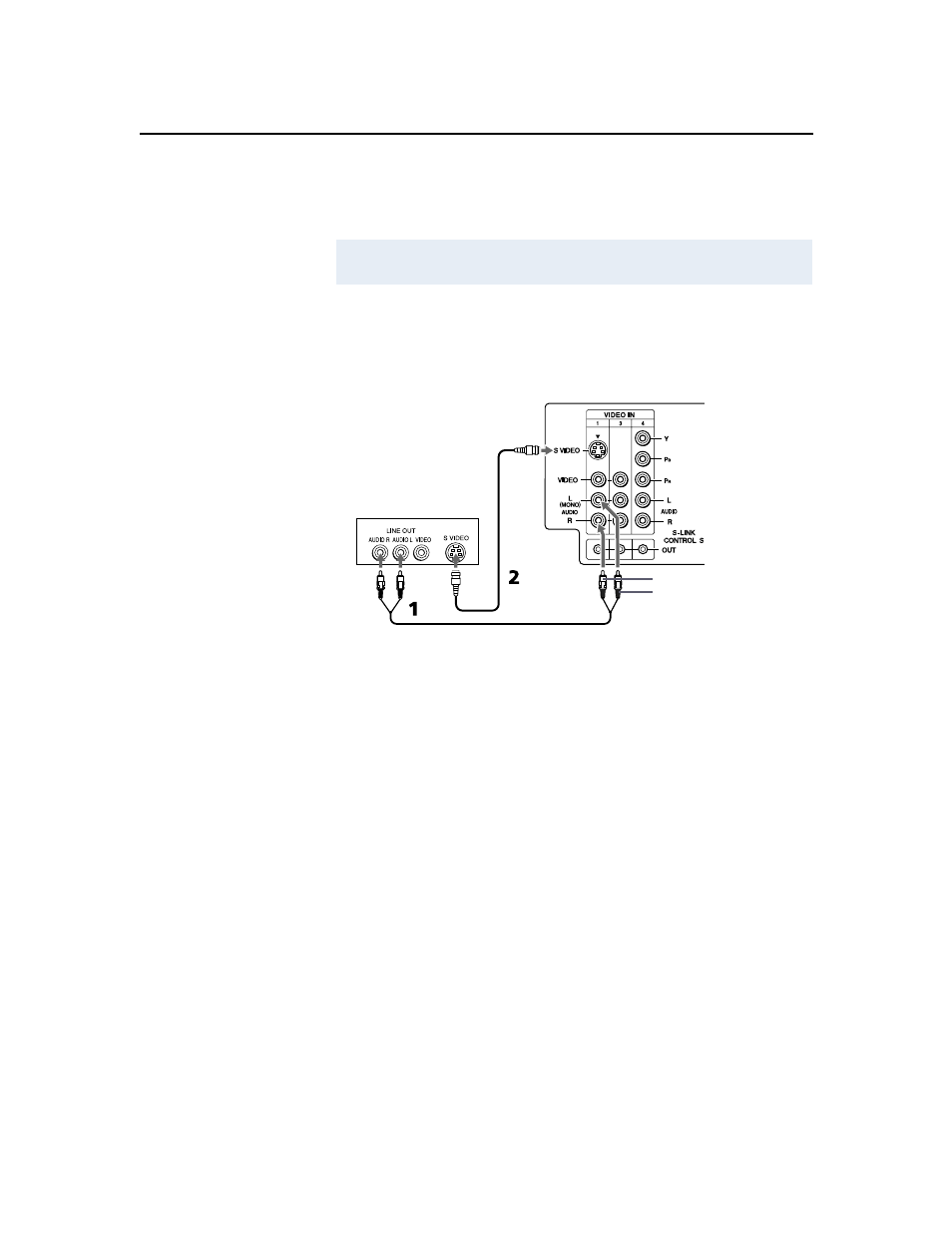

Audio cable
DVD player
S-VIDEO
cable
AUDIO-R (red)
AUDIO-L (white)
