Adder Technology ADDERLINK X2 User Manual
Page 10
9
Local speaker connection
The Gold variant of the LOCAL module allows a pair of speakers to be
connected and used in the vicinity of the host system.
Note: A microphone port is
provided only at the REMOTE
module. The speaker and
microphone ports are absent
from the Silver variant of the X2
Dual Access product.
1 Connect the speaker plug
to the socket labelled
.

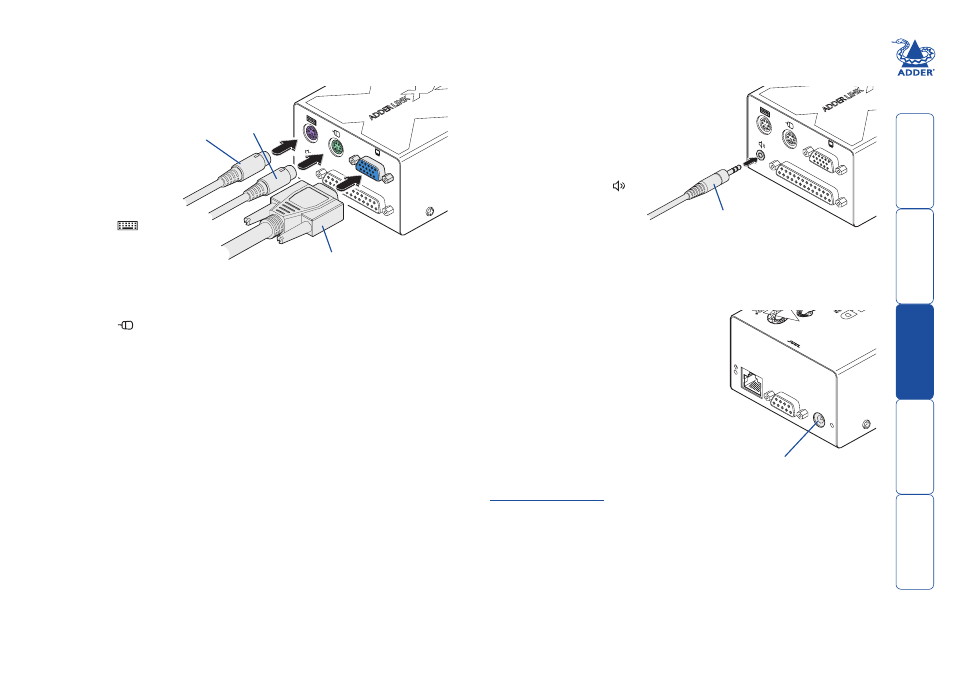

Local keyboard, video and mouse connections
The LOCAL module provides extra ports to accommodate a keyboard, video
monitor and mouse in the vicinity of the host system.
1 Attach the lead
from the monitor
to the blue D-type
socket labelled
VIDEO OUT
on the
LOCAL module.
2 Connect the
keyboard lead
to the purple
mini-DIN socket
labelled
on the LOCAL
module.
3 Insert the
keyboard lead
into the green
mini-DIN socket
labelled
on the LOCAL
module.
LO
www
.adder
.com
CPU / KVM SWITCH
VIDEO OUT
Connection
from video
monitor
Connection
from
keyboard
Connection
from mouse
LOCAL
CPU / KVM SWITCH
VIDEO OUT
LOCAL
Speaker
connection
TO REMO
TE
PO
WER
LOCAL
Optional power connector
- not required unless the
host system keyboard
connection is not used
Optional power connection
The LOCAL module has a power socket,
however, as power is derived from the
host system keyboard connection, it is
generally not necessary to use a power
supply unit.
In situations where a keyboard
connection to the host system is
not used, the LOCAL module will
require a separate power supply unit
of the same type as supplied for use
with the REMOTE module. Separate
power supply units are available from
Adder Technology Limited direct
(
om your
local supplier - part number: PSU-IEC-
5VDC.
