Introduction

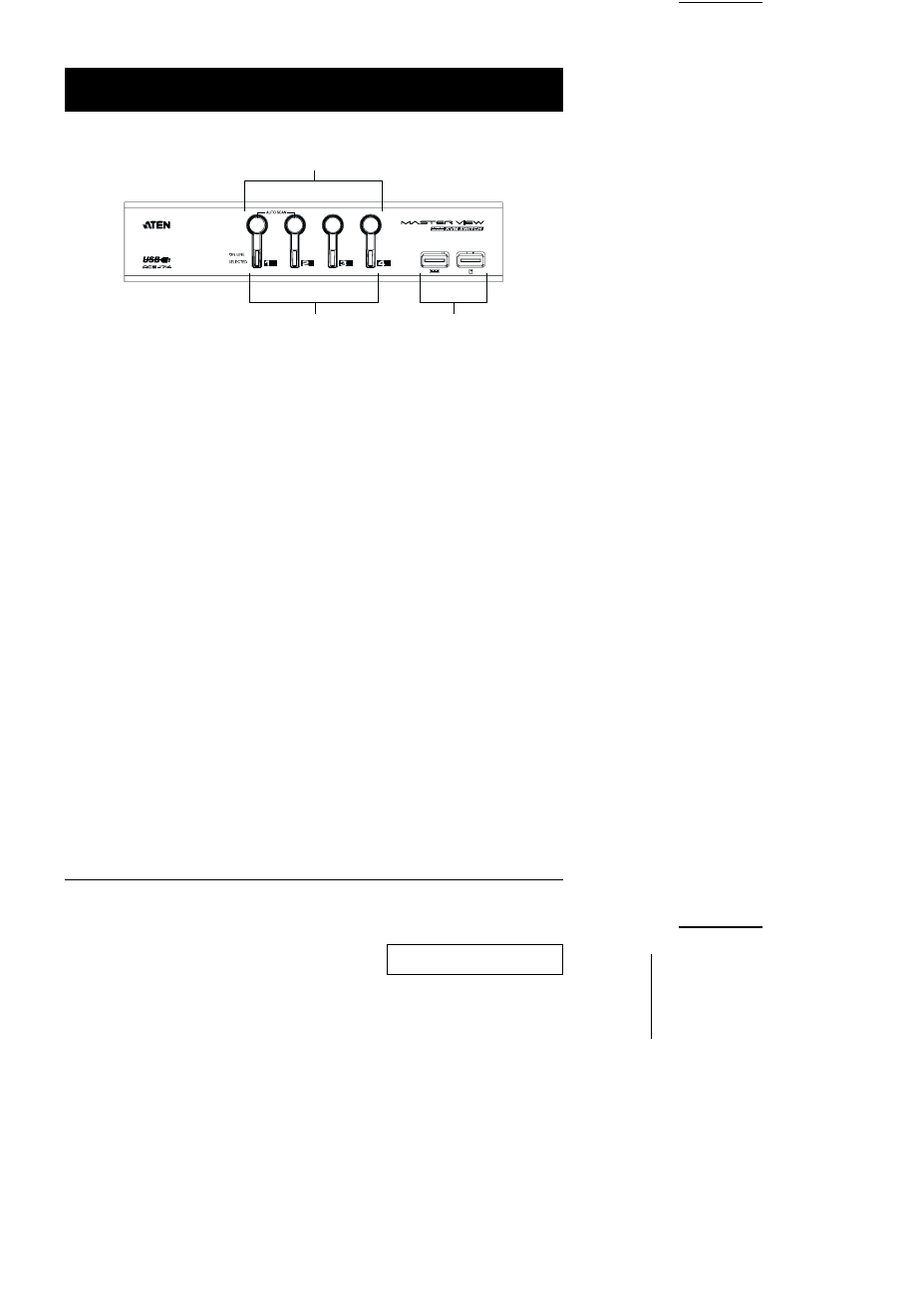

Front View*
1. Port Selection Switches
M Press a switch to access the computer attached to the corresponding port.
M Pressing Buttons 1 and 2 simultaneously for 2 seconds starts Auto Scan
Mode. See p. 14 for details.
2. Port LEDs
The Port LEDs are built into the Port Selection Switches. The upper ones are
the On Line LEDs; the lower ones are the Selected Port LEDs:
On Line: Lights ORANGE to indicate that the computer attached to the
corresponding port is up and running.
Selected: Lights GREEN to indicate the currently selected port. The LED is
steady under normal conditions, but flashes when its port is
accessed under Auto Scan mode.
3. USB Ports
Your USB keyboard and USB mouse plug in here.
* The front view diagram is for the ACS-1714. The layout of the ACS-1712 is
exactly the same, except that it only has two port selection switches.
1
2 3
2001-07-09
4 ACS-1712 / ACS-1714 User Manual
