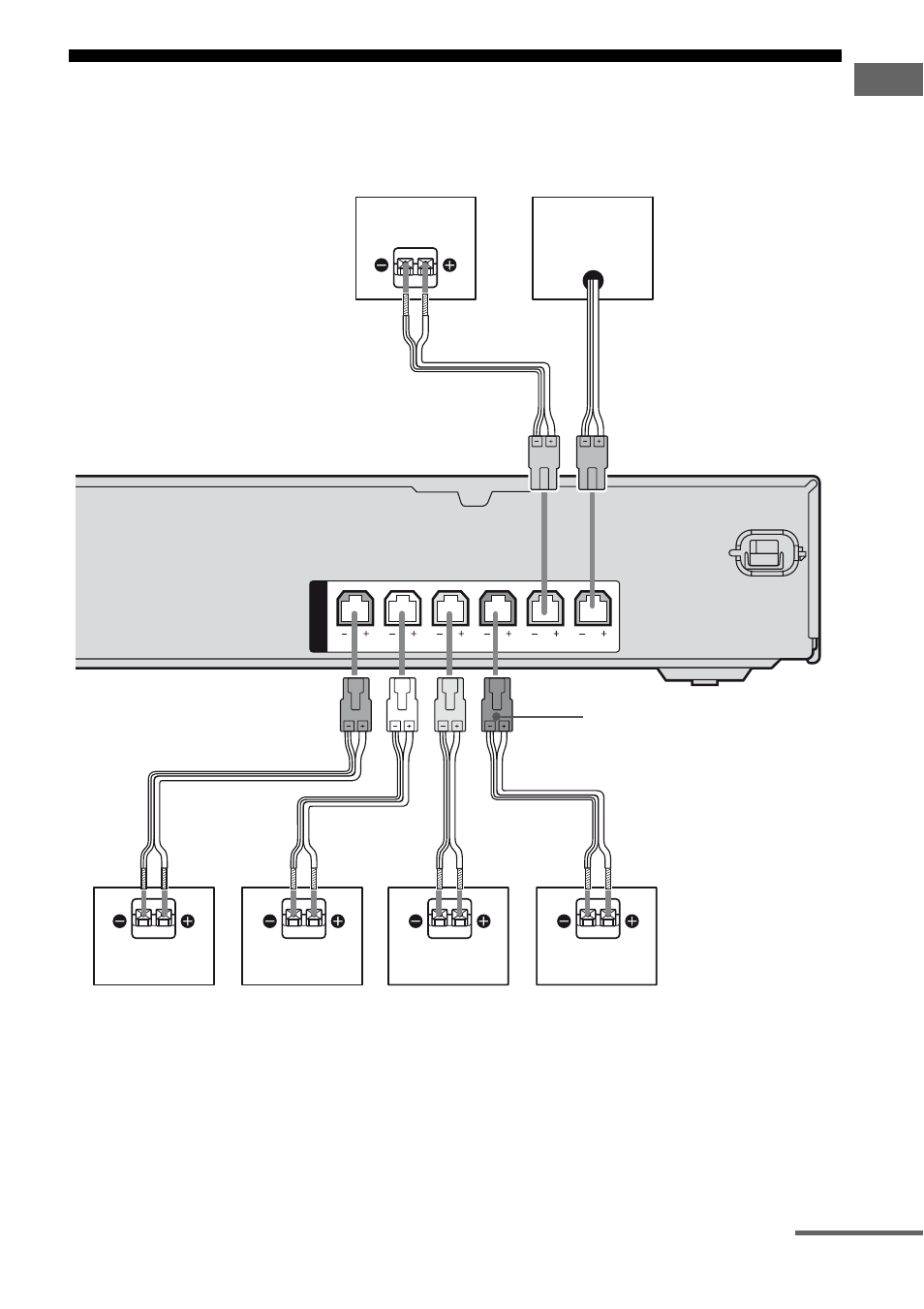

2: Connecting the speakers
Before connecting the cords, be sure to
disconnect the AC power cord (mains lead).
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSubwoofer
SPEAKERS
CENTER
SUBWOOFER
FRONT L
SUR R
SUR L
FRONT R
D
E
B
A
Speaker cord (supplied)
F
A
C
A
A
A
Connector
continued
