VPCEB Series Optical Disk Drive
Replacement Instructions
P/N 989201349 Rev. C 3/3

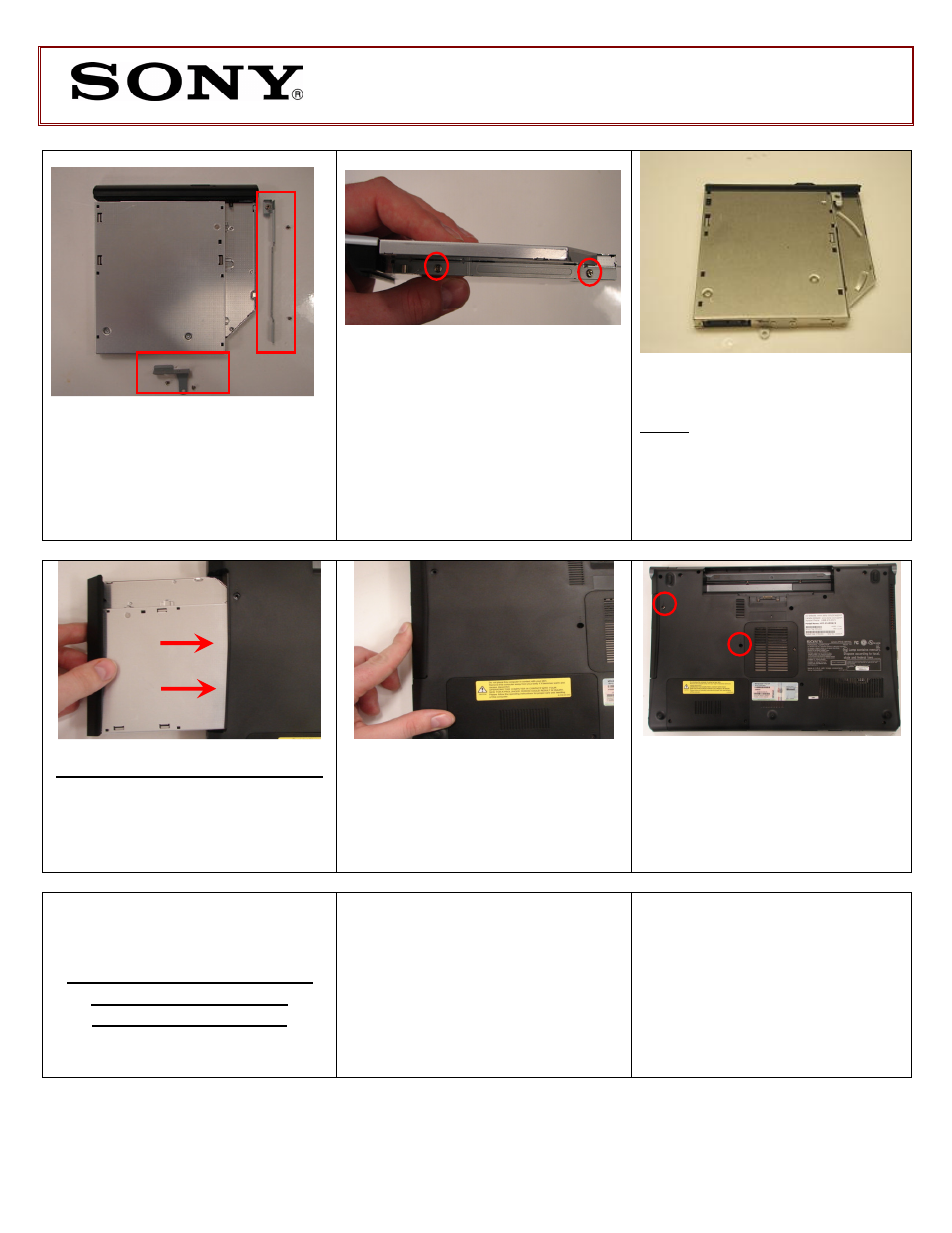

Step 12. Position the new ODD (Label
side down) and identify the correct
bracket with the corresponding ODD
side (as shown). Take note of the
different shapes for each bracket and
the proper alignment of the screw holes.
Step 13. Using the ODD Screws, install
the ODD Brackets onto the new ODD.
NOTE: All brackets should sit flush.
The stamped letters located on the
brackets should all be facing the
same direction.
ODD Installation (Steps 14-16)
Step 14. Align the ODD assembly
properly (label side down) and slide into
the computer.
Step 15. Make sure the new ODD is
seated flush on the edge of the
computer.
Step 16. Reinstall the two (2) ODD
Bay screws to secure the ODD Drive
Bay.
Step 17. Reinstall the battery pack and
AC Adaptor.
Return the old ODD to Sony
following the included
shipping instructions.
