21 GB
Connecting the Projector
S
et
tin
g U
p an
d Pr
oj
ect
ing

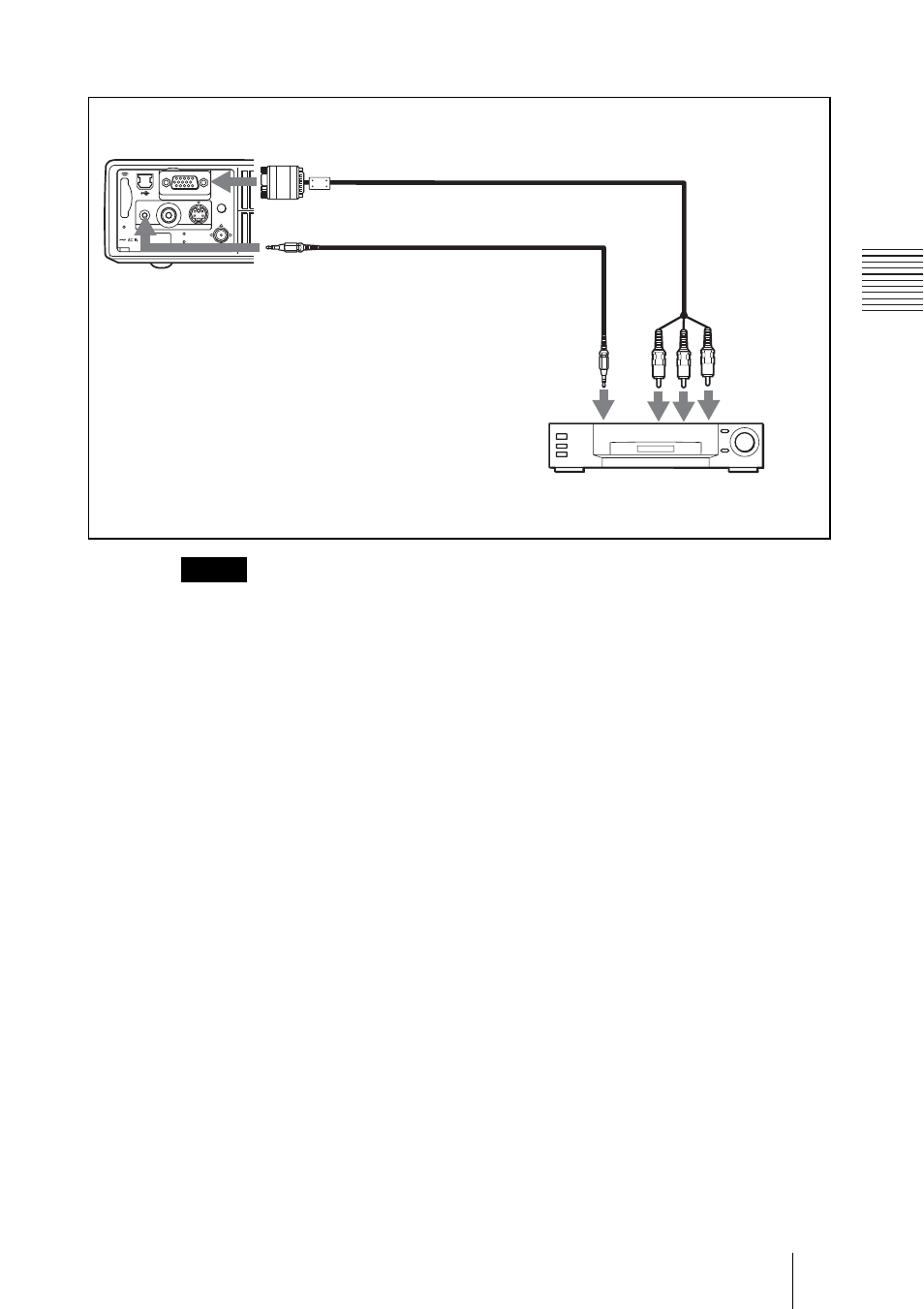

To connect a 15k RGB/Component equipment
• Set the aspect ratio using “Wide Mode” in the INPUT SETTING menu according to
the input signal.
• When you connect the unit to 15k RGB or component video equipment, select video
GBR or component with the “Input-A Signal Sel.” setting in the SET SETTING
menu.
• Use the composite sync signal when you input the external sync signal from 15k
RGB/component equipment.
Notes
AUDIO VIDEO
POWER
SAVING
MENU
S VIDEO
TEMP/FAN
LAMP/COVER
INPUT A
PUSH
ENTER PRO
ACCESS
Left side
Stereo audio connecting cable
(not supplied)
a)
SMF-402 Signal Cable
(not supplied)
HD D-sub 15-pin (male)
↔ 3 × phono jack
to audio
output
15k RGB/Component equipment
to RGB/
component
output
a) Use a no-resistance cable.
