ADTRAN NetVanta 7100 - Manual

The NetVanta ® 7100 is an integrated IP data
networking and telephony solution designed
to simplify Voice over IP (VoIP) and IP
telephony for business locations of up to 50
employees. This one-box solution combines
multiple data and voice functions into a single,
affordable platform. The ADTRAN
® NetVanta
7100 IP Communication Platform includes
a router, 24 port Power over Ethernet (PoE)
switch, firewall, Virtual Private Network (VPN),
Wireless LAN controller, SIP Gateway, and
business-class phone system with integrated
voice mail and automated attendant.
The NetVanta 7100 IP PBX functionality
includes SIP-based telephony features, voice
mail (12 hours, eight ports), multilevel auto
attendant, caller ID name/number, classes of
service, trunk groups, music-on-hold and over-
head paging. Additional call options include
call coverage lists, forwarding of calls to a cell
phone and email notification of voice mail. The
NetVanta 7100 also provides enhanced commu-
nications productivity by enabling voicemail
messages to be sent as .WAV files to email.
Shared Line Appearance (SLA) and Busy
Lamp Field/Direct Station Select (DSS) are
popular key system functions and are also
supported in the NetVanta 7100. SLA enables
one or more lines to appear on multiple phones
within the system. For example, trunk lines
such as Line 1, Line 2 and Line 3 could appear
on each phone so users can “pick up Line 1,”
or an incoming 1-800 line could appear on all
phones as the sales line. BLF/DSS provides a
visual indication of the status of phones
configured in the system with a specific button
to directly connect to stations.
The NetVanta 7100 supports SIP trunking
to dynamically combine voice and data across
a single SIP link to the service provider. The
NetVanta 7100 also supports multi-site SIP
networking for linking sites together to provide
direct dial between sites and reduce inter-office
communications costs.

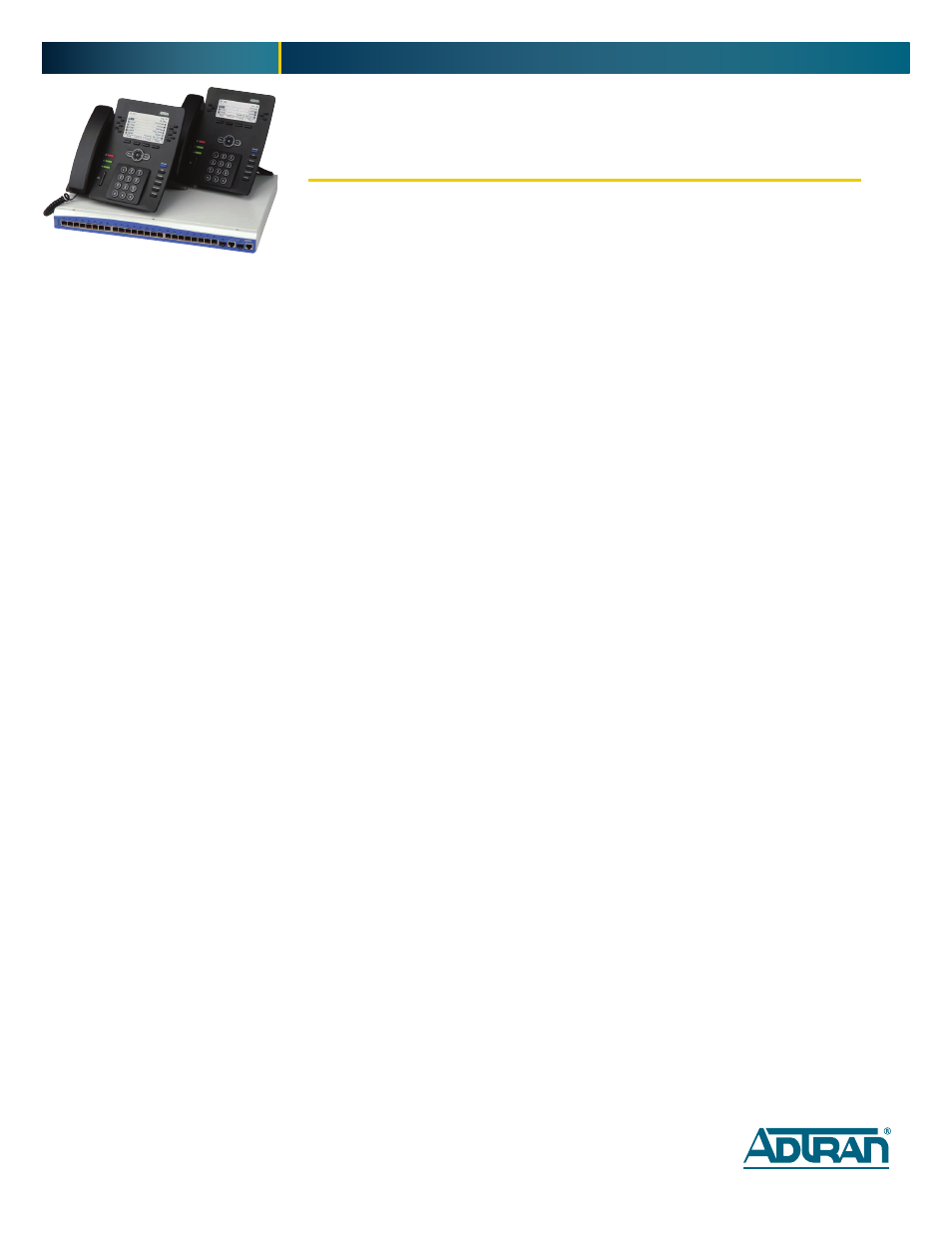

NetVanta 7100
IP Communication Platform
The NetVanta 7100 is powered by the ADTRAN
Operating System (AOS), and integrates the
functionality of ADTRAN’s highly successful
NetVanta switches and routers. Data networking
features include a stateful inspection and
SIP-aware firewall, IP router including DHCP
client/server, multiple routing protocols and
Layer 3 QoS. The integral switch provides
24 powered (802.3af) 10/100 Ethernet ports,
with 802.1Q VLANs, 802.1p Class of Service,
and Voice Quality Monitoring (VQM) making
the system fully-ready and ideal for VoIP
applications.
The NetVanta 7100 chassis provides two
analog trunk and station interfaces and two
expansion slots. For additional trunk and station
connectivity, the NetVanta 7100 offers several
Voice Interface Modules (VIMs). These include
a four-port analog (FXO) trunk module, TI/PRI
trunk module which supports voice or inte-
grated voice and data, and a four-port analog
(FXS) station module. A combination module
which provides two analog stations and two
analog trunks is also available.
A dual IP and TDM backplane architecture
supports both IP and analog devices to eliminate
common performance problems associated
with converting TDM analog devices to IP.
Fax and modem devices connect directly to
the NetVanta 7100 and achieve full-rate
performance across the PSTN.
A Graphical User Interface (GUI) Web server
provides easy and secure system setup and
management from a Web browser. Each user
also has access to a personal phone Web page
to manage their phone.
The NetVanta 7100 simplifies the installation
and support of a converged VoIP network by
combining multiple product functions into
a single, flexible system.
Product Features
■
Supports SIP trunking
■
Supports SIP multisite
networking
■
Integrated switch, router, IP PBX
■
IP PBX supports up to
50 SIP stations
■
Supports ADTRAN IP 706/712
and certified Polycom ® phones
■
Supports PBX and key
system modes
■
Transfer voicemail-to-email
■
Supports Source and ANI Based
Routing (SABR)
■
SIP/PSTN Gateway
■
Voice mail (12 hours, eight ports)
■
Multilevel auto attendant
■
Shared Line Appearance (SLA)
■
Busy Lamp Field/Direct Station
Select (BLF/DSS)
■
Dial by name directory
■
DHCP server
■
System scheduler
■
Option Modules:
❑
Four port analog trunk
❑
Four port analog station
❑
Analog two trunk/two station
❑
T1/PRI
■
Feature-rich IP router, firewall,
and VPN
■
SIP-aware firewall
■
URL filtering
■
Wi-Fi ® access controller for
NetVanta wireless access
points (eight)
■
Voice Quality Monitoring (VQM),
Mean Opinion Score (MOS)
reporting
■
Music-on-hold input,
paging output, door relay
■
Graphical User Interface (GUI)
■
Industry-leading North American
five-year warranty
