Adp-40 analog door phone, Product features, Weather resistant entry way phone

background image

Call

Door
Phone

Door
Latch

NetVanta 7100

SLOT1
SLOT2

STAT

NetVanta 7100

G1

G2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

Power over Eth

ernet

Door Relay

FXS

Phone or
Ring Group

The ADTRAN

®

ADP-40 is an analog speaker-

phone primarily used for entry applications
such as door or gate communication, business
delivery entrances, and residential, commer-
cial, or industrial door security.
The ADP-40
complements the NetVanta 7000 line by
providing a rugged communication endpoint
to any entry way. Once a person’s identity is
announced through the door phone, a phone
user enters a special code which allows the
door to open.

The ADP-40 offers a weather-resistant

design that is easy to install in new or existing
construction. It fits flush in any single gang
electrical box and receives power directly
from the telephone line. With weather and
vandal resistant features that include an 18-
guage stainless steel faceplate, Mylar speaker,
hex drive mounting screws, a stainless steel
speaker screen, and gaskets for the faceplate,
microphone, and speaker, the ADP-40 can be
installed inside or outside.

This full featured entry phone supports

auto answer to enable remote communica-
tions of the area immediately around the
speakerphone, intelligent call progress
detection for automatic hang-up when a
call is completed, and microphone and
speaker volume controls.

ADP-40 Analog Door Phone

Weather Resistant Entry Way Phone

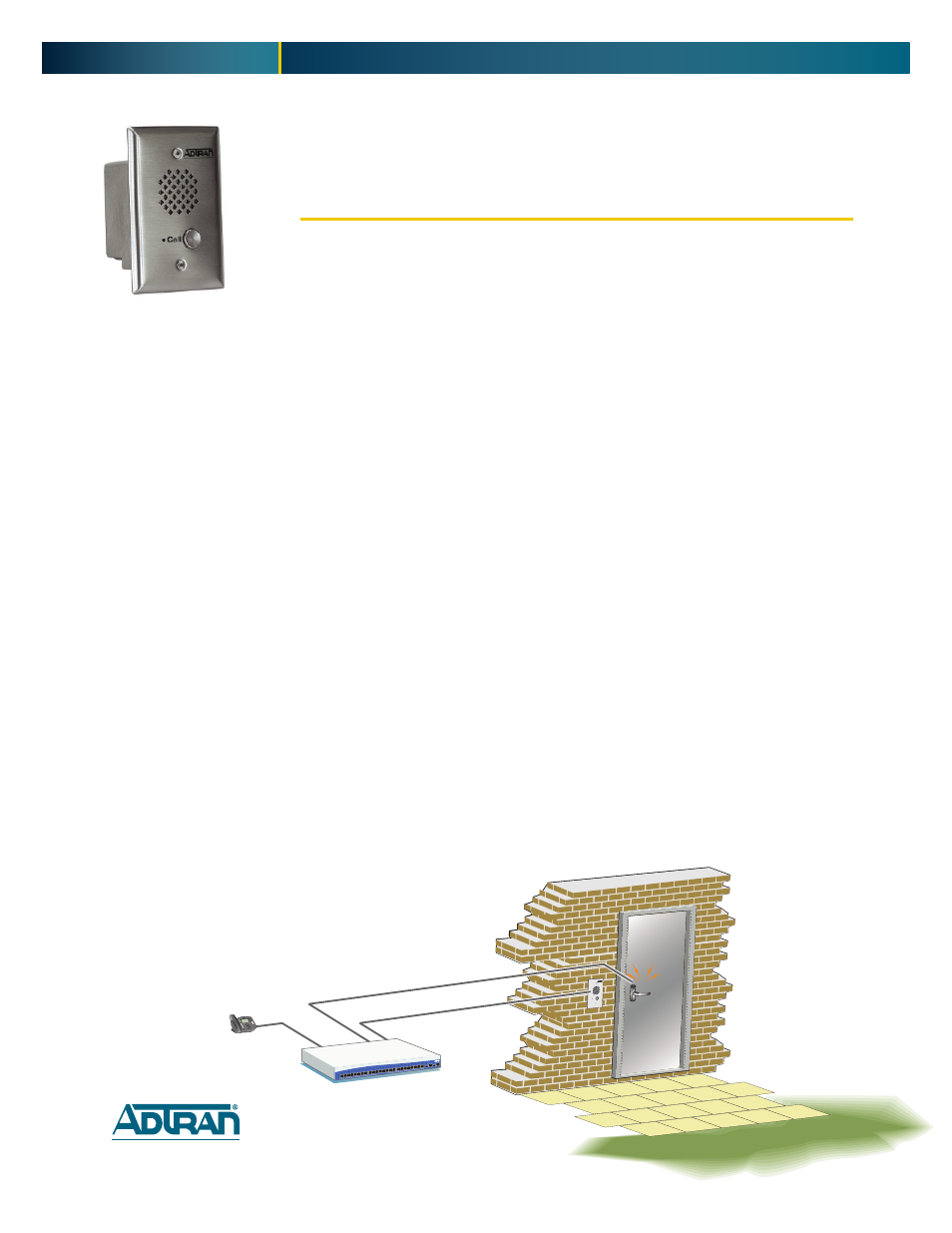

The ADP-40 conveniently connects directly

to one of the analog station (FXS) ports on
the NetVanta 7100. The user account for the
station port can be configured as a hotline
phone to allow the ADP-40 to call a specific
extension or a ring group when the Call
button is pressed. Once off hook, a phone
user dials a code that controls the relay latch
to open the door.

Applications:

The Door Phone, when used with the door
relay on the NetVanta 7100, offers a conve-
nient solution for customers that need:

• Door or gate communication

• Residential, commercial and industrial

door security

• Business delivery entrances

• Communication with delivery and

employee entrances

Product Features

Attactive, brushed stainless-

steel faceplate

Compact size: mounts flush in

any single gang electrical box

Hands free communications

Monitor mode: auto answer

enables the caller to remotely
monitor the area around the
speaker phone

Weather Resistant:

Mylar Speaker

Faceplate, microphone,

and Speaker Gaskets

Sealed Push Button

Self draining microphone

mount

Vandal Resistant:

18-guage Stainless-steel

faceplate

Stainless-steel push button

and speaker screen

Hex drive mounting screws

Power: receives power from

the telephone line

Microphone and speaker

volume controls
