Error Messages:
Display Error Description
A short circuit has been detected on the programming track.
Check relevant connections and/or decoder installation in the
locomotive.
No value was found during the readout of a Register, or no
response was received after a value was entered. However, this
does not necessarily mean the decoder did not accept the new
values. Please try using the new address before attempting to
program again. You should also check if the locomotive is on
the right programming track and/or the installation of the
decoder.
System Settings
The following system parameters can be edited or viewed:
• Version number of the Commander software (view only).
• Service number of the Commander. You will be asked to identify this
number if you call in for assistance with your Commander.
• If your Commander is set to function as a master or as a slave (also called
an XpressNET unit).
1. Press both and buttons at the same time to access the Menu system.
Use the "+" or "-" buttons to scroll to the System menu.

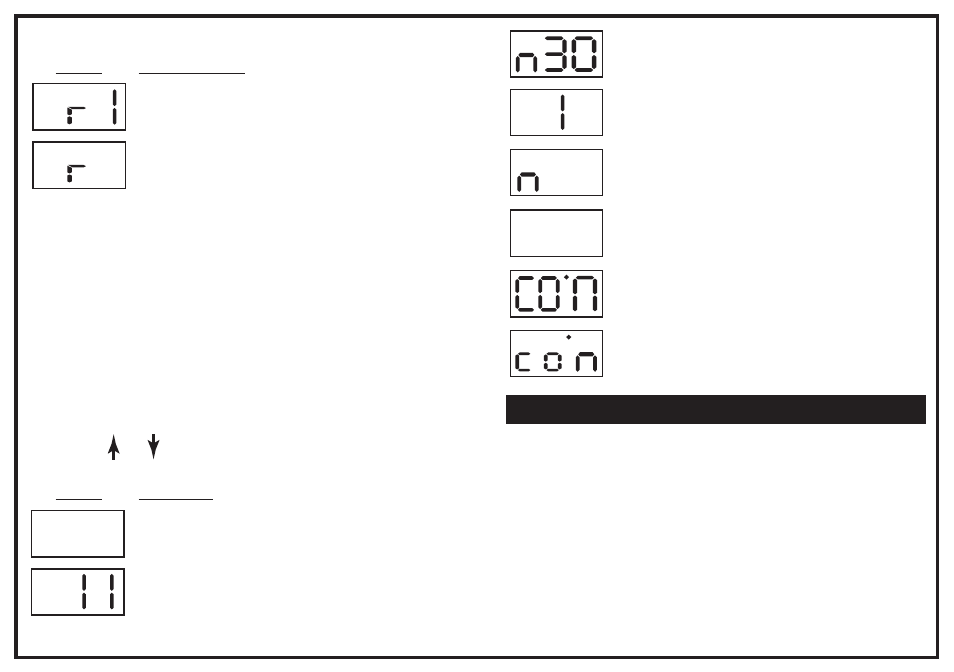

Display What To Do
Press Enter to select the System mode setting.
The first system setting (shown to left) is the Commander
software version number setting option.
Press Enter to view the version number. You cannot
change this value; it is read-only. Press Exit to go back to
System menu.
Press +/- buttons until you see the service number system
setting option (shown on left).
Press Enter to view the service number. You cannot
change this value; it is read-only. Press Exit to go back to the
System menu.
Press "+" or "-" button until you see the Master/Slave system
setting (shown on left). Press Enter to select setting options.
Press "+" or "-" button to scroll through the options. To make
your Commander operate in master mode, press Enter when
you see the display on left.
To have your Commander operate in slave mode, press Enter
when you see display on left. Press Exit to leave the menu.
Adding Additional Throttles
If you would like to have more than one operator on your layout, you may
connect up to five additional Commanders or handhelds that conform to
XpressNET standards to your original unit. When you have more than one
Commander, one becomes the "master" and the other(s) become "slaves." The
master provides track power, the slaves do not. Any Commander (master or
slave) that is connected to a Generator may be used for programming. In the
case of a slave that is used for programming, it must be connected to a pro-
gramming track via output terminals P & Q and must be connected to a
15 16
