Avet Reels LX 6.0 User Manual
Models lx 6.0 parts list

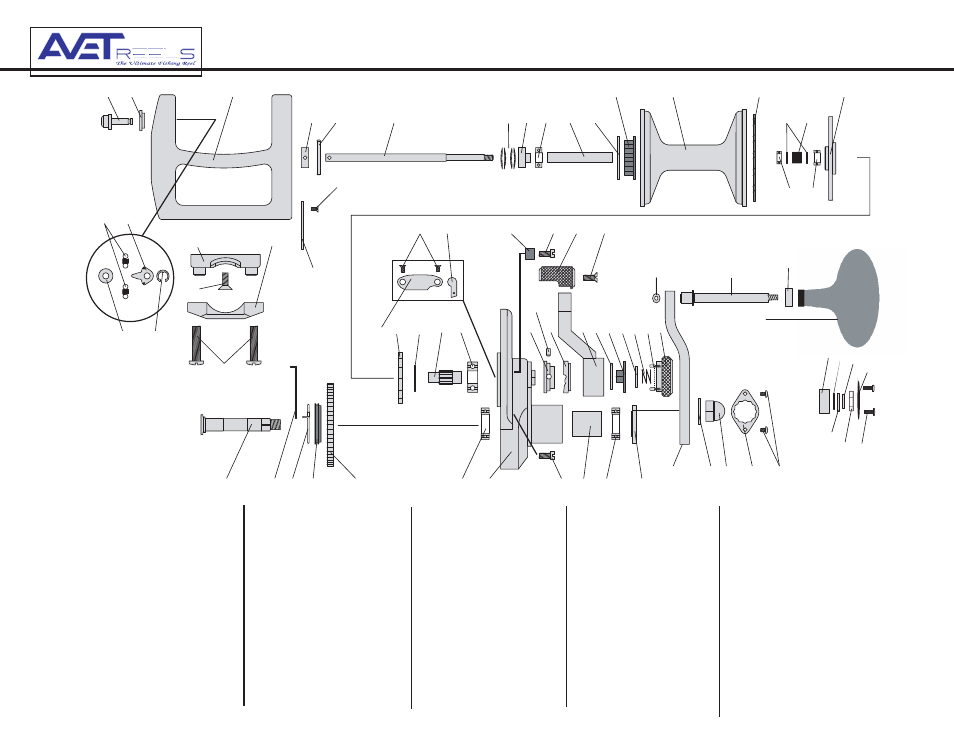

Models LX 6.0 Parts List
(rev. 5-08)
1 - Main Housing LX6.0-001
2 - Gear cover
LX6.0-002
3 - Cover Screw (2 req.)
LX6.0-003
4 - Spool Shaft
LX6.0-004
4A-Shaft Shoulder
LX6.0-004A
4B-Shaft Pin
LX6.0-004B
5 - Belleville Washers (4 req.)
LX6.0-005
6 - Pusher Bushing
LX6.0-006
7 - Spool Bearing
LX6.0-007
8 - Spool Tube
LX6.0-008
9 - Clicker Gear Retainer Ring
LX6.0-009
10- Clicker Gear
LX6.0-010
11- Spool
LX6.0-011
12- Brake Pad LX6.0-012
14- Spool Bearing
LX6.0-014
15 - Spool Spring Washer (2 req.)
LX6.0-015
16 - Spool Spring
LX6.0-016
17 - Brake Bearing
LX6.0-017
18 - Brake Disk
LX6.0-018
20 - Antireverse Gear
LX6.0-020
21 - Disk Ring
LX6.0-021
22 - Pinion Gear
LX6.0-022
23 - Pinion Bearing
LX6.0-023
24 - Drive Shaft
LX6.0-024
25 - Connection Arm
LX6.0-025
26 - Friction Ring
LX6.0-026
27 - Friction Washer
LX6.0-027
28 - Drive Gear
LX6.0-028
29 - Drive Shaft Bearing (2 req.)
LX6.0-029
30 - End Housing
LX6.0-030
31 - Dog
LX6.0-031
32 - Dog Cover Screw (2 req.)
LX6.0-032
33 - Dog Cover
LX6.0-033
34 - Stop Pin (2 req.)
LX6.0-034
35 - Pin Screw (2 req.)
LX6.0-035
36 - Handle Knob
LX6.0-036
37 - Knob Screw
LX6.0-037
38 - End Housing Screw (3 req.)
LX6.0-038
39 - Drive Shaft Tube
LX6.0-039
40 - Drive Shaft Washer
LX6.0-040
41 - Male Cam
LX6.0-041
42 - Male Cam Pin (2 req.)
LX6.0-042
43 - Female Cam
LX6.0-043
44 - Lever Arm
LX6.0-044
45 - Teflon Washer (2 req.)
LX6.0-045
46- Drive Washer LX6.0-046
47- Preset Washer LX6.0-047
48- Preset Sprin
LX6.0-048
49- Preset Knob
LX6.0-049
50- Crank Arm LX6.0-050
51- Crank Arm Washer LX6.0-051
52- Acorn Nut
LX6.0-052
53- Locking Plate
LX6.0-053
54- Locking Plate Screws (2 req.) LX6.0-054
55A- Handle Shaft Washer LX6.0-055A
55- Handle Knob Shaft LX6.0-055
56- Handle Shaft Bearing LX6.0. -056
57- Handle Knob
LX6.0-057
58- Knob Bearing
LX6.0-058
60- Spring Washer LX6.0-060
61- Lock Washer LX6.0-061
62- Nut LX6.0-062
63- Knob Cap LX6.0-063
64- Knob Cap Screws (2 req.) LX6.0-064
65- Clicker Pin LX6.0-065
66- Pin Support LX6.0-066
67- Pin Washer LX6.0-067
68- Clicker Spring (2 req.)
LX6.0
-068
69- Clicker Arm LX6.0-069
70- Pin E Clip LX6.0-070
71- Reel Foot LX6.0-071
72- Reel Foot Screw LX6.0-072
73- Clamp LX6.0-073
74- Clamp Screws (2 req.) LX6.0-074
50
51 52
53
54
49A- Preset Knob Detent
LX6.0-049A
59- Knob Washer (optional) LX6.0-059
66
65
1
4
5
6
7
10
11
12
16
14
15
67
68
69
70
4A
4B
38
37
36
35
34
9
8
17
18
27
28
20
22 23
41
26
25
24
29
30
31
32
33
39
29
43
40
42
44
49
48
47
46
2
3
55
56
57
58 59
61
60
62
63
64
71
72
73
74
21
45
55A
49A
