Avet Reels LX - 6/3 - Manual

Models LX - 6/3 Parts List
(rev. 5-08)

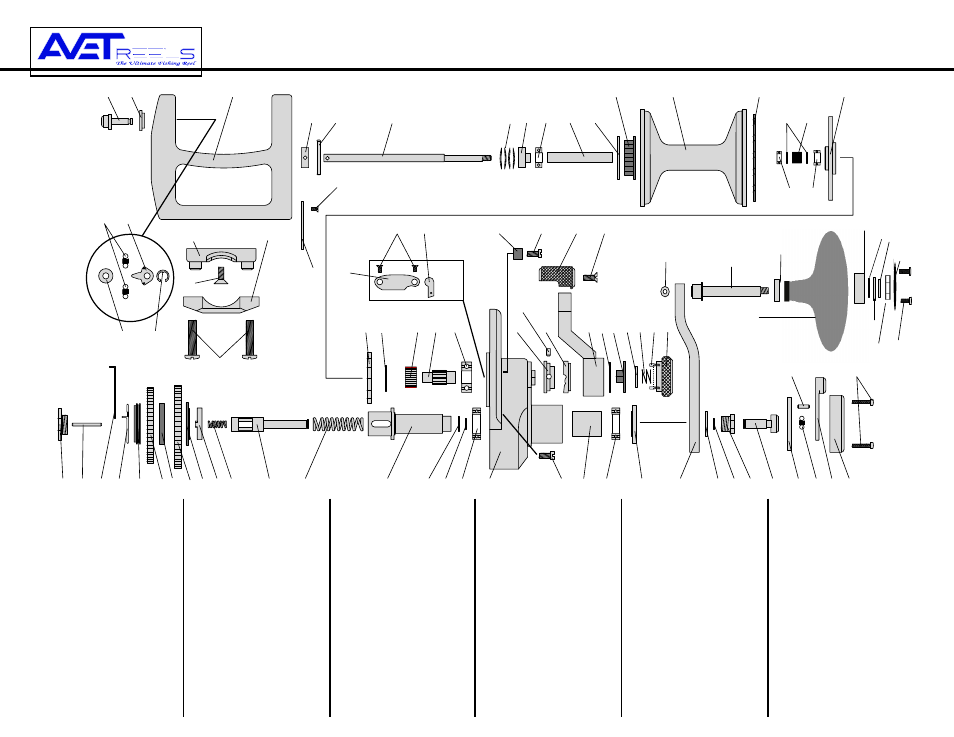

ASSEMBLY
1 - Main Housing LX6/3-001
2 - Gear cover LX6/3-002
3 - Cover Screw (2 req.) LX6/3-003
4 - Spool Shaft LX6/3-004
4A-Shaft Shoulder LX6/3-004A
4B-Shaft Pin LX6/3-004B
5 - Belleville Washers (4 req.) LX6/3-005
6 - Pusher Bushing LX6/3-006
7 - Spool Bearing LX6/3-007
8 - Spool Tube LX6/3-008
9 - Clicker Gear Retainer Ring LX6/3-009
10- Clicker Gear LX6/3-010
11- Spool LX6/3-011
12- Brake Pad LX6/3-012
14- Spool Bearing LX6/3-014
15 - Spool Spring Washer (2 req.) LX6/3-015
16 - Spool Spring LX6/3-016
17 - Brake Bearing LX6/3-017
18 - Brake Disk LX6/3-018
19 - Antireverse Gear LX6/3-019
20 - Disk Ring LX6/3-020
22 - Large Pinion Gear LX6/3-022
23 - Small Pinion Gear LX6/3-023
24 - Pinion Bearing LX6/3-024
25 - Drive Shaft Stop Nut LX6/3-025
25A-Stop Nut Pin LX6/3-025A
26 - Connection Arm LX6/3-026
27 - Friction Ring LX6/3-027
28 - Washer LF
LX6/3-028
29 - Drive Gear SML LX6/3-029
30 - Washer MDL LX6/3-030
31 - Drive Gear LRG LX6/3-031
32 - Washer RT LX6/3-032
33 - Fork LX6/3-033
34 - Fork Spring LX6/3-034
35 - Pusher LX6/3-035
36 - Pusher Spring LX6/3-036
37 - Drive Shaft LX6/3-037
38 - Pusher Washer LX6/3-038
39 - Pusher E-Clip LX6/3-039
40 - Drive Shaft Bearing (2 req.) LX6/3-040
41 - End Housing
LX6/3-041
41A-Dog Pin LX6/3-041A
42 - Dog Washer LX6/3-042
43 - Dog LX6/3-043
44 - Dog Cover Screw (2 req.) LX6/3-044
45 - Dog Cover LX6/3-045
46 - Stop Pin (2 req.) LX6/3-046
47- Pin Screw (2 req.) LX6/3-047
48- End Housing Screw (3 req.) LX6/3-048
49- Drive Shaft Tube
LX6/3-049
50- Drive Shaft Washer LX6/3-050
51- Male Cam LX6/3-051
51A-Male Cam Pin (2 req.) LX6/3-051A
52- Lever Arm LX6/3-052
53-Female Cam LX6/3-053
54- Handle Knob LX6/3-054
55- Knob Screw LX6/3-055
56- Teflon Washer (2req.) LX6/3-056
57- Drive Washer LX6/3-057
58- Preset Washer LX6/3-058
59- Preset Spring LX6/3-059
60- Preset Knob LX6/3-060
LX6/3-060A 60A- Preset Knob Detent
62- Crank Arm Washer LX6/3-062
63- Push Knob E-Clip LX6/3-063
64- Crank Arm Nut LX6/3-064
65- Posh Knob LX6/3-065
66- Lock Plate LX6/3-066
67- Release Arm Spring LX6/3-067
68- Spring Pin LX6/3-068
69- Release Arm LX6/3-069
70- Push Knob Cover LX6/3-070
71- Cover Screws (2 req.) LX6/3-071
72A- Handle Shaft Washer LX6/3-072A
72-Handle Knob Shaft LX6/3-072
73- Handle Shaft Bearing LX6/3-073
74- Handle Knob LX6/3-074
75- Handle Tube LX6/3-075
77- Spring Washer LX6/3-077
78- Lock Washer LX6/3-078
79- Nut LX6/3-079
80- Knob Cap LX6/3-080
81- Knob Cap Screws LX6/3-081
82- Clicker Pin LX6/3-082
83- Pin Support LX6/3-083
84- Pin Washer LX6/3-084
85- Clicker Spring (2 req.) LX6/3-085
86- Clicker Arm LX6/3-086
87- Pin-E-Clip LX6/3-087
88- Rod Mount LX6/3-088
89- Rod Mount Screws LX6/3-089
90- Rod Mount Clamp LX6/3-090
91- Clamp Screws LX6/3-091
76- Knob Washer (optional) LX6/3-076 61- Crank Arm LX6/3-061
83 82 1
89
4 5 6 7
10 11 12
16
14
84
85 86
87
91
90 88
4A 4B
48
55 54 47 46
9 8
17
18
25 25A 28 29 30 31
19 20 22 23 24 51
27 26 32 33 34 35 36 37 38 39 40 41
41A 43 44
45
49 40
52
50
51A
53 60 59 58 57
61 62 63 64 65 66 67 69 70
68 71
2
3
72
73
74
75
76 78
77
80
79 81
72A
56 60A
