28
P . Specifications
Compatible DISC: DVD/CD/MP3
Signal system: NTSC
Panel size: 8 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4V
rms
/10kOhm
Audio S/N: Better than 60 dB
Dynamic range : Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9V
Power consumption: 12 W
Operating temperature: 41~95°F (5~35°C)
Weight :
1.74lbs (0.79 kg)
Dimensions (W x D x H): 8.03 X 5.90 X 1.57 inches
(204 x 150 x 40 mm)
Battery Type: Li-Polymer
2. Connecting Optional Headphones

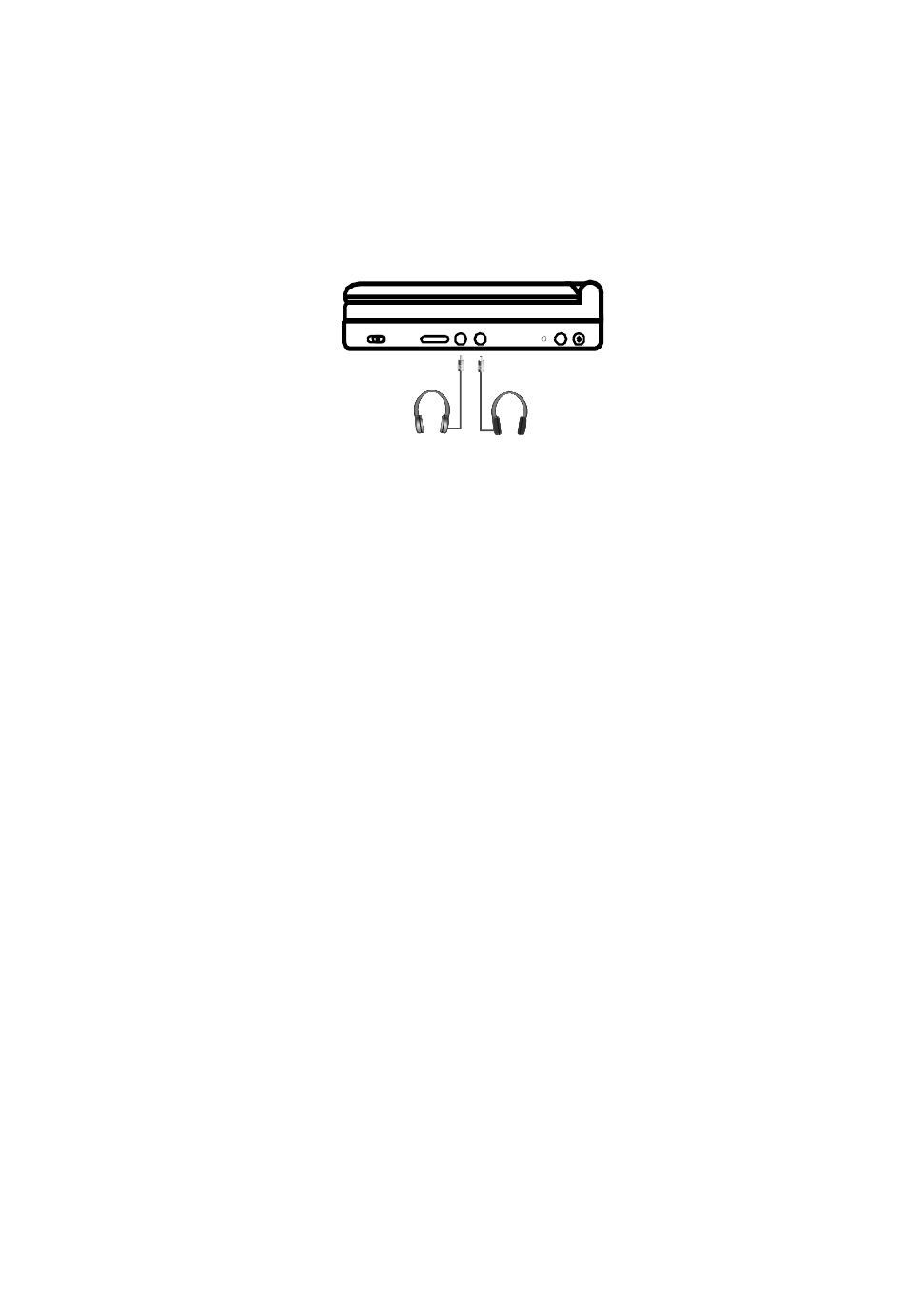

Simply plug the optional headphones into either Headphone jack 1
or Headphone jack 2 on the right side of the DVD Player.
(Refer to Figure 6)
Figure 6
Plugging into Headphone jack 1 will disable the internal speakers.
