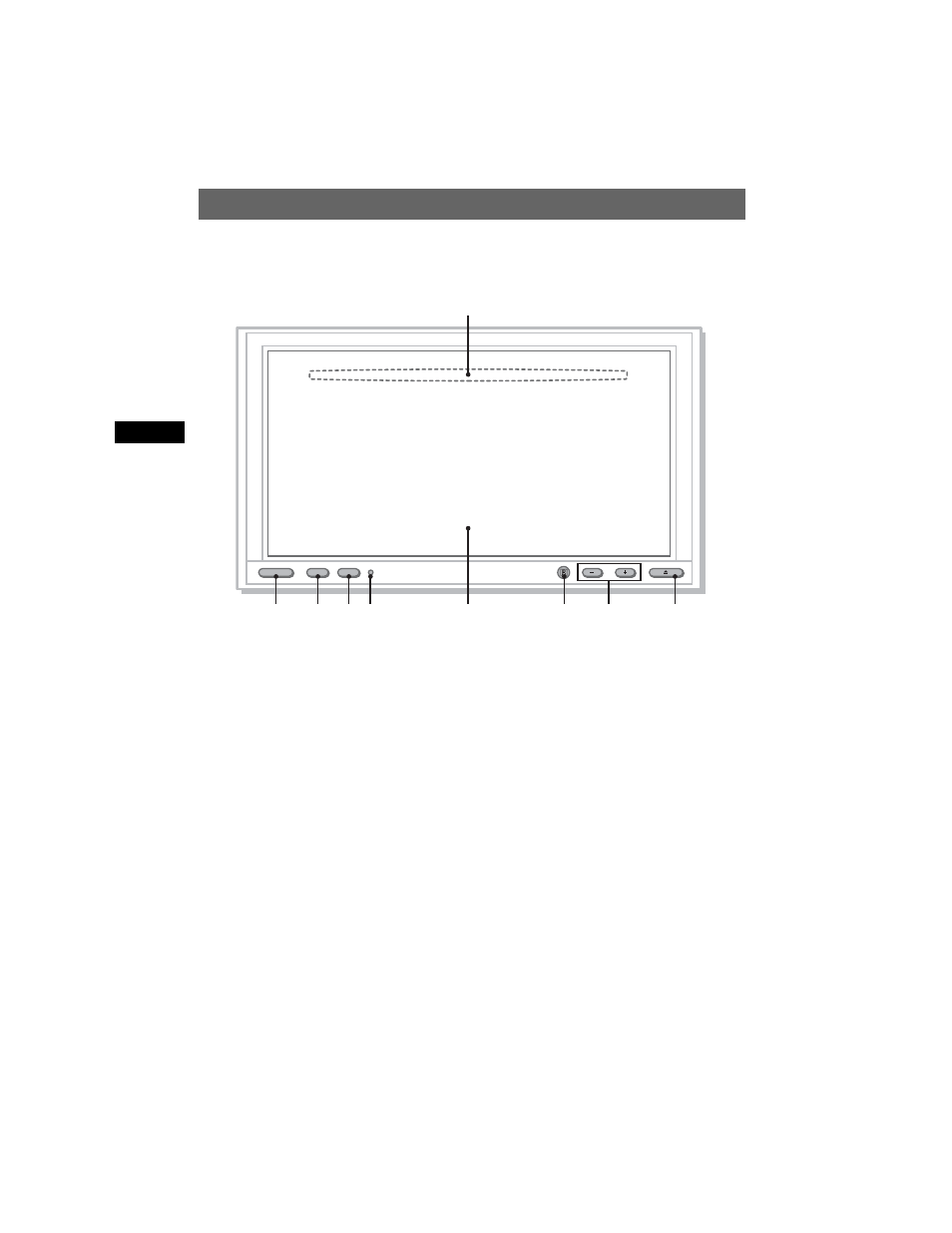

Location and function of controls
Main unit
Refer to the pages listed for details.
A Disc slot (located behind the front panel)
15
To insert the disc.
B SRC (Source) button 14
To power on; change the source* (Radio/
Disc/AUX).
To power off/stop the source (press); shut off
completely (press and hold).
D CSTM (Custom) button 44
To perform the assigned function (one of the
following).
Capture: 37
To capture and store an image during
video/image playback to set as a wallpaper.
Screen: 36
To switch the background screen.
Picture EQ: 37
To select the picture quality.
Aspect: 38
To select the screen aspect ratio.
EQ7: 31
To select an equalizer type (Xplod/Vocal/
Edge/Cruise/Space/Gravity/Custom/OFF).
Zone × Zone:
To activate Zone × Zone.
F Display window/touch panel
G Receptor for the card remote
commander
H VOL (Volume) –/+ buttons
To adjust the volume.
I Z (Open/Close) button 15
To open/close the front panel/eject the disc
when inserted.
