Sony DAV-C700 - Manual (Page 260)

12 SE
V I D E O O U T
A U D I O OUT
V I D E O I N
A U D I O I N
L
R
V I D E O I N
A U D I O I N
L
R
O P T I C A L
D I G I T A L
I N
D I G I T A L
( C D O N L Y )
V I D E O
S V I D E O
( DVD ONLY)
Y P B / B - Y P R / R - Y
FRONT R FRONT L CENTER
S P E A K E R
REAR R REAR L WOOFER
COAXIAL
AM
FM
75 Ω
VIDEO 1 VIDEO 2
MONITOR OUT DIGITAL
OUT
COMPONENT VIDEO OUT

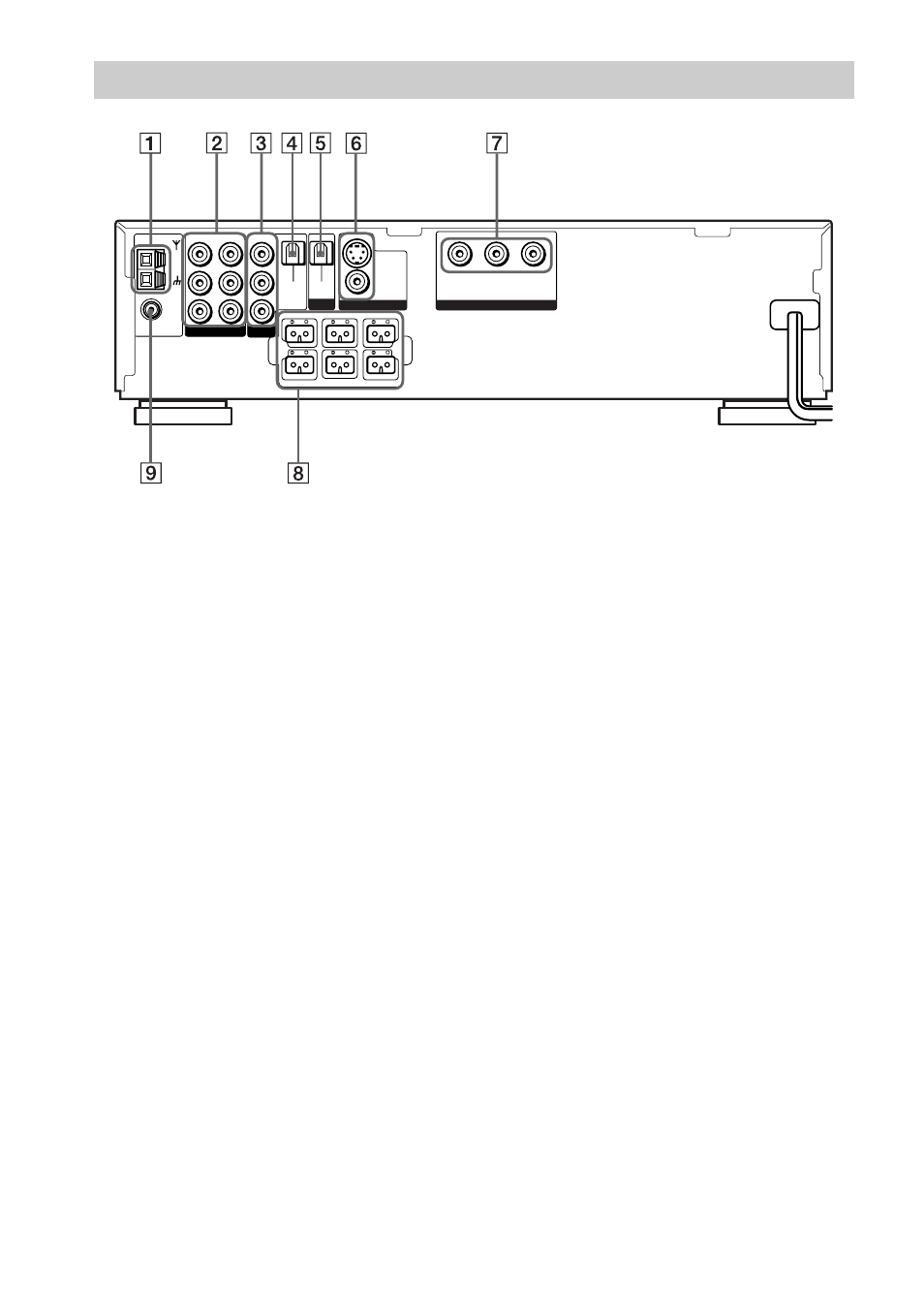

1 AM-antenn (20)
2 VIDEO 1-uttag (22)
3 VIDEO 2-uttag (22)
4 DIGITAL IN (OPTICAL)-uttag (23)
5 DIGITAL OUT (OPTICAL)-uttag 6 MONITOR OUT (VIDEO/S VIDEO)-
uttag (22)
7 COMPONENT VIDEO OUT-uttag (22)
8 SPEAKER (högtalaruttag) (18)
9 FM 75
Ω
COAXIAL-antennuttag (21)
Bakpanel
