ASUS A7M266 User’s Manual 21
3. HARDWARE SETUP
3. H/W SETUP
Motherboard Settings

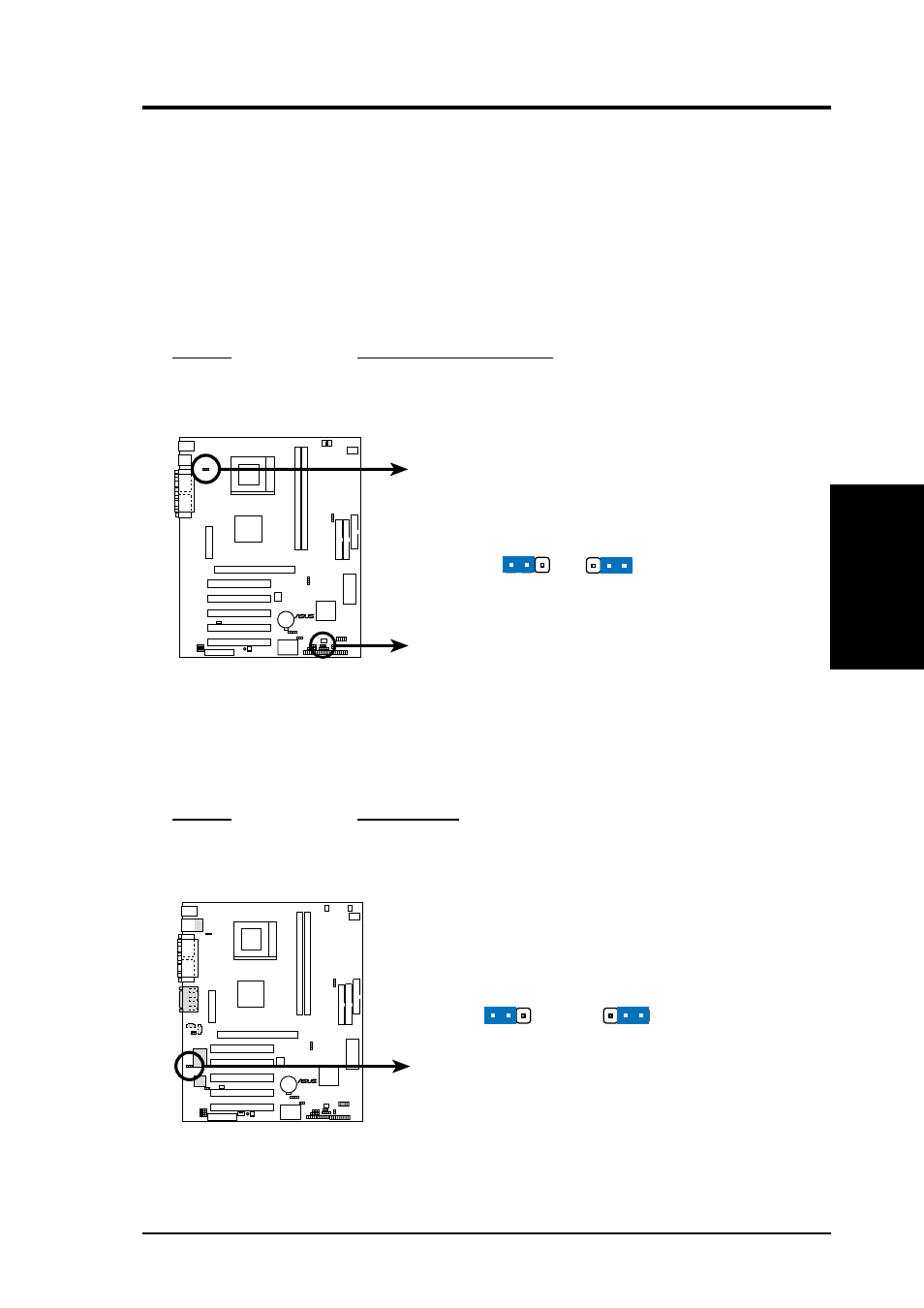

4) USB Device Wake Up (USBPWR1, USBPWR2)
Set these jumpers to +5V to allow wake up from the S1 sleep state (CPU stopped;
RAM refreshed; system running in a low power mode) using connected USB
devices and +5VSB to allow wake up from the S3 sleep state (no power to CPU;
RAM in slow refresh; power supply in a reduced power mode). An ATX power
supply that can supply at least 2A on the +5VSB lead is required when these
jumpers are set to +5VSB. The default is set to +5V because not all computers
have the appropriate ATX power supply. Your computer will not power ON if you
set this to +5VSB and do not have the appropriate ATX power supply.
Setting USBPWR1, USBPWR2
+5V [2-3] (default)
+5VSB [1-2]
0 1 0 1
A7M266
®
A7M266 USB Device Wake Up
+5VSB +5V
(default)
1 2 2 3
USBPWR1
USBPWR2
5) Onboard PCI Audio Setting (AUDIO_EN) (optional)
The onboard PCI audio may be enabled or disabled using this jumper.
Setting AUDIO_EN
Disable [1-2]
Enable [2-3] (default)
0 1 0 1
A7M266
®
A7M266 Onboard Audio Setting
Disable Enable
(Default)
1 2 2 3
AUDIO_EN
