Chapter 3: Installation and Configuration 53

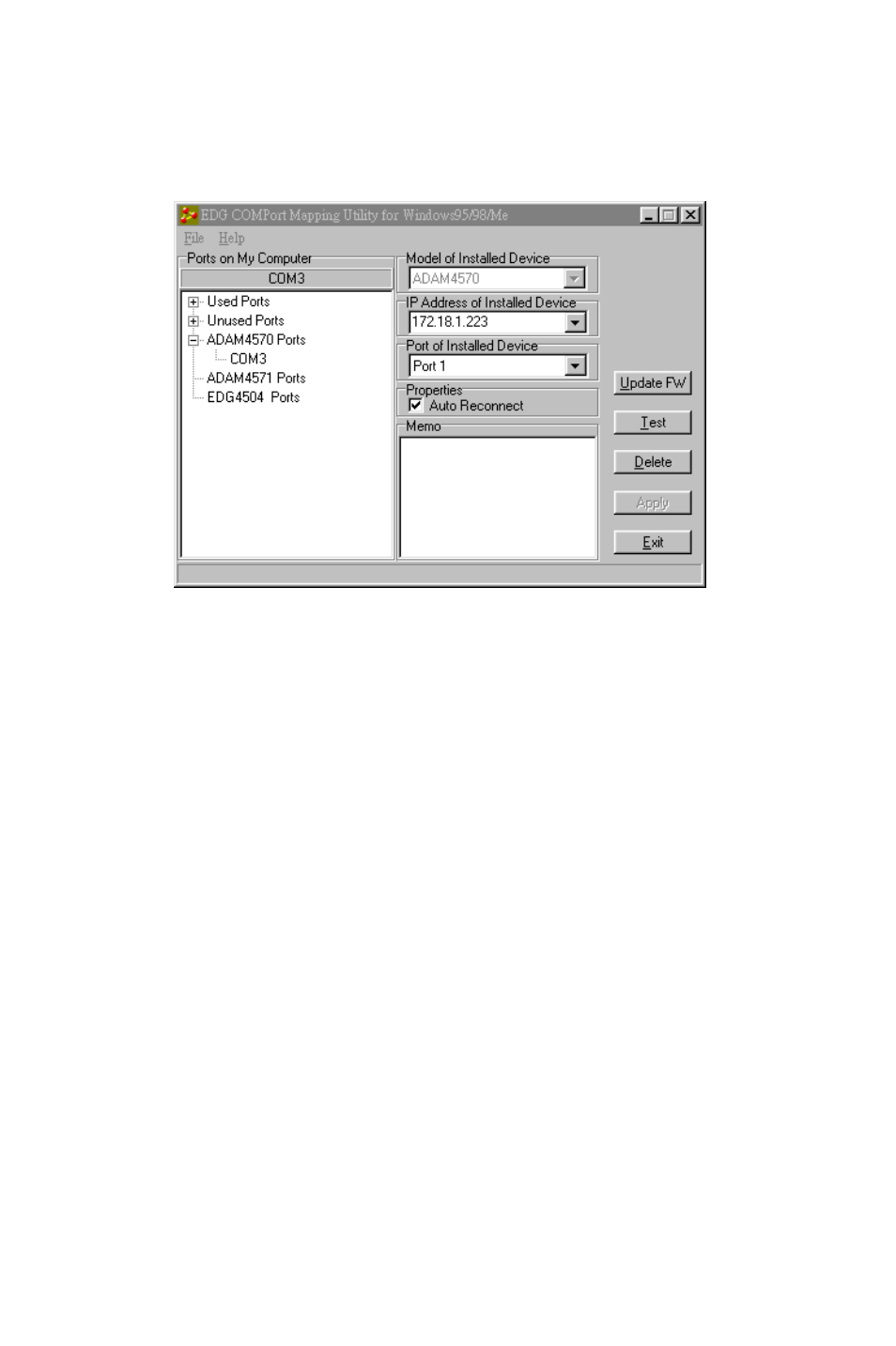

1. Click the Test button in the Port Mapping utility.
Signal Test
• RTS CTS: Check the RTS and CTS signals between
two ports.
• DTR RI: Check the DTR and RI signal between two
ports.
• DTR DSR: Check the DTR and DSR signal between two
ports.
• DTR DCD: Check the DTR and DCD signal between two
ports.
Communication Parameters Test
• Baud rate: From 50 bps to 230 Kbps
• Data bit: 5,6, 7, 8
• Stop bit: 1, 1.5, 2
• Parity: odd, even, none, space, mark
Figure 3-14 Test window
