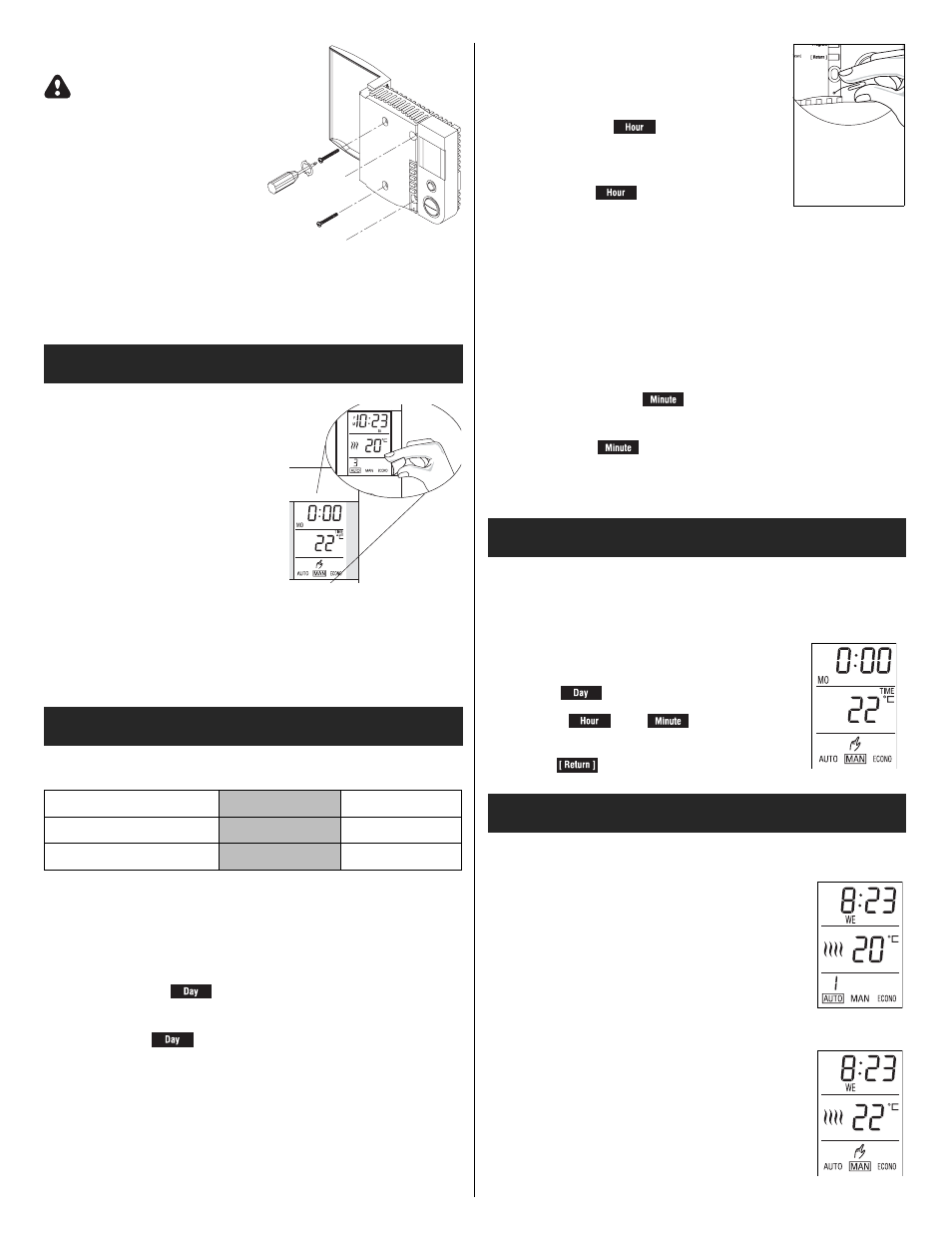

Aube Technologies TH104 - Manual (Page 2)

2) Secure the thermostat
Push the excess wire into
the electrical box to prevent
interference with the thermostat.
Secure the base to the electrical
box using the provided screws.
The base can be secured on the
left or right hand side of the electri-
cal box.
3) Complete the installation
Once the thermostat is configured and installed, return power to
heating system.
Keep the thermostat's air vents clean and free from obstructions.
To view the ambient temperature,
peel the lower-right section of the
sticker and remove it from the display.
When you first power on the
thermostat, the display
indicates: 0:00, MO (Monday), the
ambient temperature and the MANual
mode is selected (framed). The
default setpoint is preset to 20°C.
Protected memory
During a power failure, all programs are protected. The thermostat
display remains on for approximately 15 minutes after which the LP
indicator is displayed (low power). Only the time must be reset if the
power failure exceeds 6 hours. The thermostat will automatically
return to the previous mode when power returns.
The TH104 offers the following options:
Highlighted options are factory pre-set. If these options fit your
requirements, go to the next menu.
Temperature display
To change the temperature display from °C to °F and vice-versa:
Press and hold , do not release.
Reset the thermostat using a pointed object (e.g. paperclip).
Release the button.
Time display
To change the time display format from 12 to
24 hours and vice-versa:
Press and hold ; do not release.
Reset the thermostat using a pointed object
(e.g. paperclip).
Release the button.
Temperature control type
The TH104 is factory-set to use the proportional temperature con-
trol type (15-second cycles).
Since this temperature control type uses a fast commutation rate, it
is not compatible with fan-equipped systems. Also, it can also cause
light flickering, especially in rural regions.
If you have a fan-equipped system, use the conventional tempera-
ture control type (15-minute cycles). To change the type:
Press and maintain , do not release.
Reset the thermostat using a pointed object (e.g. paperclip).
Release the button.
Following the change, the FAN indicator is displayed on the screen.
To revert to proportional control, repeat above steps.
NOTE: You should select the options before you adjust the clock
and day settings because using the reset button when selecting
options will reset the clock.
The TIME icon flashes to indicate that the
clock needs to be adjusted.
!
Press to set the day.
"
Use the and buttons to
set the clock.
#
Press to exit.
The TH104 has three operating modes:
AUTOmatic
This mode automatically runs your programs.
Press MODE until AUTO is outlined. The current
program number is displayed above the AUTO icon.
To temporarily bypass the current program, simply
select the desired temperature using the tempera-
ture adjustment buttons. The new setpoint will be
maintained until the beginning of the next program.
MANual
Maintains a constant temperature setpoint.
Press MODE until MAN is outlined and select the
desired temperature using the temperature adjust-
ment buttons.
FIRST POWER ON
OPTIONS SELECTION
Temperature display °C °F
Time display 24 h 12 h
Temperature control Proportional Conventional
ADJUST THE TIME AND DAY
OPERATING MODES
TO RESET
THE
THERMOSTAT
2/4 400-104-000-A
