3

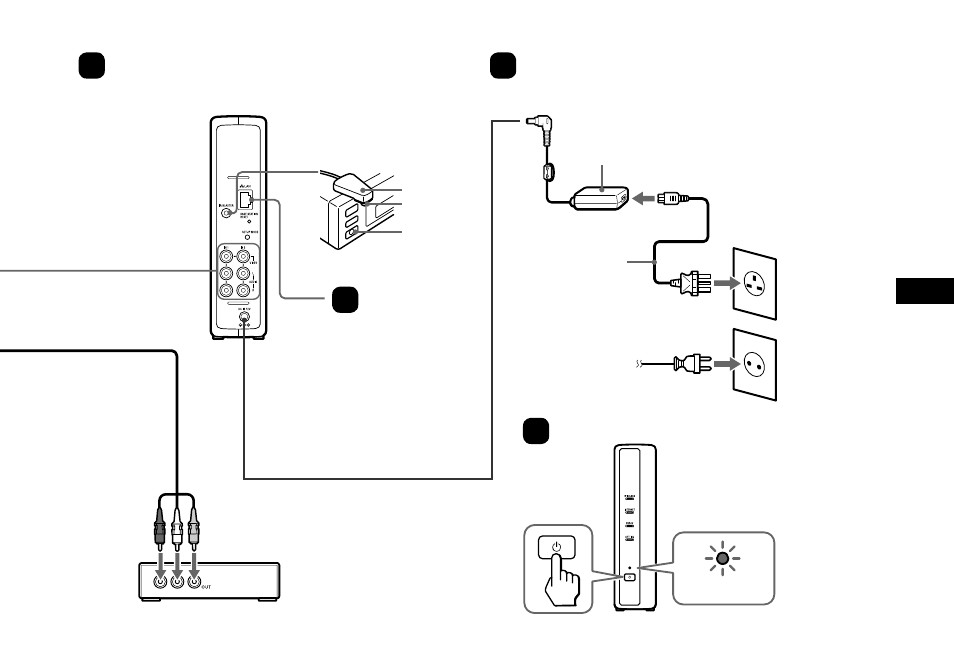

Connect the IR Blaster so it faces the remote

sensor on the external devices.

5

Connect the mains lead to the Base Station.

6

Turn on the power.

Base Station rear panel

IR Blaster

(supplied)
Infrared

transmitter

Remote sensor

AC-LX1B AC power

adapter (supplied).

Mains lead

(supplied)

Lights

POWER LED

4

Connect the

LAN cable

(not supplied).

For details, see

the connection

examples in

STEP 2

(page 11).

A/V cable (RCA pin

cable, supplied)

or

Type BF

Type C-6

External device (STB, PVR, etc.)
