Page 16
16
English
1
Display
2
ADVANCE key
During operations, the current time is
shown in the display.
Î Press ADVANCE key for 5 to 6 sec-
onds. The display will show the first sta-
tus display from the list shown beloe.
Î To go to the next display, press once
again the ADVANCE key briefly.
If you do not press the ADVACE key for
some time, the display goes back to show-
ing the time.
The dosing pump must be ventilated if the
pump has sucked in air.
1
Dosing frequency button
2
Screw connections
3
Dosing pump
Î Stopping the WPC 2500 SW-AM: Dos-
ing pump switches off.
Î Fix cause for air suctioning, contact cus-
tomer service if necessary.
Î Loosen screws on the dosing pump.
Î Read and note the dosing frequency
that has been set at the LEDs of the
dosing pump.
Î Set the dosing frequency to 100% by re-
peatedly pressing the dosing frequency
button and waiting until there are no
more bubbles in the suction pipe (ap-
prox. 1 minute). Absorb the oozing dos-
ing liquid with a piece of cloth.
Î Tighten the screws.
Î Set the dosing pump to the original dos-
ing frequency.
1
Return key
Î Check the pressure difference between
the two manometers. Change filter inlay
if value is more that 0.15 MPa (1.5 bar):
Î Turn the main switch to position "0"
Î Interrupt raw water inflow.
Î Open the raw water testing tap to de-
pressurise the filter.
WPC 2500 SW-AM:
1
Filter casing
2
Filter cup fine filter
3
Filter cup coarse filter
1
Filter insert fine filter
2
Filter insert coarse filter

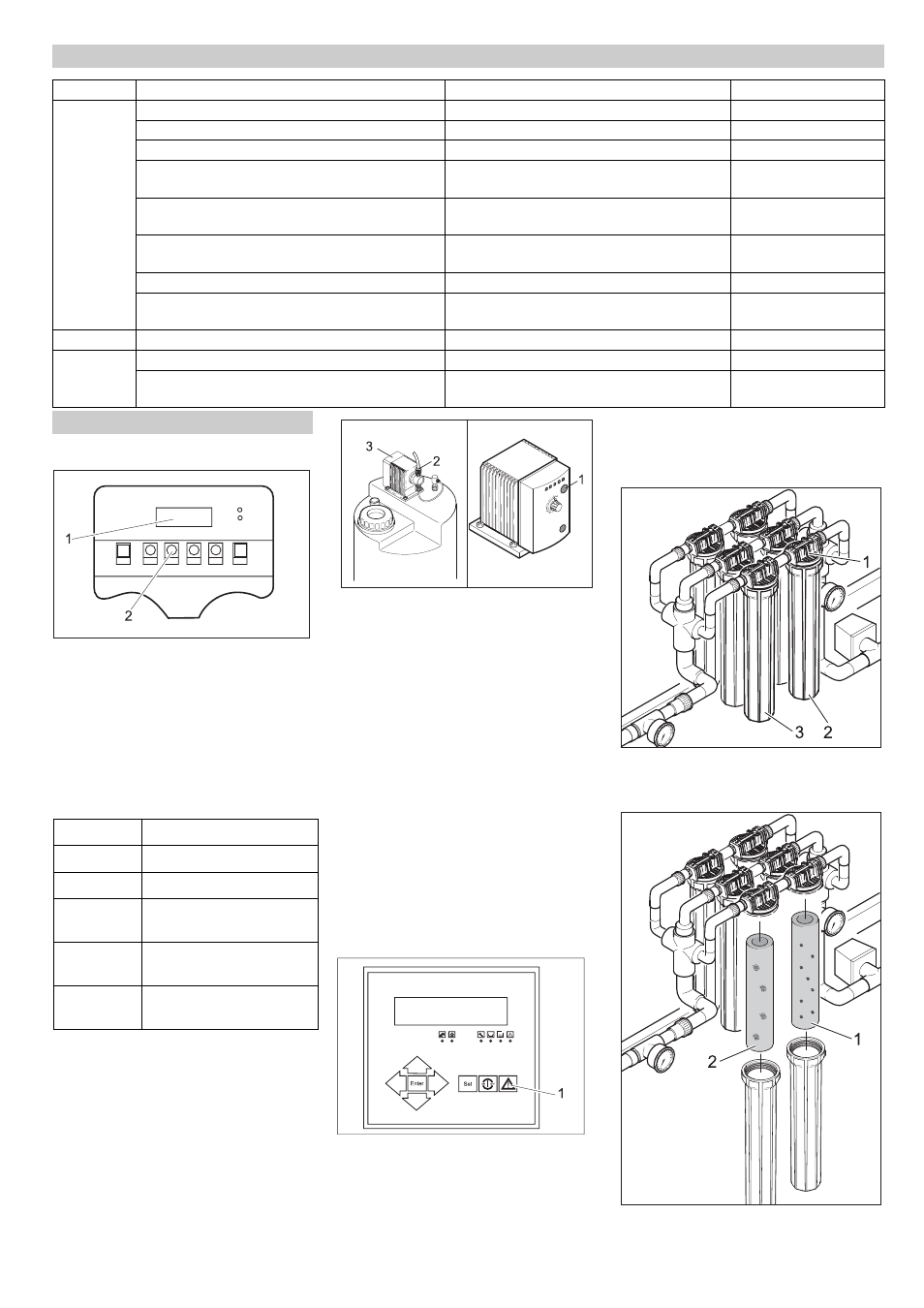

Maintenance schedule
Time
Check / Activity
Target value
In case of deviation
daily
Filling level of dosing container
adequate filling
refill
Air bubbles in the dosing pipes
no air bubbles
Bleed dosing pump.
Drinking water flow based on the startup value
Lowered by less than 10%
Fine regulation
Drinking water guide value based on the startup
value
Increase within 10%
Fine regulation
Pressure difference between pump and concen-
trate pressure
maximum 15% above startup difference
Kärcher Customer
Service
Counter/meter for media and active carbon filters Reflushing has taken place in the last 24
hours
Kärcher Customer
Service
Pressure difference fine filter
maximum 0.15 MPa (1.5 bar)
Replace fine filter
Visual inspection of the plant
no leaks
Kärcher Customer
Service
weekly
Fill up operations log
monthly
Clean and rinse dosing container
Float switch in drinking water tank
no functional disruption can be detected
Kärcher Customer
Service
Maintenance Works
Check media and active carbon filters
Display
Significance
2000
Not important
0000
Not important
D–07
Number of days until the
next reflushing
–001
Number of reflushing that
have been conducted
0–01
days - hours since the last
reflushing
Bleed dosing pump.
Replace fine filter
