English
7
Note
The switch for the end position (C) must be
in position 2 in order to be able to use the
joystick.
Î Determine rotation direction and switch
on side brush.
Î Lower the side-brushes.
Î Press spray water button.
Î Adjust the water volume using the regu-
lation valve.
Î Perform the cleaning operation.
Î Depending on the cleaning task, move
the side brush to the left or to the right.
Î The side-brushes lift up.
Î Switch off side brush.
Î Switch-off spray water.

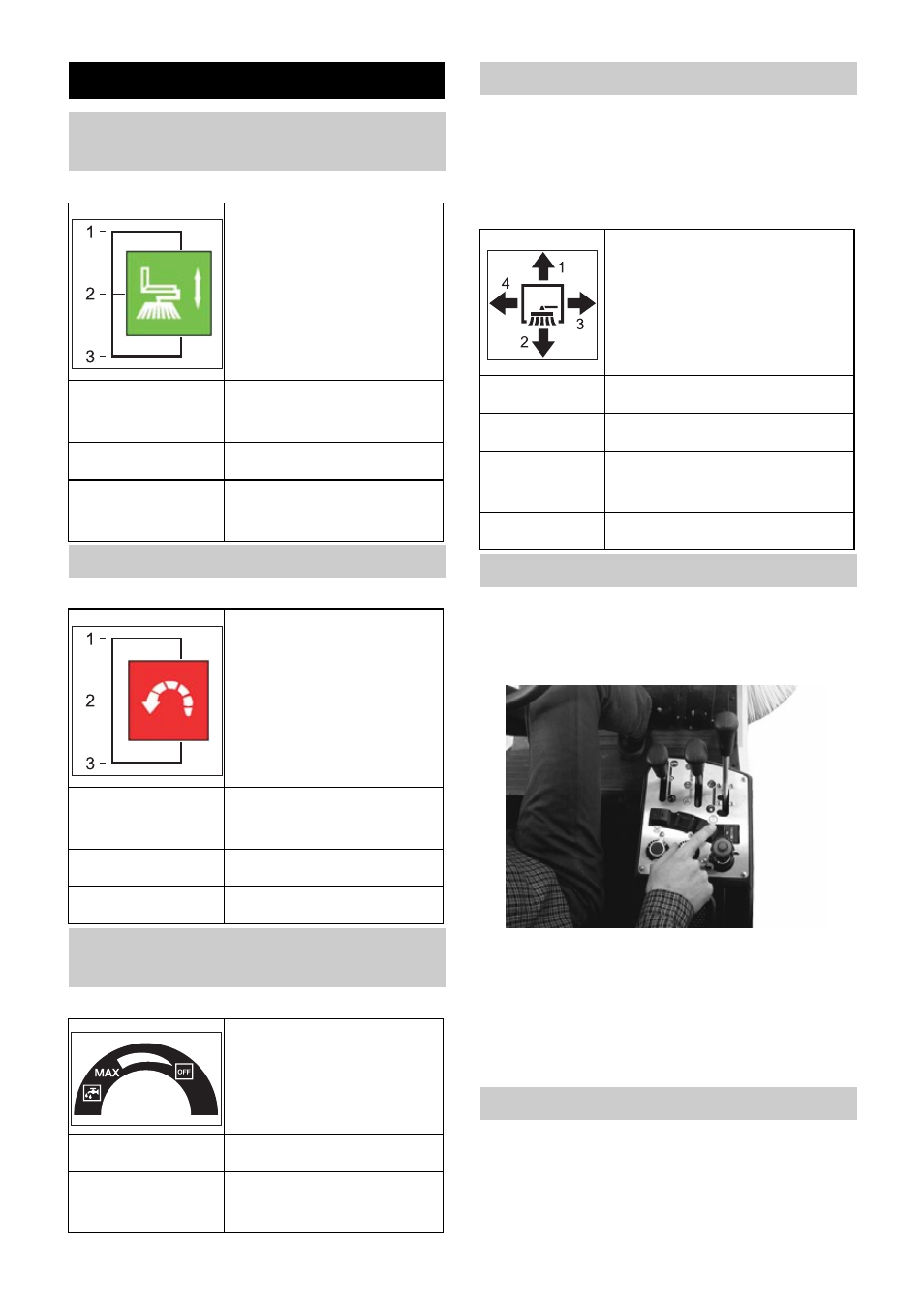

Operation
Raise/lower side brush in its end
position
End position of the side
brush
1 Lower side brush to its
lower end position
2 Off/Joystick operation
3 Raise side brush to its
upper end position
Switch on side brush
Rotation direction of
the side brush
1 Direction of rotation,
right
2 Off
3 Rotation direction left
Regulate the water volume of the
side brush
Regulating valve of the
water volume (step-
less)
OFF Off
MAX Maximum water vol-
ume
Joystick operation
Joystick
1 Lower the side brushes
2 Raise side-brushes
3 Move side brush to the
right
4 Move side brush to the left
Cleaning operations
Complete cleaning
