– 3

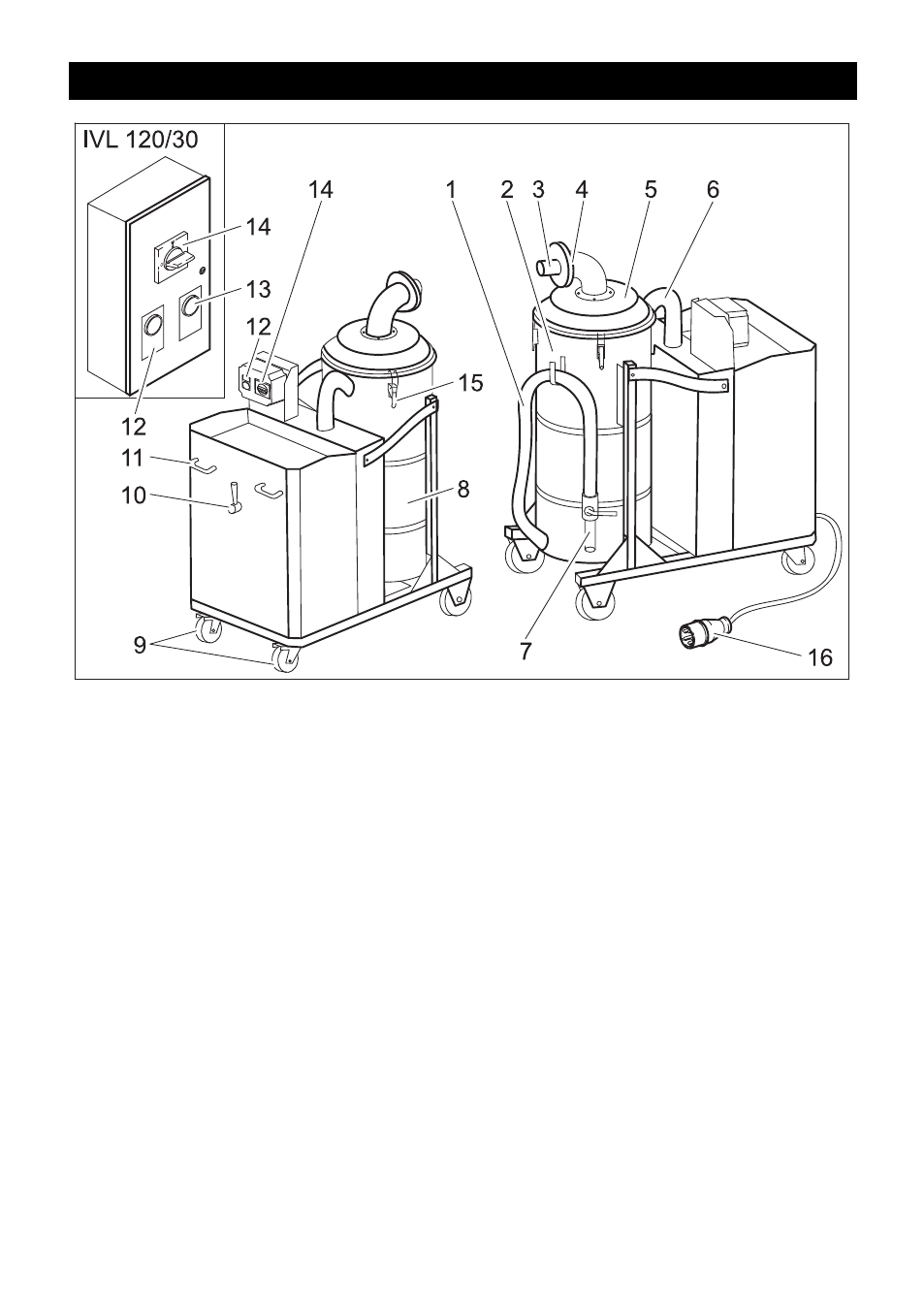

1 Drain hose
2 Filter basket for solids (in the appliance)
3 Connection neck for accessories
4 Backflow valve
5 Lid of the liquid container
6 Hose to the suction turbine
7 Drain hose valve
8 Liquid reservoir
9 Steering roller with fixed position brake
10 Switch valve vacuum/empty
11 Sliding handle
12 Indicator lamp "Mains voltage present"
13 Indicator lamp "Wrong rotation direction"
(IVL 120/30 only)
14 ON/OFF switch
15 Lock
16 Mains plug
Device elements
12 EN
