- 2

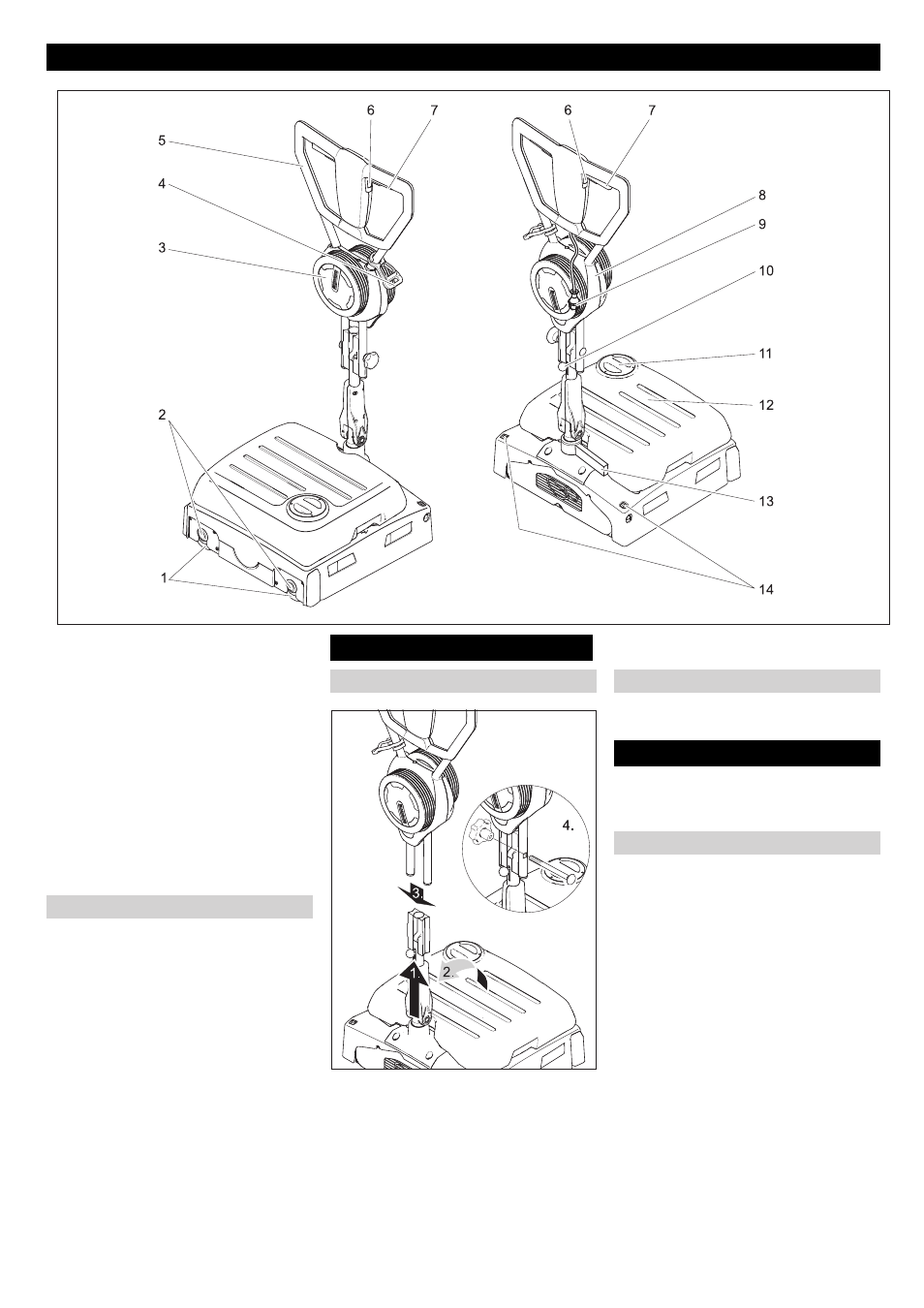

1 Brushing rollers
2 Button for brush change
3 Bearing wheel
4 Strain relief clamp
5 Push handle
6 Switch for detergent solution
7 Switch for brush drive
8 Support of the transport wheel
9 Mains plug
10 Lock of pushing handle
11 Fresh water tank cover
12 Fresh water tank
13 Park support
14 Release button for the transport wheel
– The operating elements for the cleaning
process are yellow.
– The controls for the maintenance and
service are light gray.
Caution
Risk of damage. Do not pinch the cable
during the installation.

Slide the lock of the push handle up.
 Place the lower push handle vertically
and arrest.
 Slide the upper slider half onto the low-
er slider half.
 Insert the screw into the star handle and
tighten it.
 Attach the cable to the wire hook on the
push handle.
The brushes must be installed before the
initial operation (see "Maintenance works").
Note
To take the brush drive out of operation, im-
mediately release brush drive switch.
Caution
Risk of damage. Only use the recommend-
ed detergents. With respect to different de-
tergents the operator bears the increased
risk regarding the operational safety, acci-
dent risk and reduced product life of the ap-
pliance. Only use detergents that are free
from solvents, hydrochloric acid and hy-
drofluoric acid.
Follow the safety instructions for using de-
tergents.
Note
Do not use highly foaming detergents. Ob-
serve the dosing notes.
Recommended detergents:
Operating elements
Colour coding
Before Commissioning
Installing the pushing handle Installing the Brushes
Operation
Filling in detergents
