The
Haltech CAN Network
The Haltech CAN network allows for simple and effective expansion in ECU capability
and functionality without having to go to the trouble of wiring in a whole new computer.
Expansion is made possible by the addition of multiple expansion devices that
communicate to the main ECU via a Control Area Network (CAN).
Installation time and costs are kept to a minimum as all expansion devices are
powered up from the main ECU via the pre-terminated connection cable that comes
with each expansion device.
Simply connect the device directly to the 8 pin CAN connector on the rear of the ECU
or connect using an optional Haltech CAN Hub (order as part # HT059990) if multiple
expansion devices are required).
Each expansion device is pre-programmed with a unique ID code which allows it to
be recognised on the network and work correctly first time every time.
For current available expansion devices please go to our website at

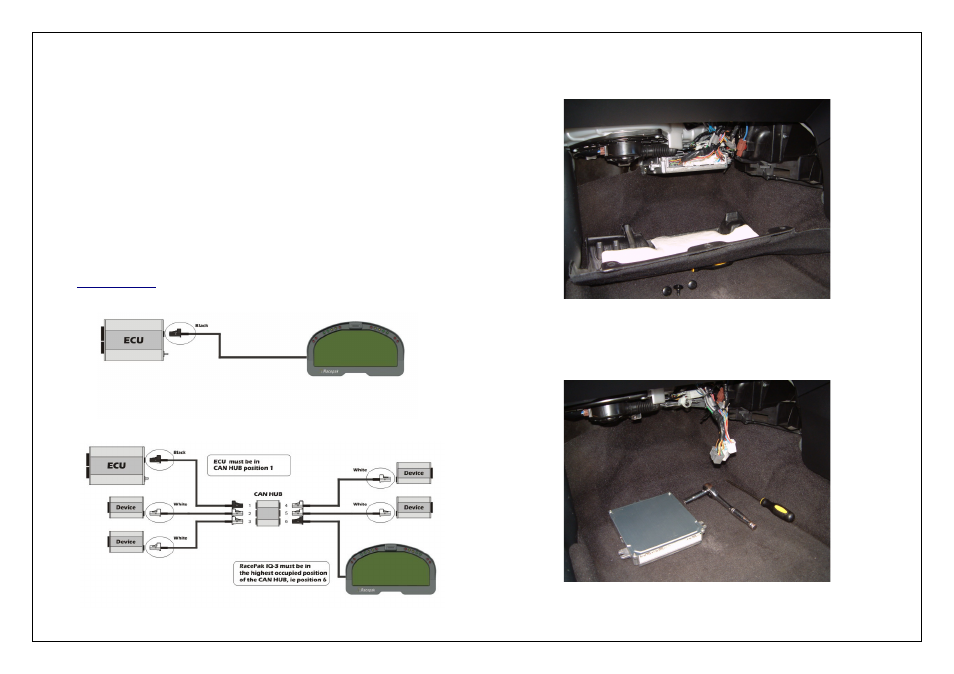

Figure 8 – Haltech ECU connected to a Racepak Dash
Figure 9 – Haltech ECU connected to 5 Auxiliary CAN based devices
2.
Remove the 3 Clips securing the ECU cover to the vehicle, by pushing the centre
pin in and pulling out the clip. Once the clips have been removed proceed to
remove the cover. Your OEM ECU should now be visable.
Figure 2 – Factory ECU location with cover removed
3.
With the ignition turned off disconnect the 3 connectors from the front of the ECU.
Remove the 3 x 10mm bolts securing the ECU in place. Once these bolts
have been taken out, remove the factory ECU from the vehicle.
Figure 3 – Factory ECU removed
