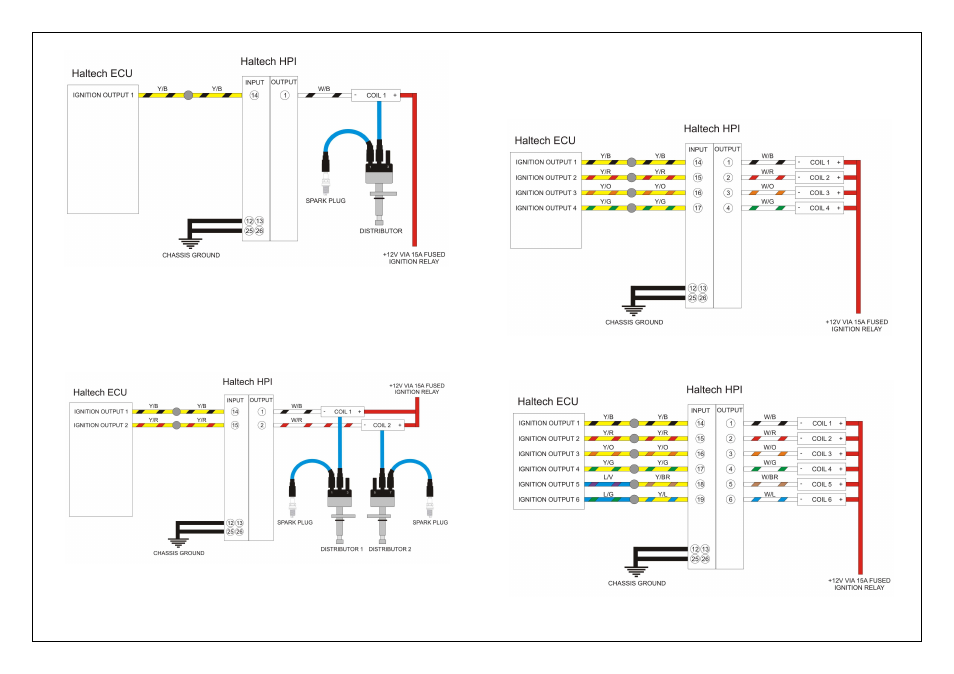

Figure 7 – Single Distributor
Figure 8 – Twin Distributor
Typical Applications
Wiring colours shown here correspond to the Haltech Platinum Series of ECU's and the
optional HPI module flylead harness. Refer to pin numbers and product pinout guides
if wiring harness is not purchased.
Figure 1 – 4 Cylinder Direct Fire
Figure 2 – 6 Cylinder Direct Fire
