1.7.3 Inputs and Outputs
The Avenview DVI-VIDEOWALL-9X can accept inputs from HDMI, DVI, CVBS, YPbPr, VGA and accepts both
graphics and video signals, which come from computers and NTSC/PAL video sources respectively. There is a
concept of main channel and sub channel for this device. You can pick up one of the digital inputs and one of
the analog inputs, and then DVI-VIDEOWALL-9X will display the mixed video on the connected 9 displays.
With an advanced de-interlace built in, low resolution but popular video formats such as NTSC/PAL will be
improved.

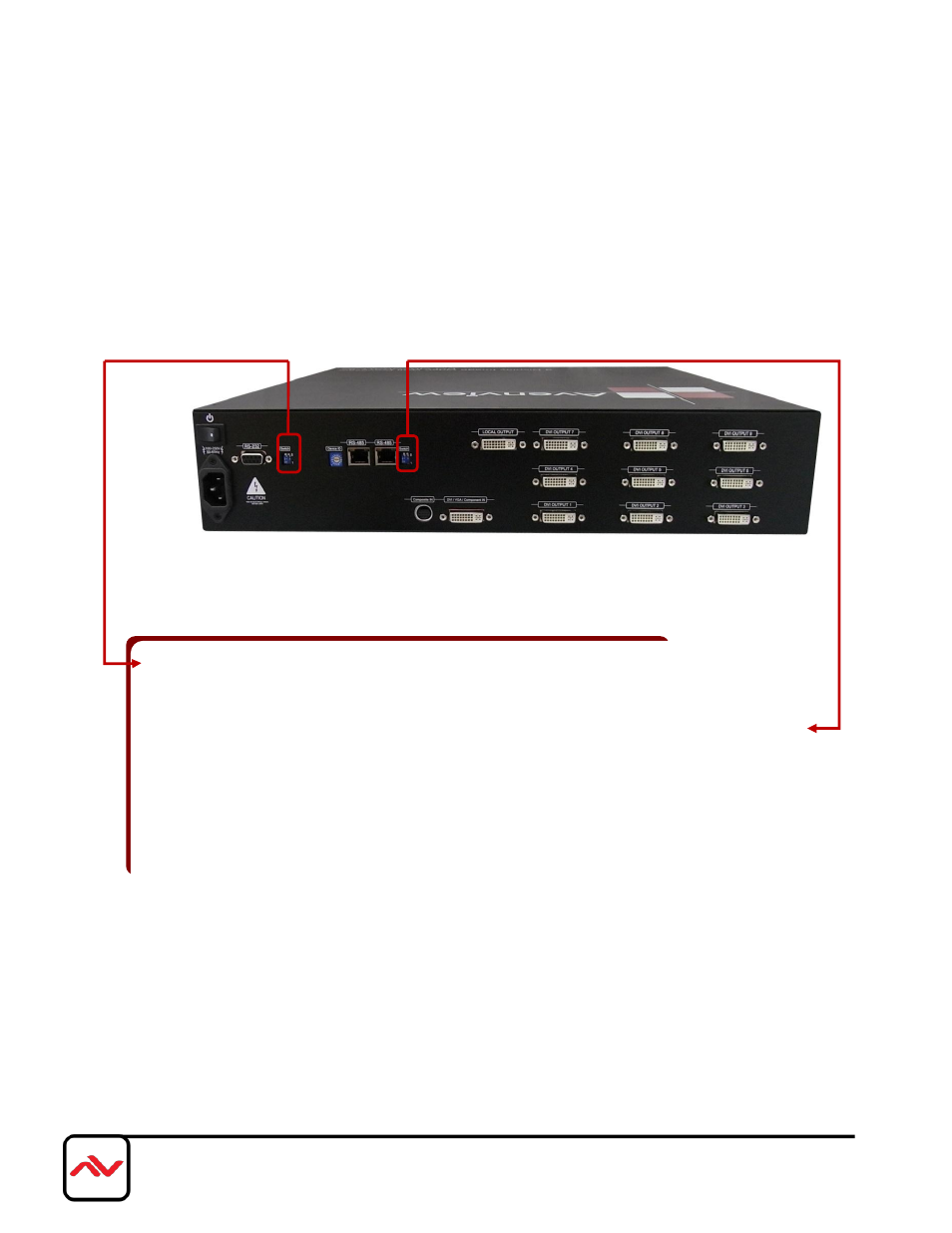

*Firmware updating: The up state of DIP switchers is normal operation mode; down state is
firmware update mode.
*Default: Turn on the DVI-VIDEOWALL-9X then switch Pin 1 of DIP switcher simultaneously
“up” and “down” to factory default mode. Pin 2 of DIP switcher “up” is RS232 mode; “down”
is RS-485 mode.
*These ten ports (including DVI Local Output) support various resolutions from 640x480 up to
1920x1200, for more detail of the supported modes; please refer to the Appendix – Supported
Resolution.
