1.7

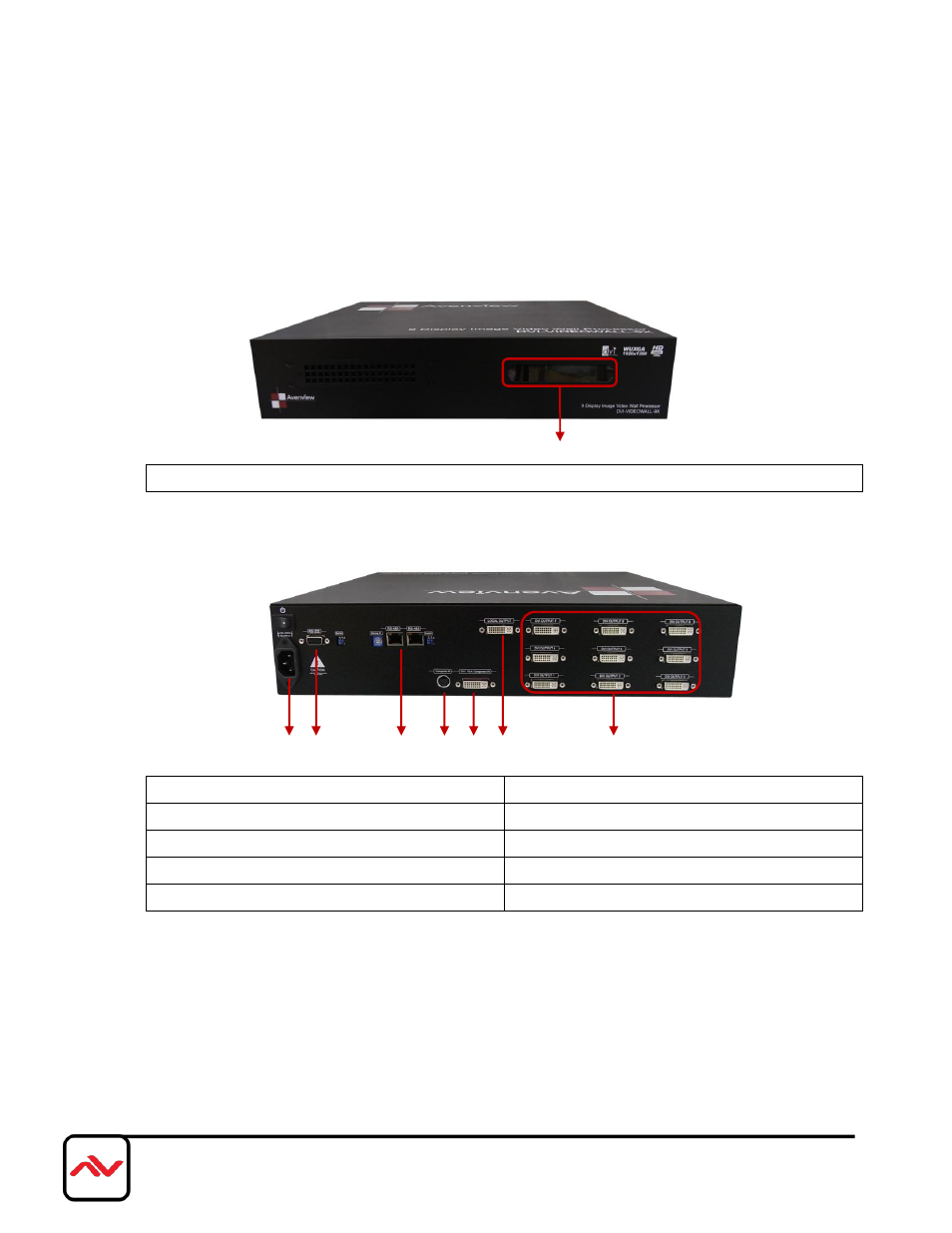

Panel Description

1.7.1 DVI-VIDEOWALL-9X Front Panel

1

1. LED: Shows current configuration

1.7.2 DVI-VIDEOWALL-9X Rear Panel

1 2 3 4 5 6

7

1. AC Power

2. RS232 Connector

3. RS485 Connector

4. S-Video/Composite Input Connector

5. DVI Input Connector

6. DVI Local Output Connector

7. DVI Output Connectors 1 – 9
