Installation Procedure

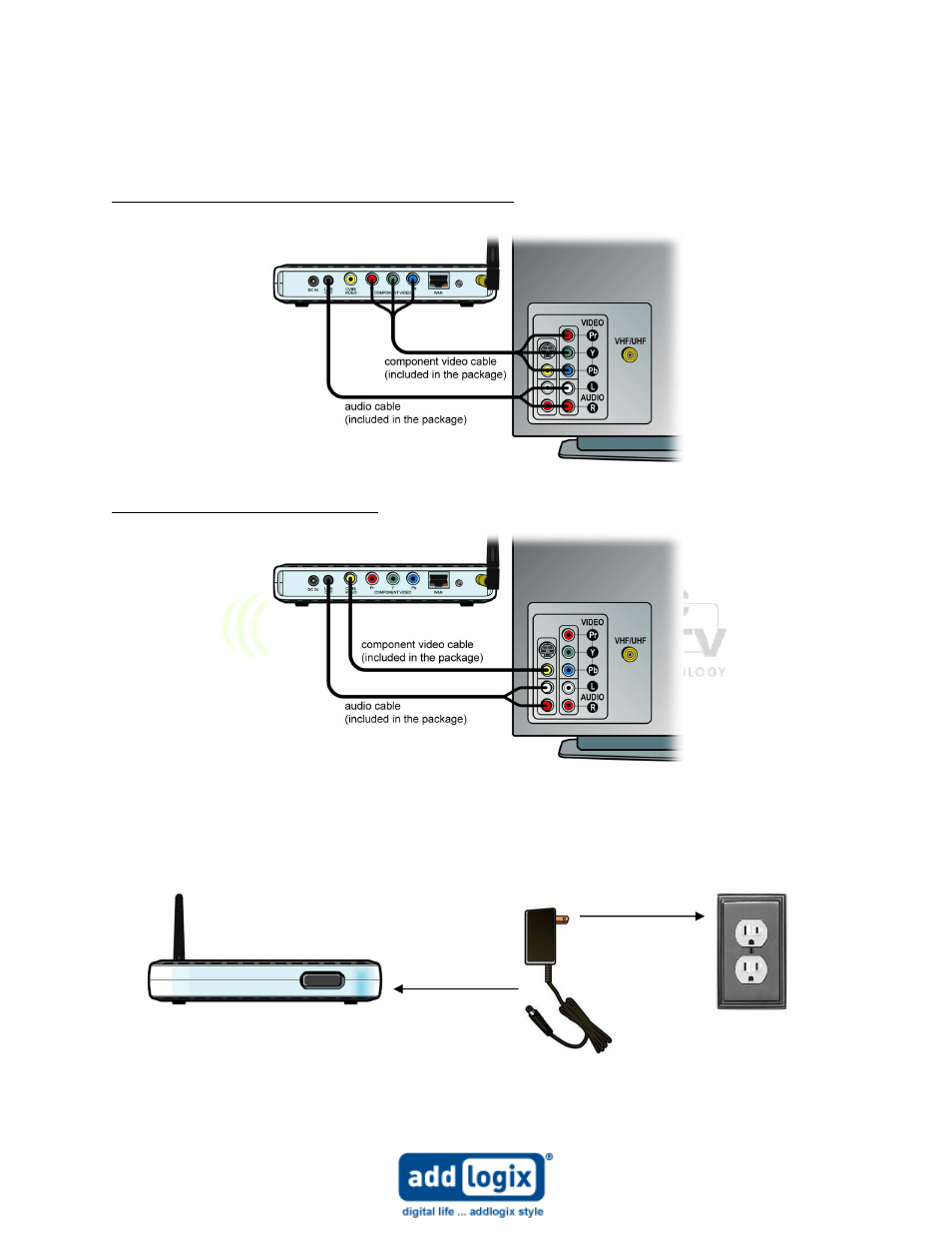

Make sure that the TV or projector and the InternetVue™ is unpowered. Connect the
InternetVue™ receiver box to your TV or projector’s appropriate AV inputs.
TV with Component Video Inputs (Best Quality):
TV with Composite Video Input:
Connect the power adapter to the InternetVue™ DC power jack input first (a), then plug in the
power adapter into an AC outlet (b). Turn on your TV or projector and select the appropriate AV
input. If your configuration involves a wired connection to the InternetVue™, go ahead and
connect it to your router using an Ethernet cable.
(a)
(b)
