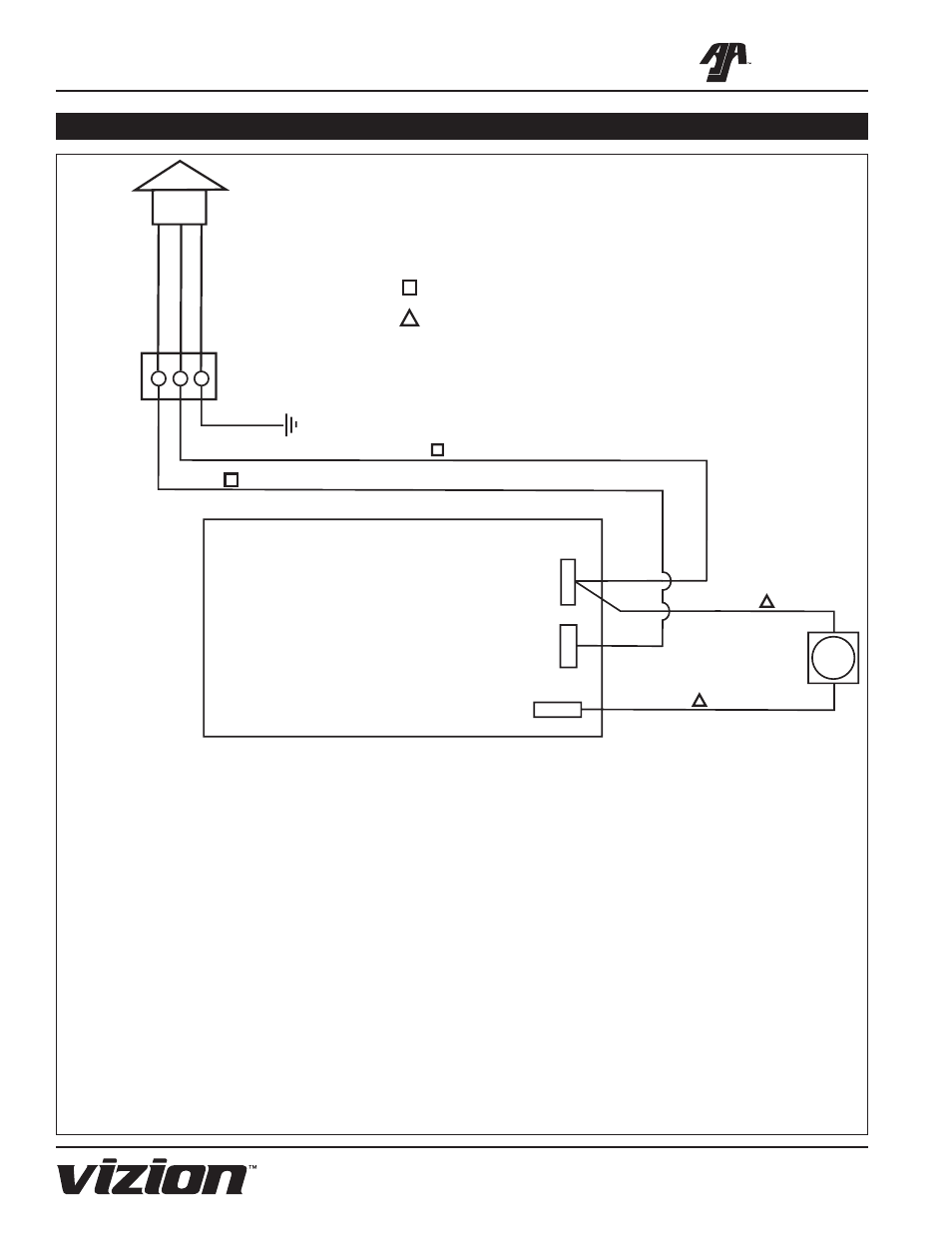

wIrInG DIaGram
TIMER
BOARD
SOLENOID
VALVE
RED
BLK
T2
T3
T4
WHT
BLK
GND
TERMINAL
BLOCK
GRN-YEL WHT/BLU BLK/BRN
POWER
CORD
NOTE: ALL WIRED TO BE 16 GA.. AWM-105ºC
UNLESS OTHERWISE SPECIFIED
14 GA. AWM - 105ºC
22 GA. AWM - 105ºC
