DISPLAY CABINET HEATED

20

P/N 1010677 Rev. D 12/99

A.J. Antunes & Co.

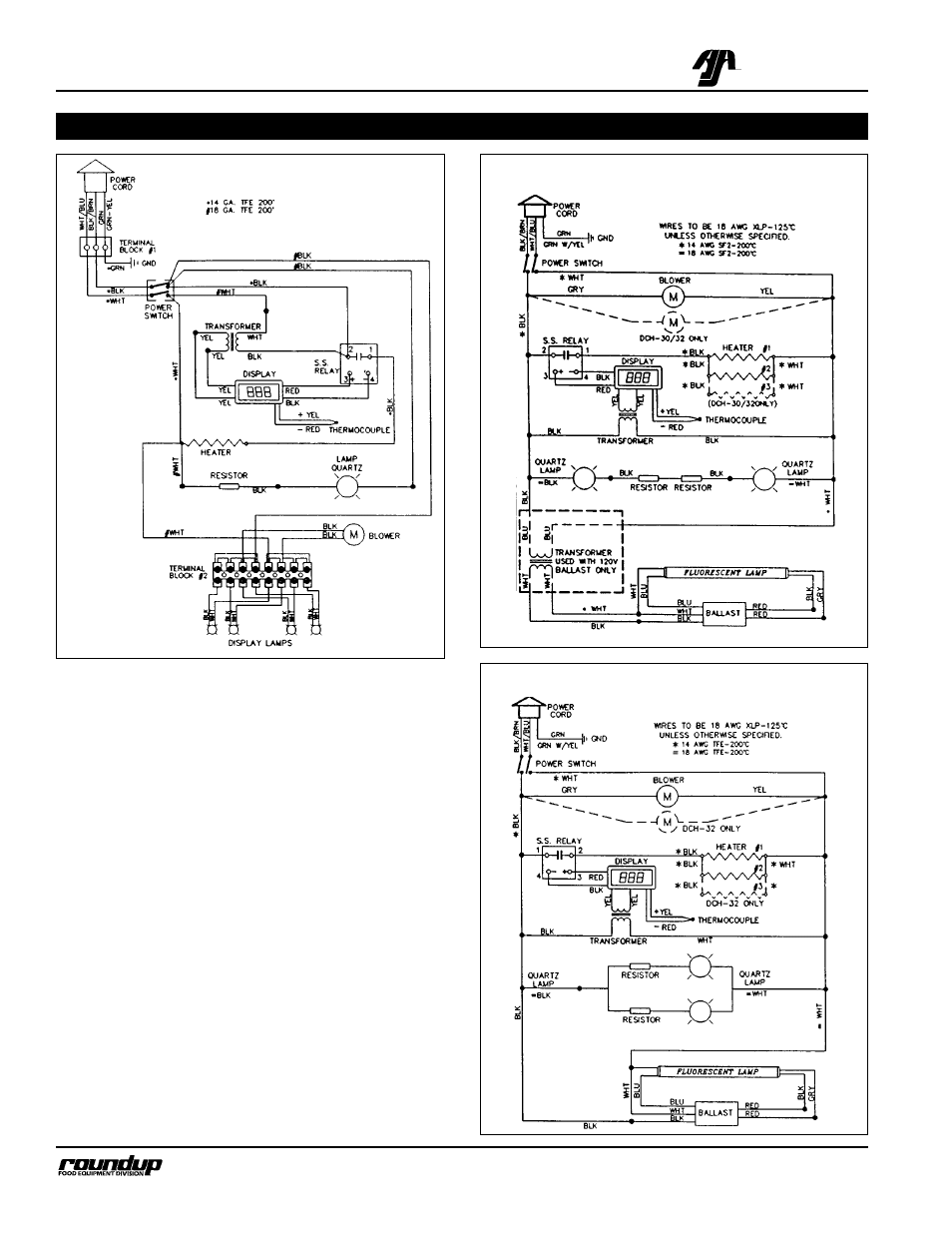

WIRING DIAGRAMS

DCH-10/12 (120V)

DCH-20/30/32 (240V)

DCH-22/32 (120V)

This manual is related to the following products:

DCH-22 9020481 DCH-22 9020480 DCH-32 9020486 DCH-32 9020470 DCH-30 9020468 DCH-30 9020466 DCH-30 9020465 DCH-30 9020460 DCH-20 9020458 DCH-20 9020456 DCH-20 9020455 DCH-20 9020450 DCH-10 9020444 DCH-12 9020440
