VERTICAL CONTACT TOASTER
10 P/N 1010729 Rev. G 09/13
WARNING
Turn the unit off, disconnect the power source
and allow the unit to cool down before performing
any service or maintenance on the unit.
IMPORTANT: Make sure the Heat Shield is acti-
vating the Conveyor Interlock Safety Switch (see
Figure 7). The conveyors will not rotate unless
the Heat Shield is in place and Conveyor Interlock
Safety Switch is activated.
NOTE: Check the Release Sheet to make sure it is
not caught in the Conveyor Belt Chain. Additional
Release Sheets can be obtained through your
Authorized Service Agency under part no. 7000249
(3 pack) or 7000250 (10 pack).
Daily
CLEANING THE ACCESSORIES
1. Turn the unit off, unplug the power cord, and
allow the unit to cool for 30 minutes.
2. Remove the Heat Shield and Bun Chute. Wash
these items in soapy water, rinse with clear water,
sanitize, and allow to air dry.
3. Wipe down the outside of the toaster with a
slightly damp cloth and allow to air dry.
CLEANING THE RELEASE SHEET
1. Make sure the unit is turned off, the power cord is
unplugged, and the unit is cool. Put on heat resis-
tant gloves. Remove the Release Sheet (Figure
7).
2. Lay the Release Sheet on a clean, flat, dry sur-
face. Apply an appropriate cleanser to a clean,
dry towel.
3. Wipe the towel firmly across the Release sheet
from top to bottom over its entire surface. Repeat
this procedure with a clean, dry towel dampened
with water.
4. Next, wipe the Release Sheet with a clean towel
dampened with sanitizer and allow to air dry.
Repeat Steps 3 through 4 on the reverse side of
the Release Sheet.
5. Remove the front and rear Conveyor Covers
(Figure 4). Wipe the exterior of Conveyor Belt
chains with a clean, sanitized towel.
6. Install front and rear Conveyor Covers (Figure
4) and turn the unit on. Count to 10, then turn
toaster off. Remove the front and rear Conveyor
Covers again and wipe newly exposed section of
the Conveyor Belt chains. Re-install the front and
rear Conveyor Covers.
7. Install the Release Sheet by draping it over both
sides of the Platen with the crease centered
directly on the Platen (Figure 7).
8. Install the Heat Shield (Figure 7). The Heat
Shield clips fit over the tip of the Platen and retain
the Release Sheet in place.
MAINTENANCE
CAUTION
To prevent damage to the unit, do not use abra-
sive cleaners on the release sheet.
Heat Shield
Platen
Release Sheet
Interlock Switch

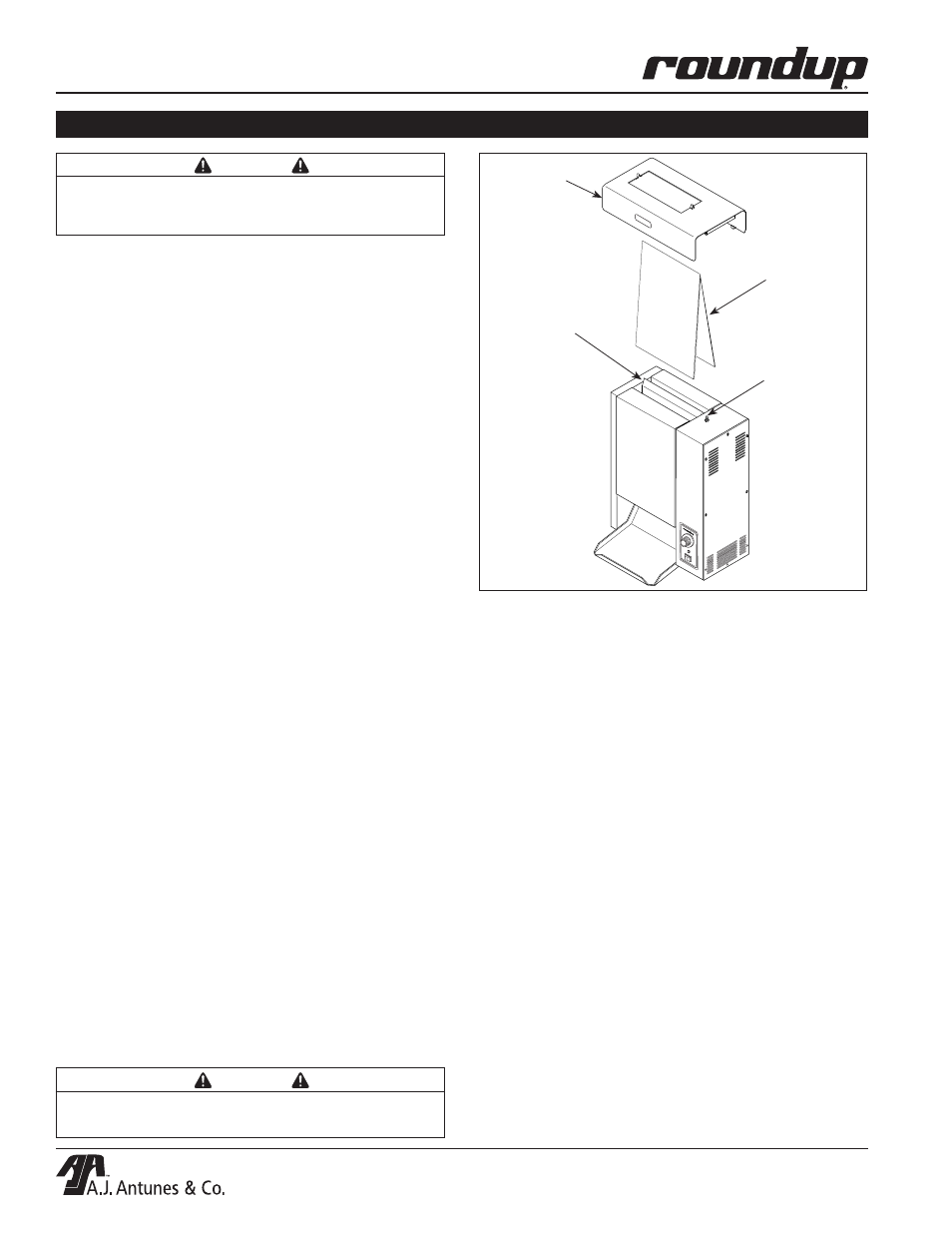

Figure 7. Removing/Installing the Release Sheet
