1. Technical details
Voltage: 220-240V, 50-60Hz
Rated power: 1/4 hp
Final vacuum: 3 x 10-2 mbar
Level of protection: IP 54
Maximum flow: 42 l/min
Working temperature: 0 - 40° C
Weight: 21 kg
System dimensions: 385x295x442 (mm)
Storage Temperature: -25°C / +50°C
Noise level: < 70 dB (A)

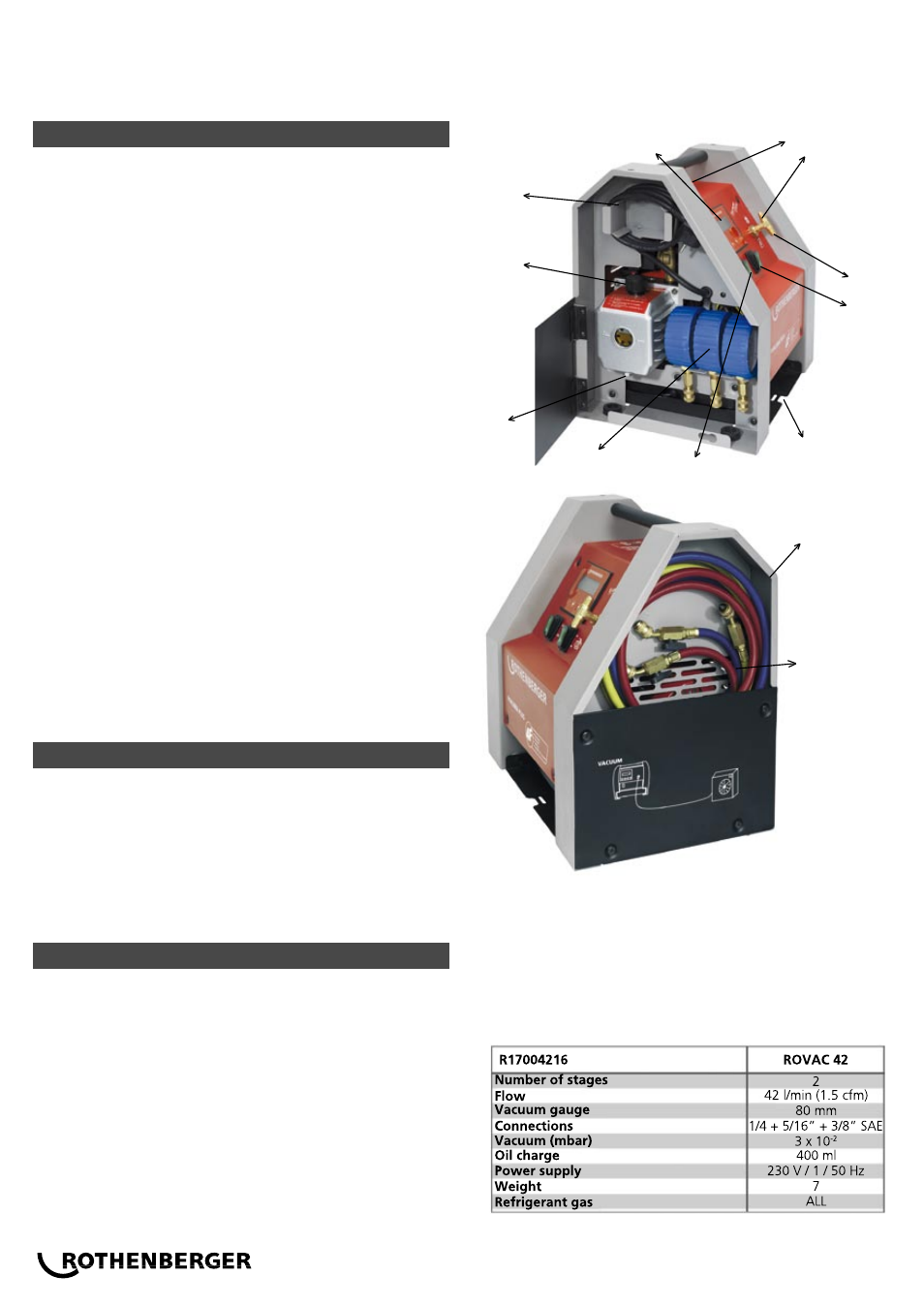

1 Hose connector.
2 Scales.
3 On / Off switch.
4 Pressure gauges
5 Oil drainage cap
6 Oil filler cap.
7 Electric power cable.
8 Control panel.
9 Pressure gauge connector.
10 Capillary tube connection.
11 Flexible tubes.
12 Vacuum pump stop switch.
13 ROREC connection plug (recovery unit).
2. Fields of application
Use is exclusively for the specified purposes
The ROKLIMA PLUS 4F system is designed exclusively
for the filling and emptying of air conditioning units as
indicated.
3. Standard equipment
Considering its small dimensions and ease of transportation,
the unit has been specifically adapted for use on domestic
air-conditioning systems, automatic dispensers, domestic
and commercial refrigerators and dehumidifiers.
Vacuum pump
An essential item for clearing the refrigeration circuit of
the residue of materials used during welding, atmospheric
air, and internal vapour which could form water through
condensation.
The high vacuum pump is of the rotating blade type,
lubricated by oil injection.
Technical characteristics of the vacuum pump:
