The Local Unit (CE-250L)

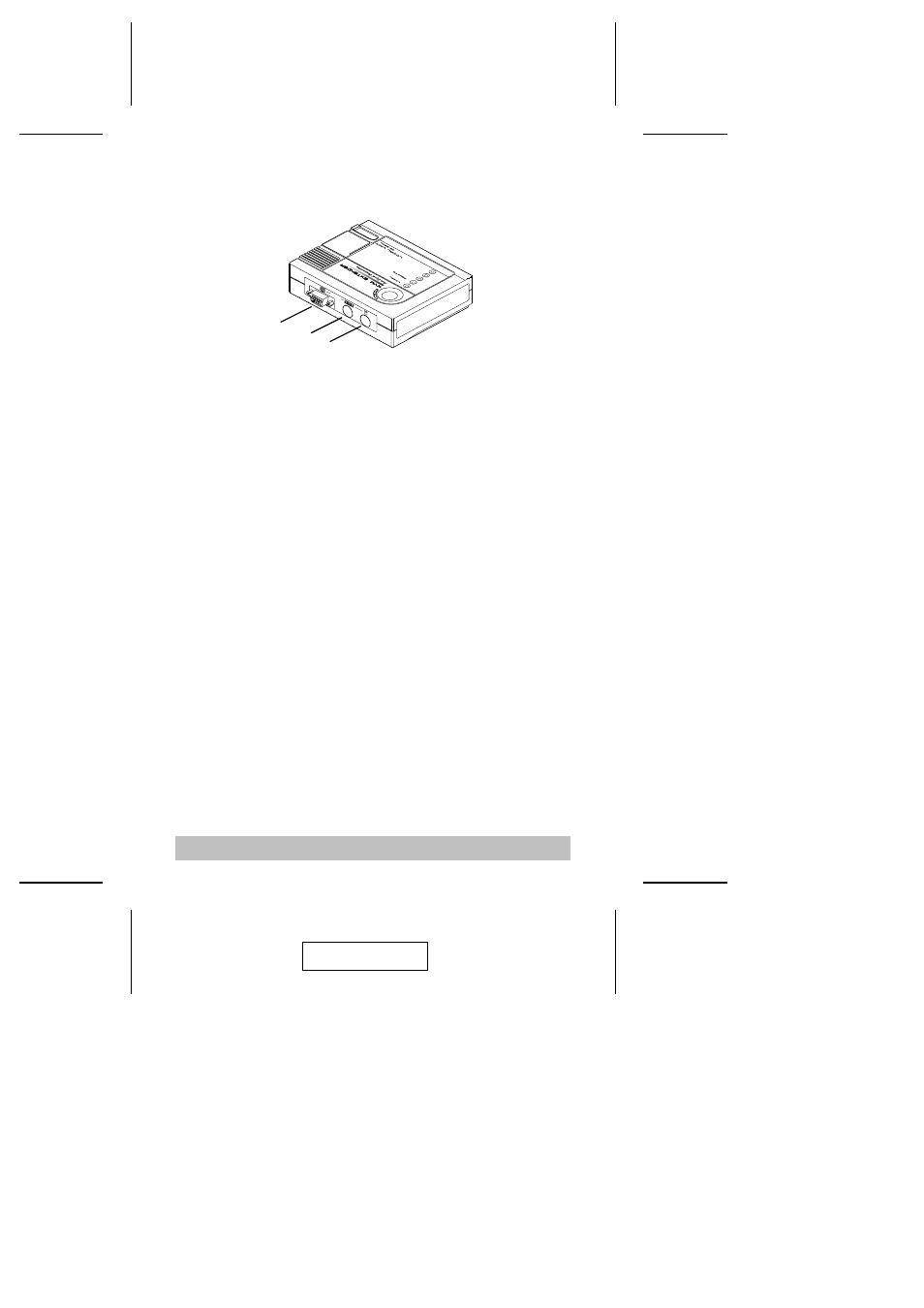

Rear View:
1. Monitor Port
The HDB-15 Video connector of the KVM cable that connects to the
computer’s Video port plugs into this connector.
2. Keyboard Port
The Keyboard connector of the KVM cable that connects to the
computer’s Keyboard port plugs into this connector.
3. Mouse Port
The Mouse connector of the KVM cable that connects to the
computer’s Mouse port plugs into this connector.
Note: If you are combining the CE-250 with a KVM switch, the KVM
cable connects back to the respective ports on the Console
section of the switch.
