Page 14

DATA PLATE

Dimensions

width cm 43.5
height cm 32

depth cm 40

Volume

lt. 56

Electrical
connections

voltage: 220-240V ~ 50/60
maximum power absorbed 2800W

ENERGY LABEL

Directive 2002/40/EC on the label

of electric ovens.

Norm EN 50304

Energy consumption for Natural

convection – heating mode:

Traditional mode

Declared energy consumption for
Forced convection Class – heating

mode: Baking

This appliance conforms to the

following European Economic

Community directives:

-2006/95/EEC of 12/12/06 (Low

Voltage) and subsequent

amendments;

- 2004/108/EEC of 15/12/04

(Electromagnetic Compatibility) and

subsequent amendments;

- 93/68/EEC of 22/07/93 and
subsequent amendments.

- 2002/96/EC and subsequent

amendments.

Electrical connections

Ovens equipped with a three-pole power supply

cable are designed to operate with alternating
current at the voltage and frequency indicated on
the data plate located on the appliance (

see below).

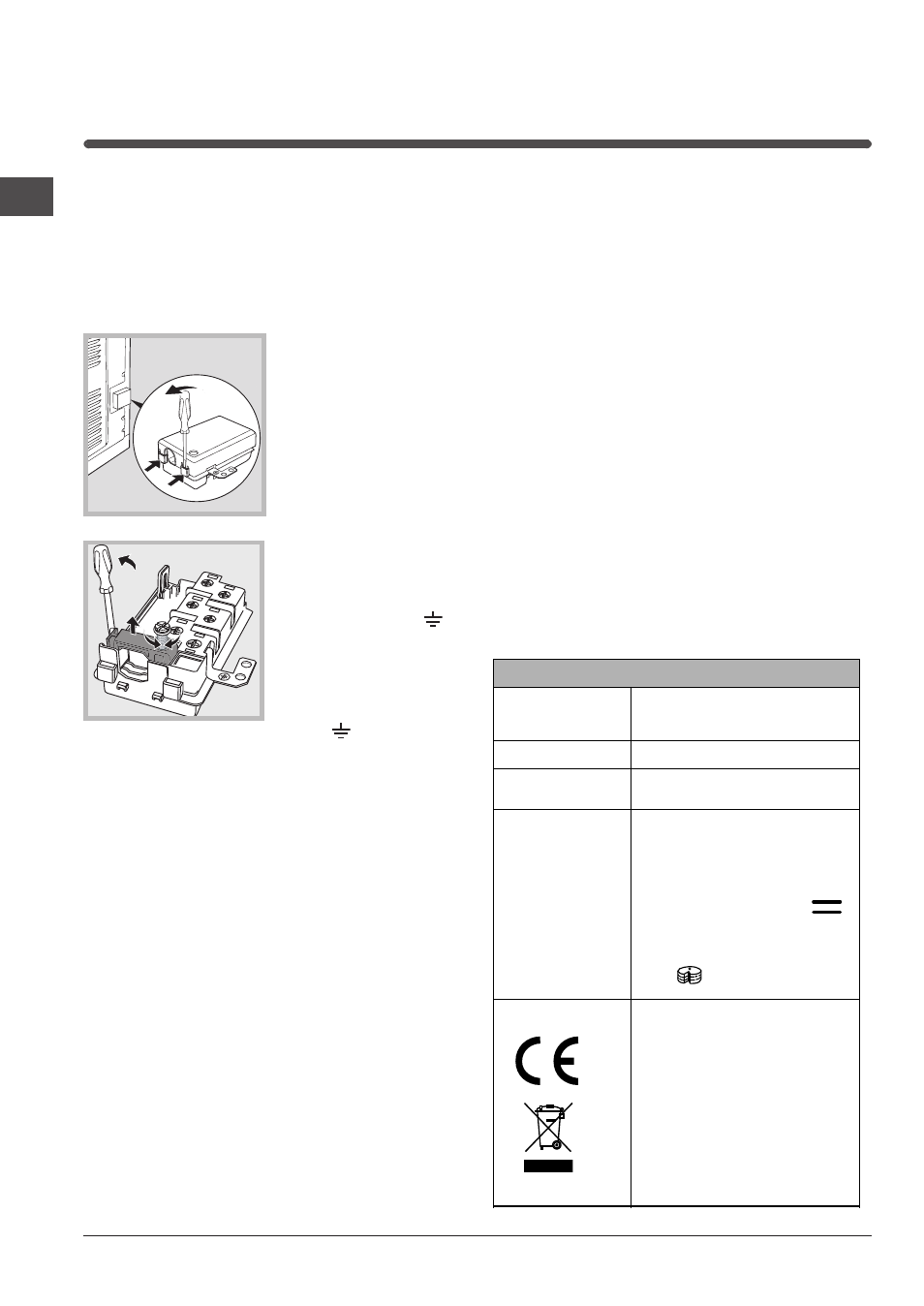

Fitting the power supply cable

1. Open the terminal
board by inserting a
screwdriver into the
side tabs of the cover.
Use the screwdriver as
a lever by pushing it
down to open the cover
(

see diagram).

2. Loosen the cable
clamp screw and
remove it, using a

screwdriver as a lever
(see figure).

3. Remove the wire
contact screws L-N-
, then fasten the wires
under the screw heads,
respecting the colour
code: Blue (N), Brown
(L) and Yellow-Green
Verde (

Connecting the supply cable to the mains

Install a standardised plug corresponding to the
load indicated on the data plate (

see side).

The appliance must be directly connected to the mains
using an omnipolar circuit-breaker with a minimum
contact opening of 3 mm installed between the
appliance and the mains, suitable for the load indicated
and complying with current electrical regulations (the
earthing wire must not be interrupted by the circuit-
breaker). The supply cable must not come into contact
with surfaces with temperatures higher than 50°C.

The installer must ensure that the correct electrical

connection has been made and that it is compliant
with safety regulations.

Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is

compliant with the law.

• The socket can withstand the maximum power of

the appliance, which is indicated on the data
plate (

see below).

• The voltage must be in the range between the

values indicated on the data plate (

see below).

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
not use extension cords or multiple sockets.

Once the appliance has been installed, the power

supply cable and the electrical socket must be easily
accessible.

The cable must not be bent or compressed.

The cable must be checked regularly and replaced

by authorised technicians only (

see Assistance).

! The manufacturer declines any liability should

! The manufacturer declines any liability should
these safety measures not be observed.

these safety measures not be observed.
