Control Knobs for the gas burners

The position of the gas burner controlled by each one of the knobs is shown by a solid ring

•

. To light one of

the burners, hold a lighted match or lighter near the burner and, at the same time, press down and turn the
corresponding knob counter clockwise to the maximum

maximum

setting. Each burner can be operated at its

maximum, minimum or intermediate power. Shown on the knob are the different symbols for off

•

(the knob is

on this setting when the symbol corresponds with the reference mark on the control panel), for maximum

maximum

and minimum

minimum

..... To obtain these settings, turn the knob counter clockwise with respect to the off position. To

turn off the burner, turn the knob clockwise until it stops (corresponding again with the

•

symbol).

Electronic Ignition for the Gas Hob*

This device operates when a slight pressure is applied to the button marked with symbol. To light a specific

Control Panel

burner just press the button while pushing the
corresponding knob all the way in and turning it
counter-clockwise until it lights. For immediate

For immediate

lighting, first press the button and then turn

lighting, first press the button and then turn
the knob

the knob

the knob.
! Should the burner flames accidentally go out,
turn off the control knob and wait at least 1
minute before trying to relight.

Models with Hob Gas Burner Safety Devices to
Prevent Leaks *

These models can be identified by the presence of
the device itself.
! Since the hob burners are equipped with a safety
device, you must hold the control knob in for about
3-7 seconds after the burner has been lighted to
allow the gas to pass until the safety thermocouple
has heated.

Timer *

To use the timer, the buzzer must be wound up by
turning the knob one full turn clockwise; then turn it
back to the desired time so that the number of
minutes on the knob matches the reference mark on
the panel.

* (only available on certain models)

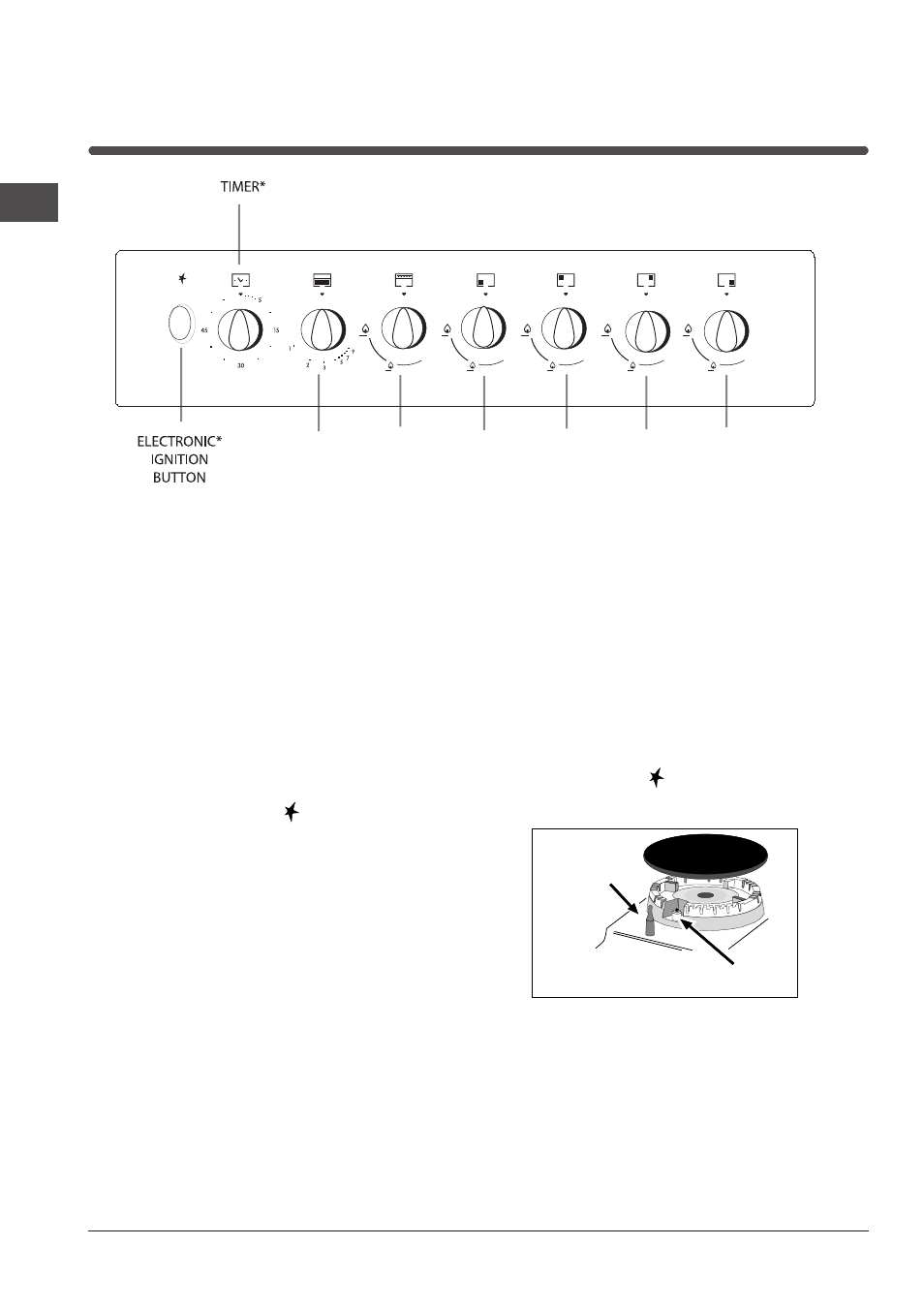

HOB GAS BURNER
SAFETY DEVICE

ELECTRONIC
LIGHTING DEVICE

GRILL

MAIN
OVEN

LEFT

FRONT

BURNER

RIGHT

REAR

BURNER

LEFT

REAR

BURNER

RIGHT

FRONT

BURNER
