© ScyTek Electronics 2002 Astra 600 r1 11/02
Brown Starter Defeat
Brown Starter Defeat
Shock Sensor
Optional Sensor
Valet Switch
LED
Blue/White Passenger Unlock output (-)
Black/White Dome Light output (-)
White Parking light output (built-in relay)
Green Door Trigger input (-)
Violet Door Trigger input (+)
White/Red Auxiliary 2 outout (-)
Orange Armed output (-)
Brown Siren output (+)
Yellow Ignition +12V
Blue Hood/Trunk input (-)
Gray Auxiliary 1 output (-)
Black/Yellow Auxiliary 3 output (-)
Brown/White Horn output (-)
Black Ground
Red +12V
White Unlock relay 87a (Normally Closed)
Blue Unlock relay 30 (Common)
Violet Lock/Unlock relays 87 (Normally Open)
Green Lock relay 30 (Common)
Brown Lock relay 87a (Normally Closed)

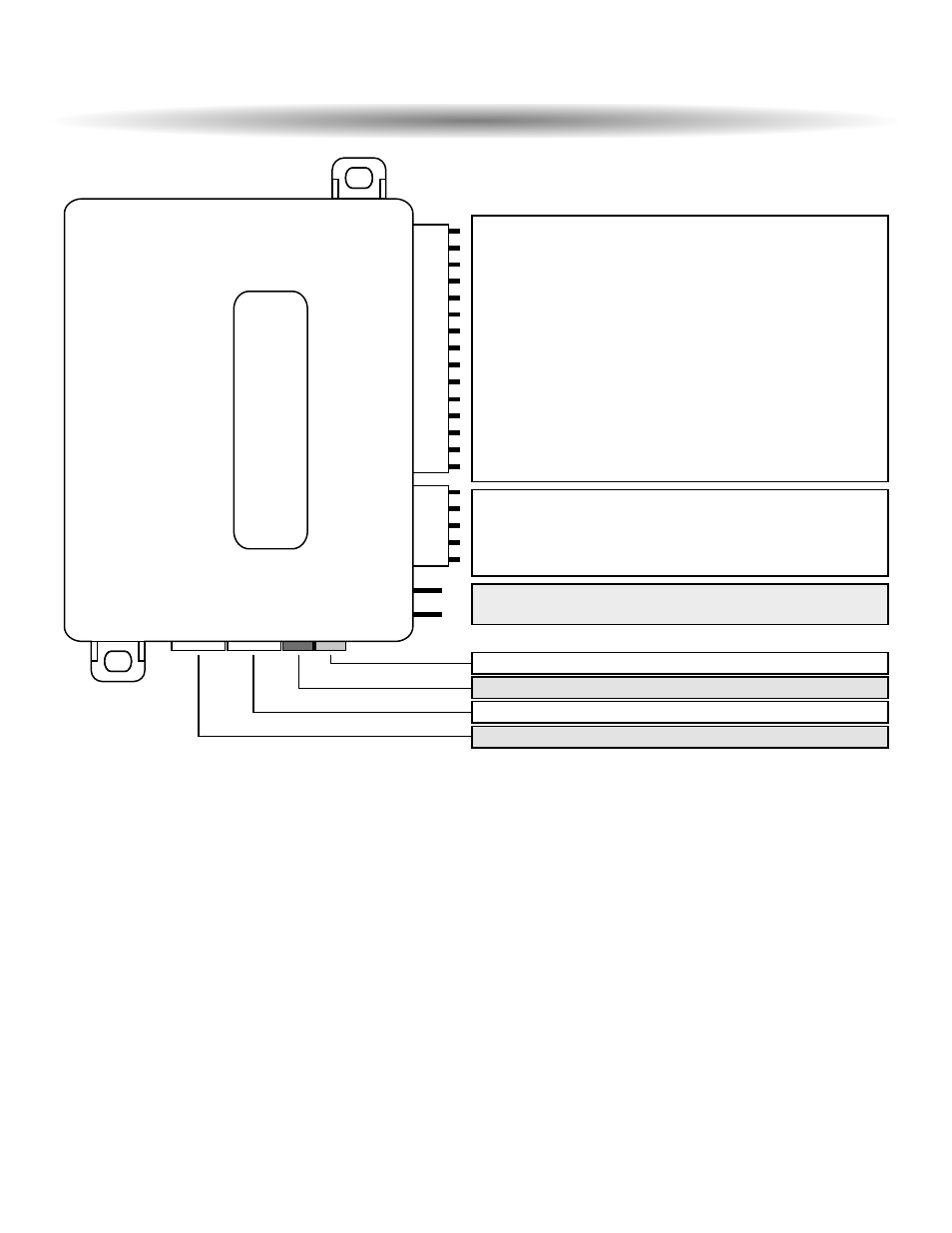

Wiring D Diagram
