Installing the Remote Battery
www.3ware.com 23
10 Insert the battery power connector into the power receptacle on
the BBU control module.

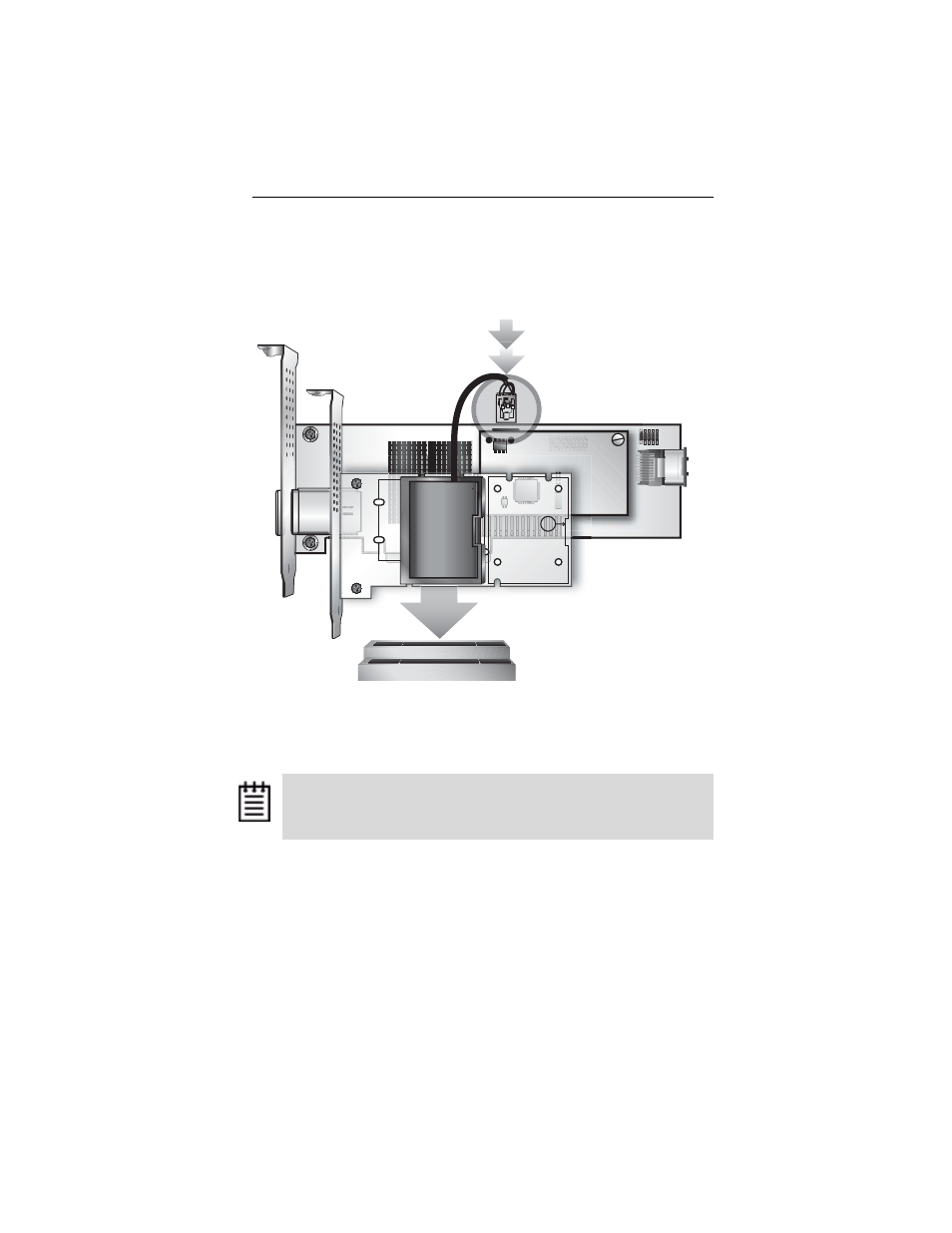

Figure 16. Inserting the boards and connecting the battery
power to the BBU control module
If you need a longer cable on the power connector, use the
extension cable to connect the battery to the power receptacle
on the BBU.
Note: The battery will drain if it is plugged into the BBU and there
is no power to the unit. Wait to plug the battery into the BBU until
the system is ready for use.
