AMCC 3WARE 9690SA User Manual
Page 25
Installing the Remote Battery
www.3ware.com
21
3
Select the battery location on the remote battery board.
The battery can be mounted in 3 different positions, as marked
on the board (see Figure 14). Use the position that will make it
easiest to connect the battery power cable to the BBU control
module on the 3ware RAID controller.
Note:
You can mount a second battery on the board, if you have
another controller.

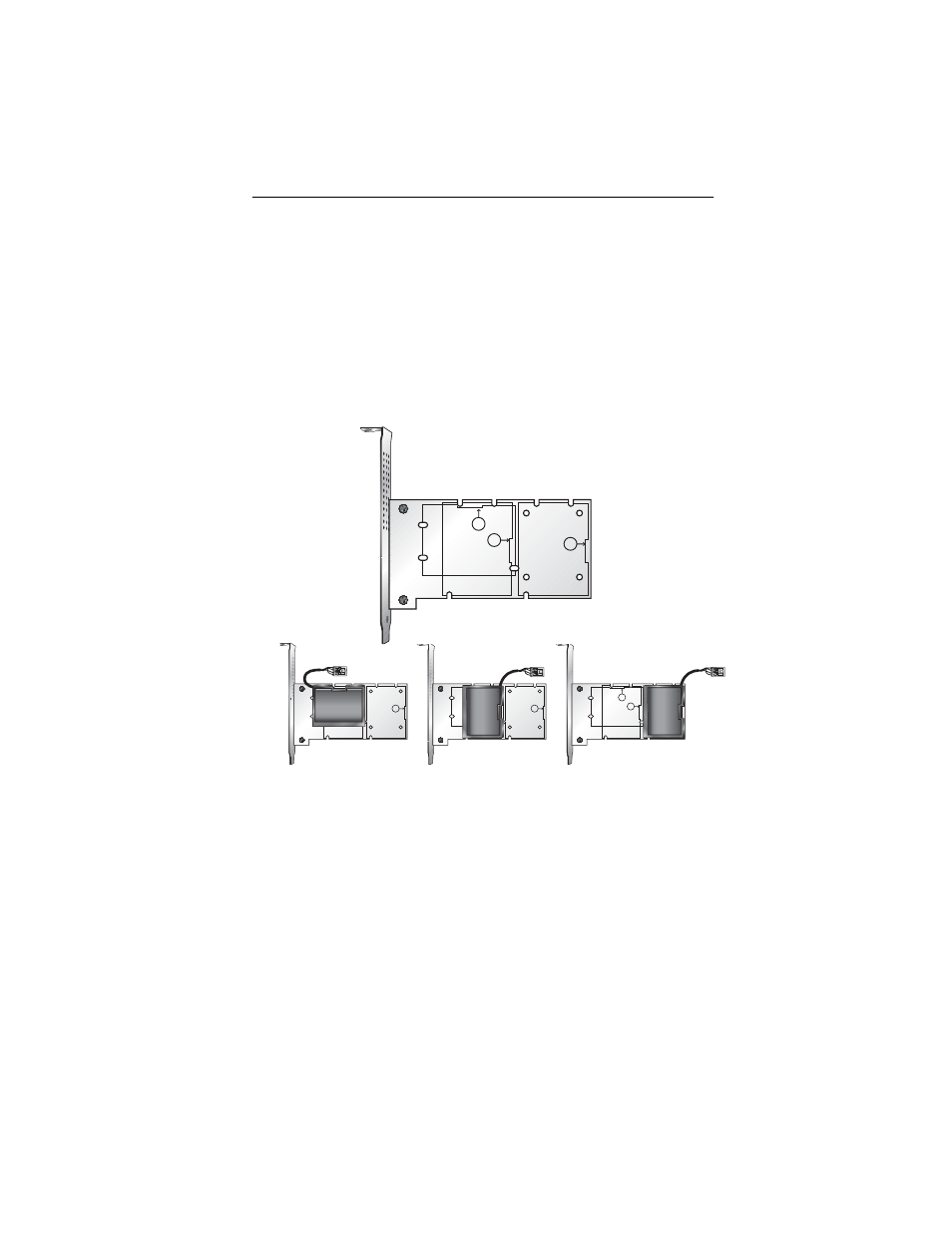

Figure 14. Three locations for mounting battery on remote board
1
2
3
2
2
2
3
3
3
1
1
1
1
2
3
2
2
2
3
3
3
1
1
1
1
2
3
2
2
2
3
3
3
1
1
1
1
2
3
2
2
2
3
3
3
1
1
1
1
2
3
1
2
3
2
2
2
3
3
3
1
1
1
