Argus Camera DC2200 - Manual (Page 14)

User Guide for DC2200
13

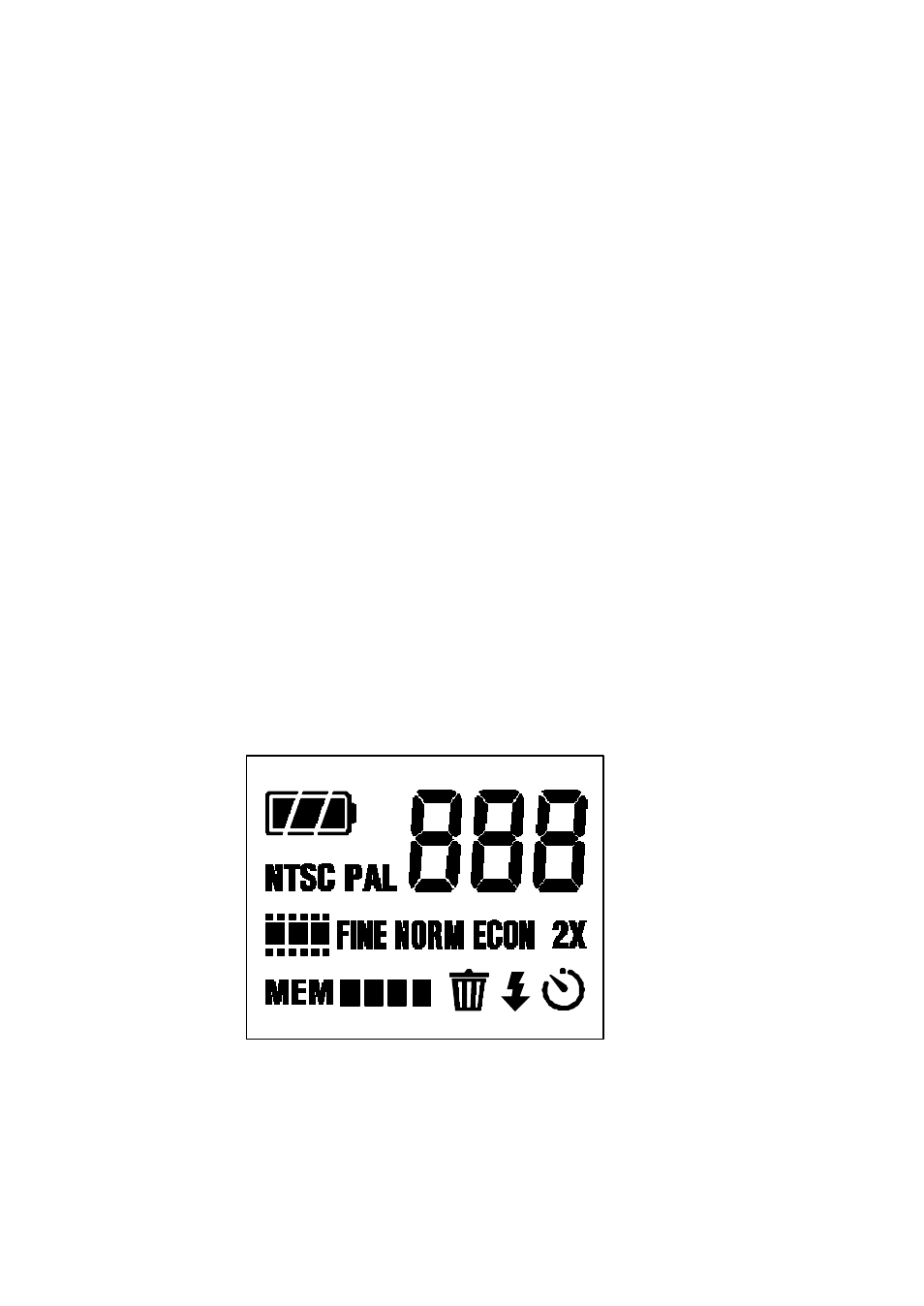

Status LCD display
Icons in the status LCD :
Battery icon : 2 Levels of power input
3-digit 7 segment display : Count Up from 0 to 999. (if over 999, it will show 999)
NTSC, PAL : TV system selection
Movie icon : Show movie mode.
FINE , NORM, ECON : Photo Quality
2X : Zoom function for TV mode.
MEM icon : It will blink if the memory is full.
Memory blocks : Total 4 blocks to show the approximate memory size left.
Flash strobe icon : It is on if auto flash is selected.
Rubbish bin icon : It will blink if you select it to erase all the memories.
Timer icon : It will be on if you press the Select button in the Record mode.
Messages shown on the 7-segment display :
FEA Camera modes selection.
bSY Busy signal. The unit is doing task. Wait until it disappears.
PC It is seen if you connect the unit to the PC/Mac with the USB cord.
