Step 6 (Optional)
If using a serial mouse cable (optional), connect one end to a DB-9 serial port on the computer, and
the other Mini Din 6 pin end to the mouse cable connector. If you need Serial DB-9 to PS/2 Mini Din 6
pin adapter, please contact your supplier.
Step 7
Double-check all of the connections. You can check the color of keyboard and mouse connector to
make sure the keyboard and mouse cables go to the correct ports.
Step 8
Repeat step 5 to 7 for the remainder of the computers.
Step 9

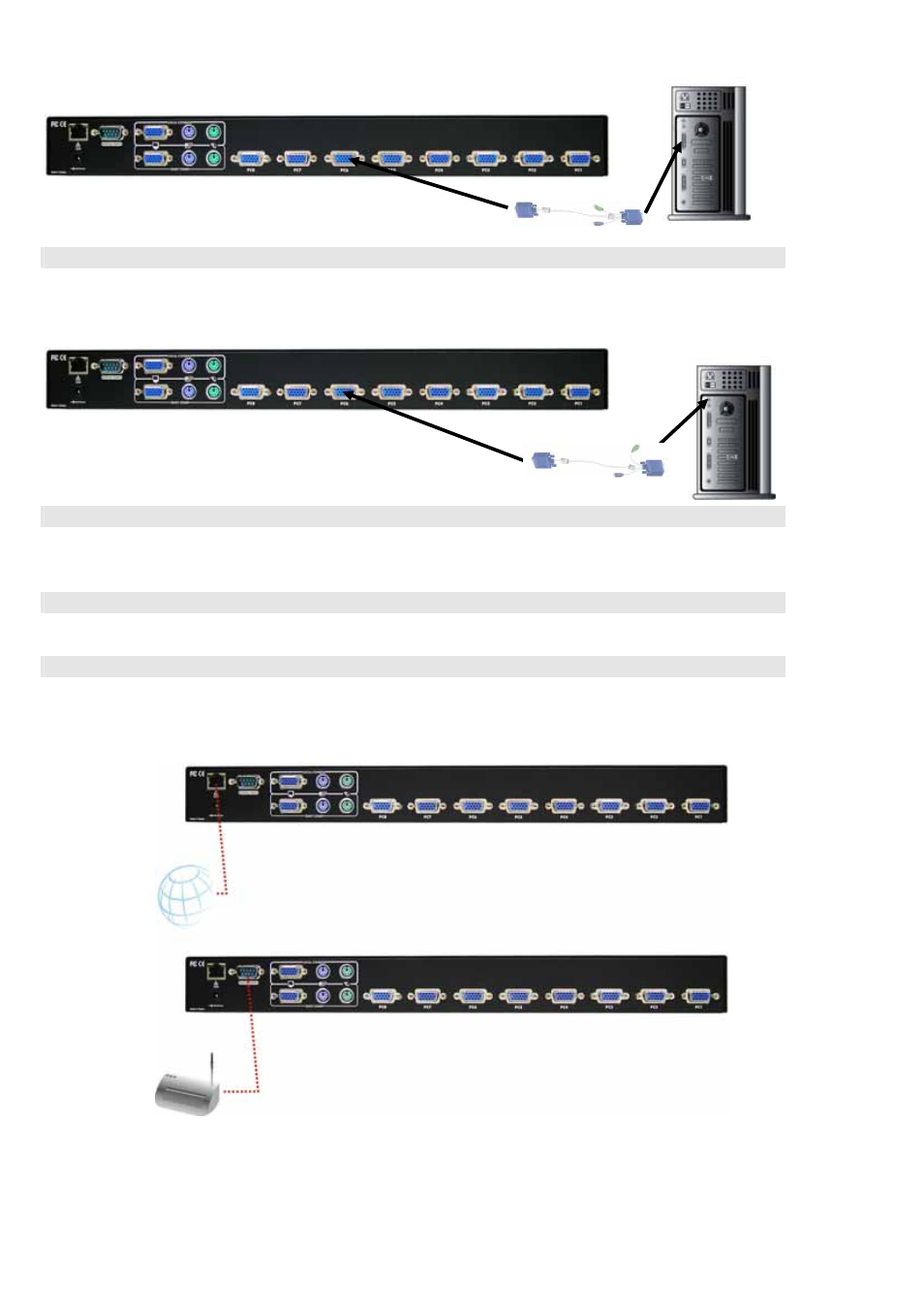

Connect the Ethernet and/or modem, ISDN, depending how you want to access PS/2 IP-KVM switch.
The rear side of PS/2 IP-KVM switch provides a RJ-45 connector for Ethernet. The connector is used
either for a 100 Mbps 100BASE-TX connection or for a 10 Mbps 10BASE-T connection. The adapter
can sense the connection speed and will adjust to the appropriate operation mode automatically.
10 Mbps Connection
The Rear Side of
INTERNET
Mode
