1 Description
AC/DC switching mode power supplies provide 90 Watts of Max output power
2 Specification
1.Input:100-240V
2.Output Voltage: 15V/16V/18V/19V/20V DC at 4.5 A max
3.USB Output: 5V-2A
4.With 10 output pin can use for mostly netbook/Laptop models.
3 Test Circuit

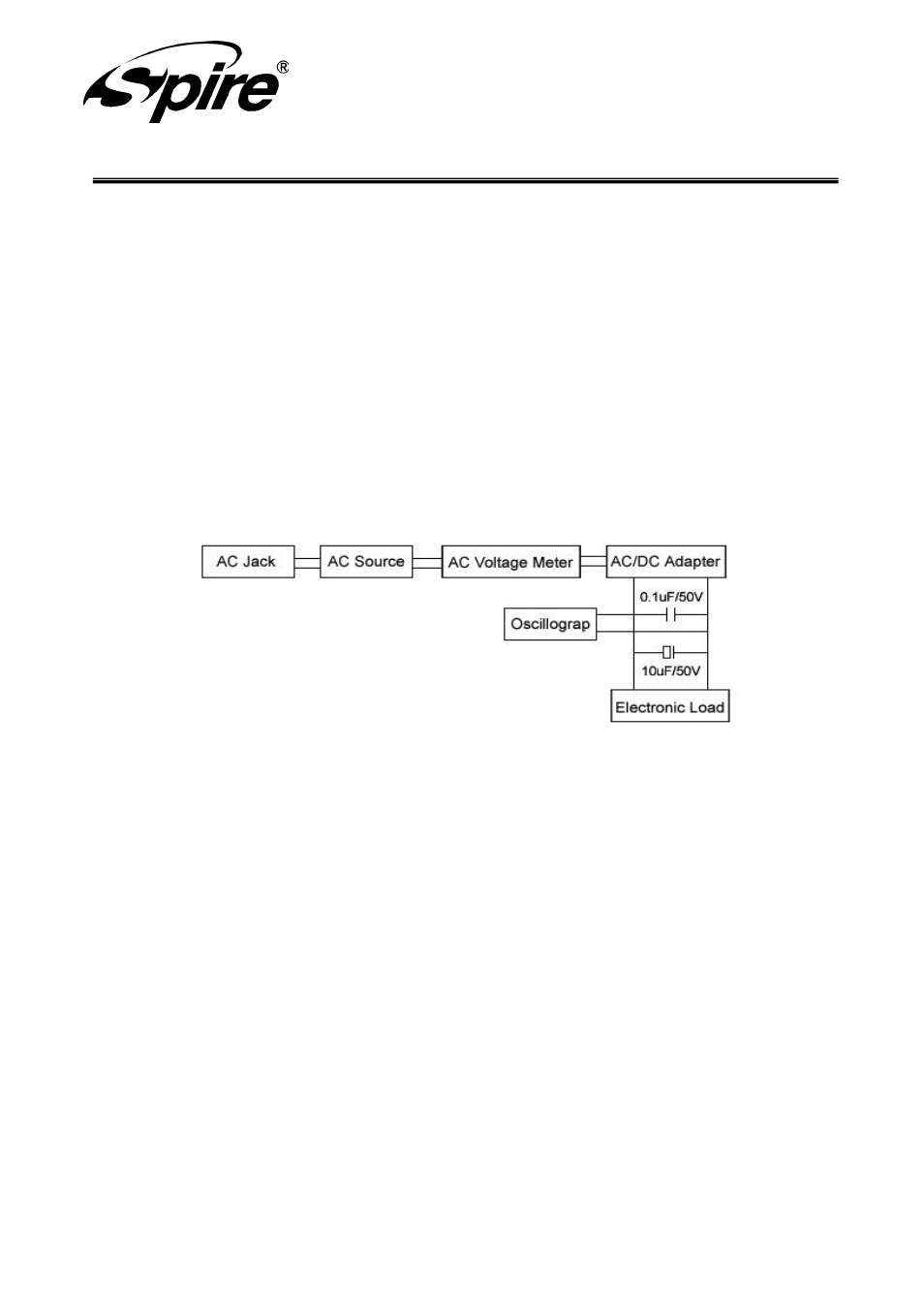

If the test is to be made on a specified circuit, be sure to use the following circuit.
4 Input Characteristics
4.1 Input Voltage:
Nominal Voltage:100-240Vac
Variation Range :90-264Vac
4.2 Input Frequency:
Nominal Frequency:50/60Hz
Variation Frequency:47-63Hz
