6
KNOW YOUR TILLER
READ THIS MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.
Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save
this manual for future reference.
These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.

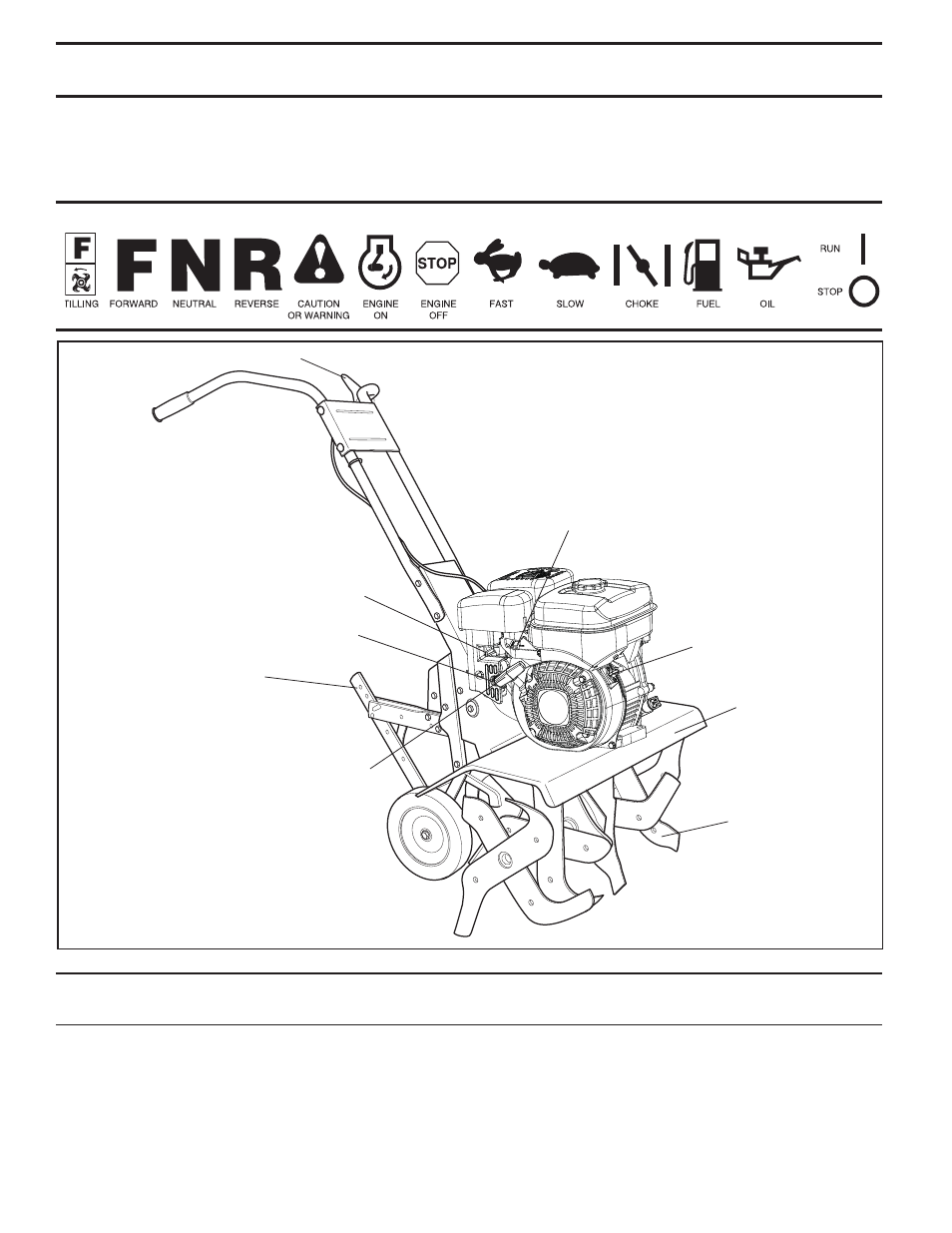

Fig. 4
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
CHOKE CONTROL - Used when starting a cold engine.
DEPTH STAKE - Controls forward speed and the depth at
which the tiller will dig.
ENGINE ON/OFF SWITCH - The engine switch enables
and disables the ignition system.
FORWARD TINE CONTROL - Engages tines in forward
direction.
OPERATION
FUEL VALVE - The fuel valve opens and closes the pas-
sage between the fuel tank and the carburetor.
RECOIL STARTER HANDLE - Used to start the engine.
direction.
THROTTLE CONTROL - Controls engine speed.
DEPTH STAKE
TINE SHIELD
FORWARD TINE CONTROL
TINES
THROTTLE CONTROL
CHOKE CONTROL
ENGINE SWITCH
FUEL VALVE
RECOIL STARTER
