3. ASSEMBLY DRAWING

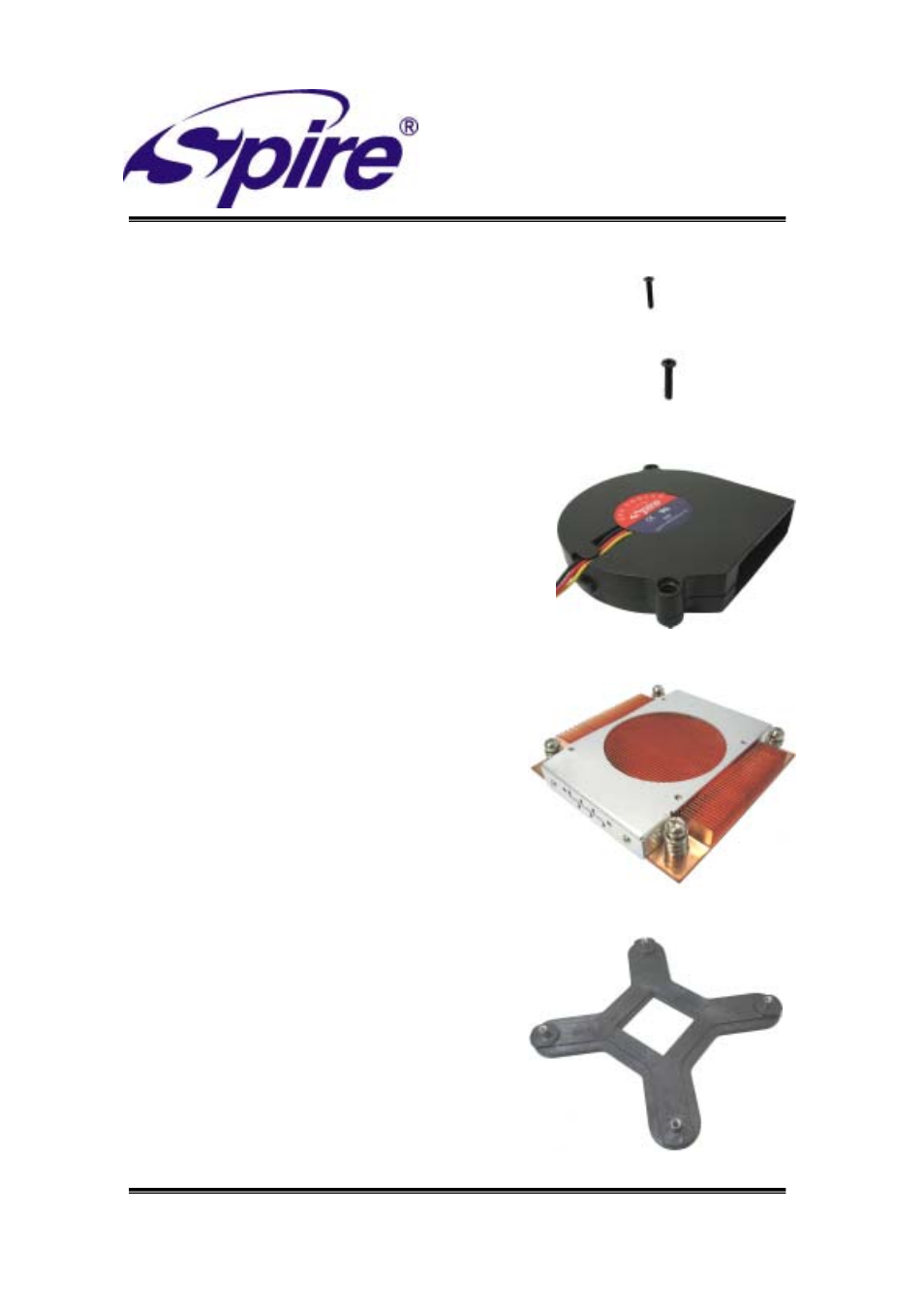

MATERIALS

3.1 HEAT SINK: 0604574-1A

3.2 ALUMINUM COVER: 0604575-31

3.3 CLIP: 0608009+0607181-2

3.4 FAN: FD07015C1H3-Blower

3.5 BACKPLATE: 0306168

SCREW: 18*2.7-4 (DRAWING OMIT)

Electrical Performance

z OPERATING VOLTAGE RANGE = 10.2-13.8VDC
z RATED SPEED = 4200RPM ± 10％
z RATED POWER = 3.6W

Mechanical Characteristics

z NOISE LEVEL = 31.8dB(A)
z OPERATION TEMPERATURE = -10~70 Deg. C
z COOLER WEIGHT = 456.0g
