Ariens 924551 - 8524 - Manual (Page 23)

GB - 23
Smooth and easy rotation of properly
lubricated chute with crank is obtained by
adjusting pinion and chute gear teeth so they
mesh together.
RUNNERS
Runners should be adjusted (Figure 15) as
conditions require.
1. Position unit on a hard, flat, smooth level
surface.
2. Adjust runners by inserting a spacer of
desired thickness under center of scraper
blade, loosen runner hardware, slide
runners to flat surface. Allow 1/8 in.
(3 mm) between scraper blade and hard
smooth surfaces. Allow 1-1/4 in. (30 mm)
between scraper blade and uneven or
gravel surfaces. Retighten hardware.
NOTE: Keep housing level by adjusting
runners equally.
SCRAPER BLADE
IMPORTANT: Damage to auger/impeller
housing will result if blade wears down too far.
Scraper blade is adjustable to compensate for
wear.
To adjust scraper blade:
1. Tip unit back onto handlebar, support
housing and loosen nuts retaining blade.
2. Adjust runners to fully raised position
(housing closest to ground).
3. Reposition scraper blade flush with
runners and tighten lock nuts.
SHEAR BOLTS
IMPORTANT: Use only Ariens shear bolts for
replacement. Use of any other type of shear
bolt may result in severe damage to unit.
Occasionally a foreign object may enter the
auger/impeller housing and jam the auger,
breaking shear bolts (Figure 16) which secure
the auger to the shaft. This allows auger to
turn freely on the shaft preventing damage to
gear drive.
For Replacement:
1. Slide auger outward against roll pin and
align hole in shaft with hole in auger
(holes in shaft for roll pins and shear bolts
line up).
2. Drive shear bolt through hole (if shear bolt
was broken this will drive remaining part
from shaft).
3. Secure shear bolt with nut.

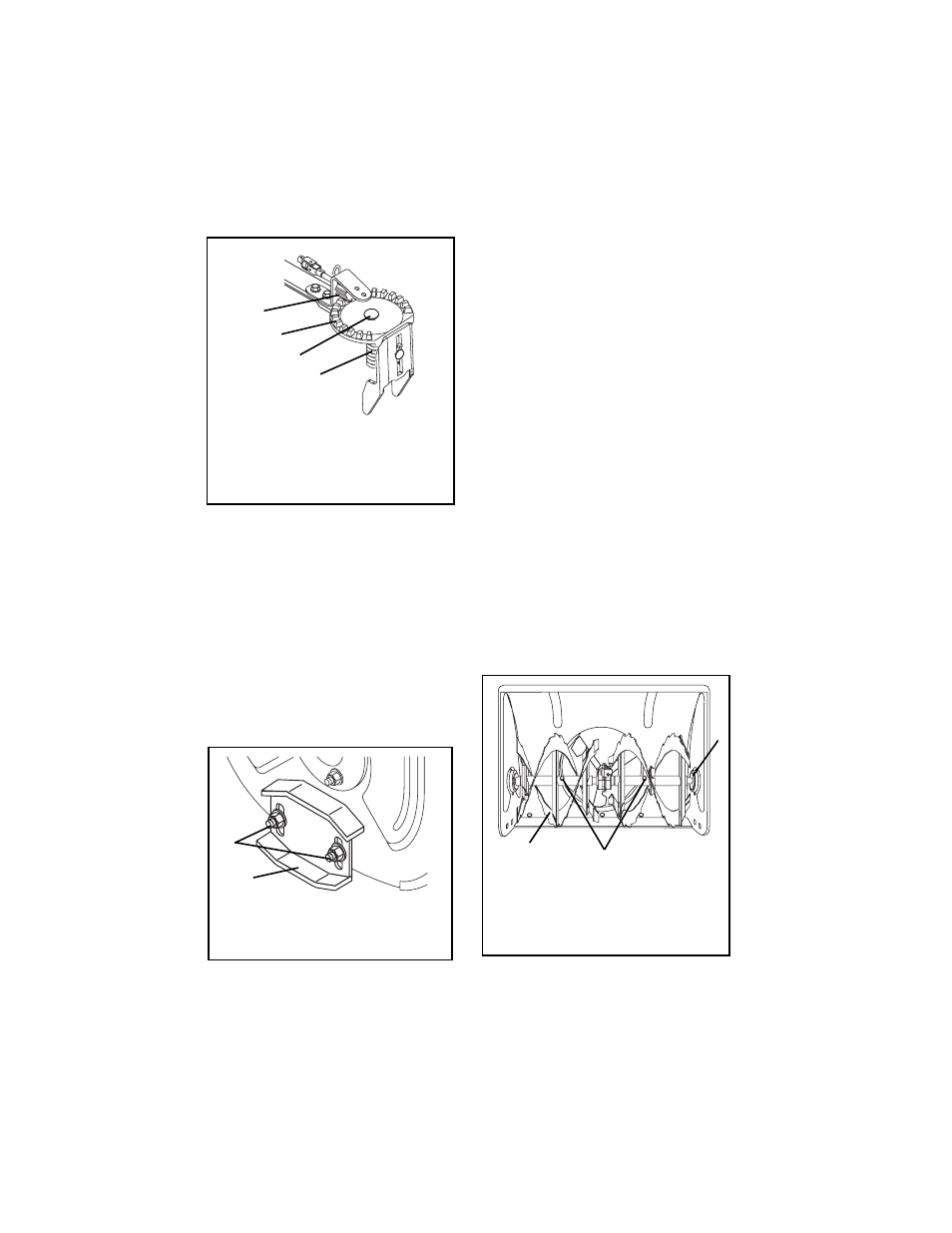

Figure 14
1. Pinion
2. Chute Gear
3. Carriage Bolt
4. Spring
DS0113
1
2
3
4
Figure 15
1. Runner
2. Runner Hardware
1
2
Figure 16
1. Auger
2. Shear Bolts
3. Roll Pin
1
2
3
OS0402
