Connections
SVT-5 PRO Bass Amplifier

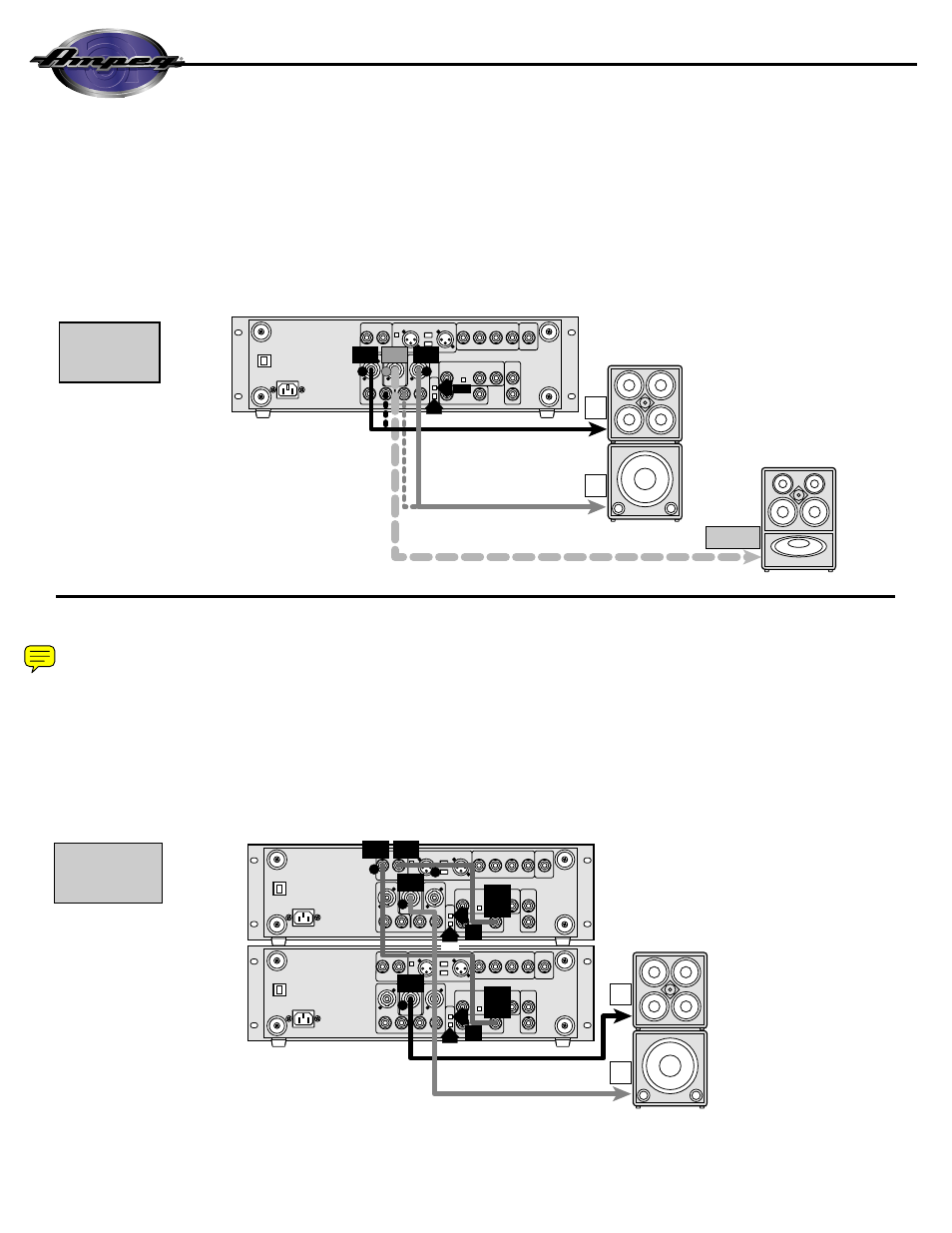

BIAMP - Highs / Lows: One of the SVT-5 PRO’s internal amplifiers will power a high frequency cabinet, the other will power a low frequency cabinet.
• Full Range/Biamp switch depressed (biamp), Stereo/Mono switch out (stereo)
• Connect a heavy duty speaker cable ( ) from the SVT-5 PRO’s Power Amp A jack to the input of a low frequency speaker cabinet
• Connect a heavy duty speaker cable ( ) from the SVT-5 PRO’s Power Amp B jack to the input of a high frequency speaker cabinet
– OR –
• Connect a heavy duty four-conductor speaker cable ( ) from the SVT-5 PRO’s Mono Bridge/Biamp Speakon
® jack to the input of a biamp-equipped speaker cabinet
• Speakon ® pin 1 + = low “+,” pin 1– = low “–,” pin 2+ = high “+,” pin 2– = high “–”
SVT-5 PRO
TO
INPUT
JACK
TO
INPUT
JACK
HIGH FREQ.
CABINET(S)
LOW FREQ.
CABINET(S)
TO
"BIAMP MODE"
SPEAKON ® JACK
BIAMP-
EQUIPPED
CABINET
OUT
IN
(STEREO)
1 2 3
(BIAMP)
PWR
AMP B
BIAMP PWR
AMP A
Biamp -
Highs / Lows
BIAMP WITH A SECOND AMP: The SVT-5 PRO’s two internal amplifiers will each power a low frequency cabinet. A second amplifier will power a
high frequency cabinet.
• Full Range/Biamp switch out (full range), Stereo/Mono switch depressed (mono)
• Connect a signal cable ( ) from the SVT-5 PRO’s Biamp High Output jack to the input jack of the second power amp
• Connect a signal cable ( ) from the SVT-5 PRO’s Biamp Low Output jack to its Amp A Power Amp Input jack
• Connect a heavy duty speaker cable ( ) from the second power amp’s Speaker Output jack jack to the input of a high frequency speaker cabinet
• Connect a heavy duty speaker cable ( ) from the SVT-5 PRO’s Mono Bridge jack to the input of a low frequency speaker cabinet
• Speakon
® pin 1 + = signal “+,” pin 2+ = signal “–”
SVT-5 PRO
SVT-5 PRO
OR OTHER
POWER AMP
TO
INPUT
JACK
TO
INPUT
JACK
HIGH FREQ.
CABINET(S)
LOW FREQ.
CABINET(S) IN
OUT
(MONO)
4
3
2
(FULL
RANGE)
MONO
BRIDGE
AMP A
PWR
AMP
INPUT
IN
OUT
(MONO)
1
(FULL
RANGE)
MONO
BRIDGE
BIAMP
HI OUT
BIAMP
LO OUT
AMP A
PWR
AMP
INPUT
Biamp with a
Second Amp
7
Use the Crossover Frequency control (#28)
to set the crossover point for the high and
low outputs.
Use the Crossover Frequency control (#28)
to set the crossover point for the high and
low outputs.
