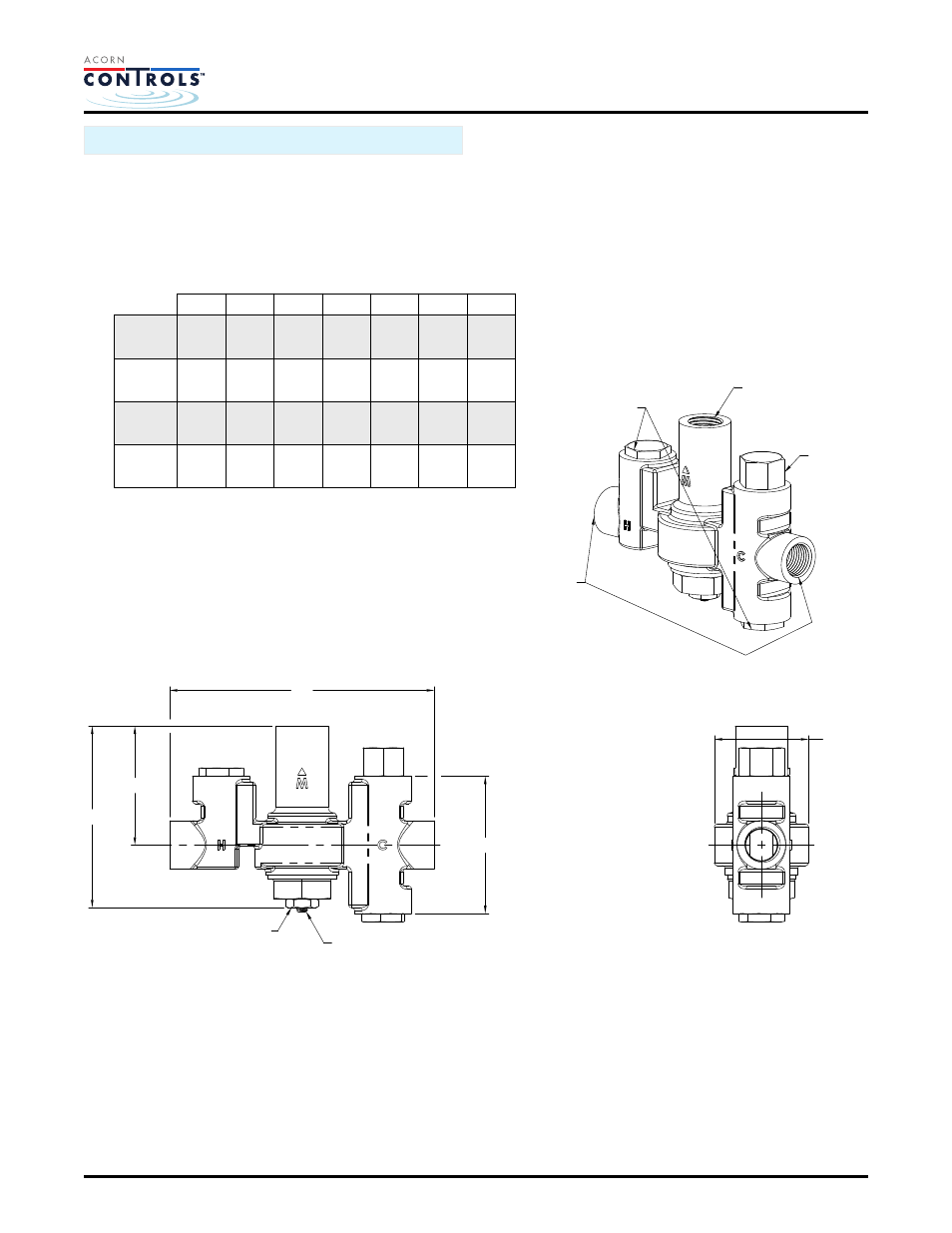

ROUGH-IN DIMENSIONS:
NOTE;
ALL DIMENSIONS ARE IN INCHES (MM).
Acorn Controls
Division of Acorn Engineering Company
®
, A member of Morris Group International
™
Manual #7802-113-000
Date: 04/01/14
ET71-1
5-3/4"
(146)
8-1/2"
(216)
2-5/8"
(67)
4"
(102)
3"
(76)
2"
(50)
1/2"
14"
(356)
14"
(356)
ET71-2
ET71-3
ET71-4
INLET
"A"
"B"
"C"
"D"
"E"
OUTLET
1/2"
NPT
NPT
3/4"
1"
NPT
NPT
1"
1-1/4"
NPT
NPT
1-1/4"
1-1/2"
NPT
NPT
3"
(78)
5-1/4"
(132)
5-1/4"
(132)
5-1/2"
(141)
8-3/4"
(222)
8-3/4"
(222)
4-1/4"
(107)
6-1/4"
(160)
6-1/4"
(160)
3"
(78)
5-3/4"
(145)
5-3/4"
(145)
"B"
"C"
"D"
LOCKNUT
TEMPERATURE
ADJUSTING STEM
"E"
"A"
INTEGRAL
CARTRIDGE
STYLE CHECKS
INTEGRAL
BY-PASS
SUPPLY
INLETS
OUTLET
