Installation
(For Qualified Installers Only)
1 9
© Travis Industries
4070806
1 0 0 - 0 1 1 9 1 _ 0 0 0

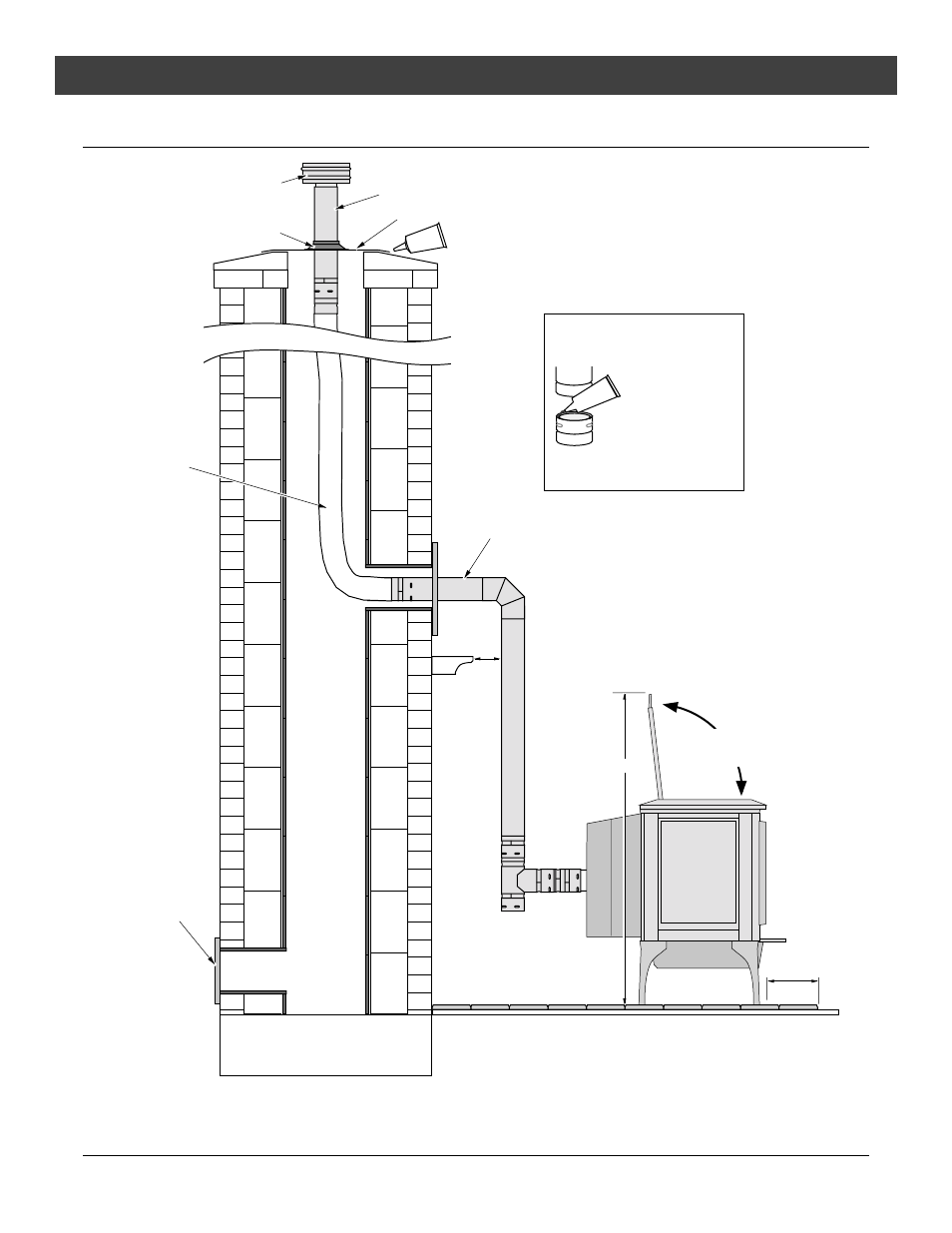

Installation Example: Freestanding Masonry Chimney
6” Min.
Allow room for the
hopper lid to open
44”
“L” Vent
Sections
“L” Vent
Storm Collar
Vertical Cap
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.
3”
Minimum
Clean-Out Access
Seal each vent
section (including
adapters, elbows,
etc...) by injecting a
liberal amount of
500° F. RTV
silicone into the gap
between sections.
500
° F. RTV
Silicone
“L” Vent Flex
Section
